Microzone Mc6C 2.4G 6Ch Controller Transmitter Receiver Radio System for Rc Airp

Attention:

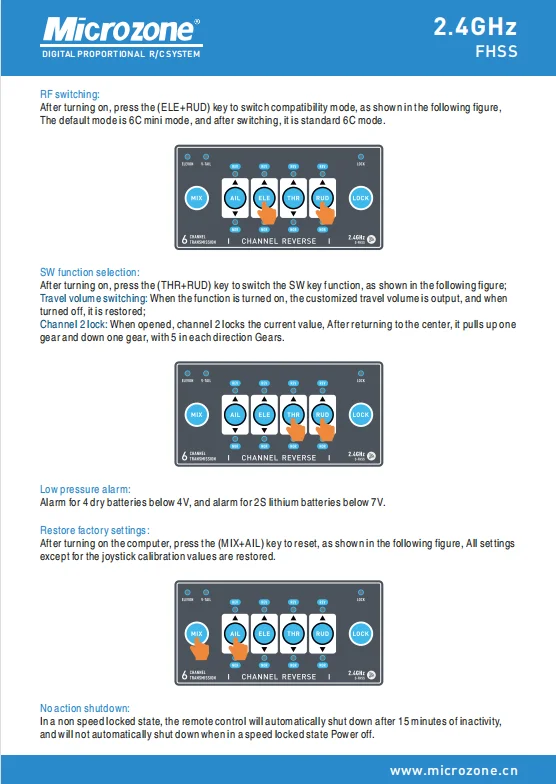

The manufacturer of this remote control no longer has a configuration manual

If you need an instruction manual, you can come to our product details page to view it

Or contact our customer service to send you a PDF file

If you mind, please do not place an order

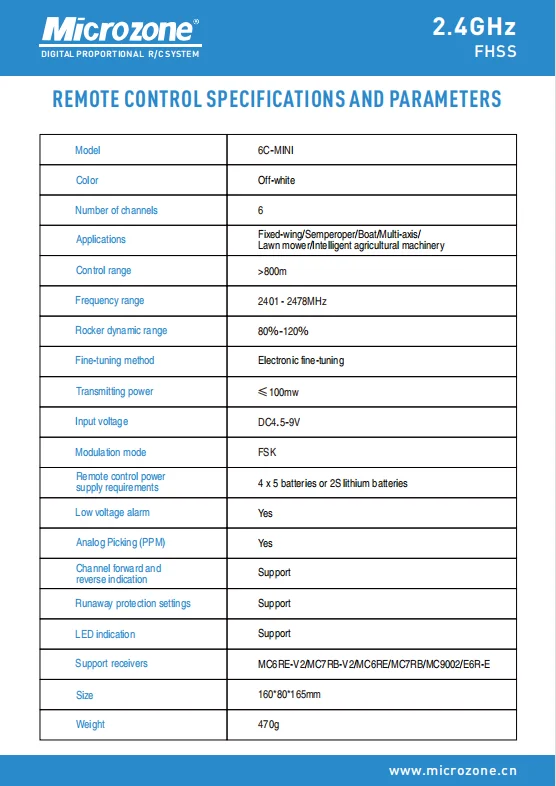

Channel: 6
Color: Black / Silver
Suitable model: fixed wing model airplane, UAV, vehicle, ship.
RF range: 2401MHZ---2479MHZ
RFpower: less than 100MW
Working current: less than 120MA
Working voltage: 4.5--8.5V
Modulation mode: FSK
Sensitivity: 1024

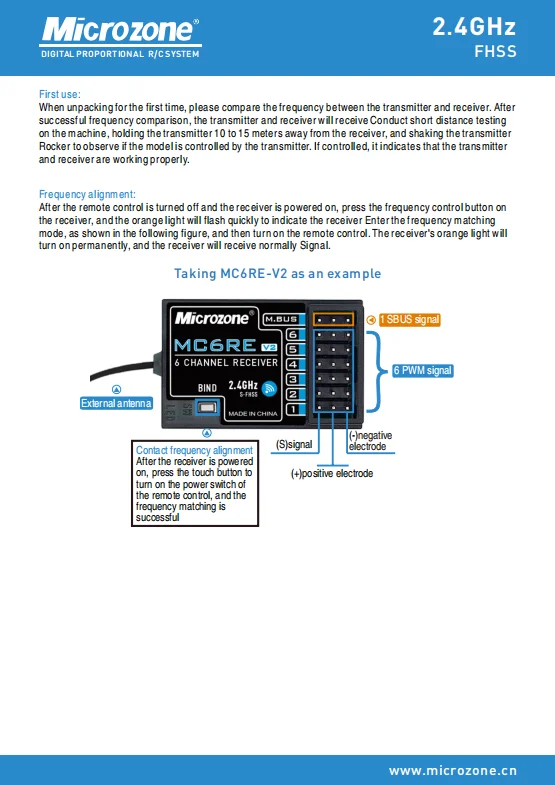

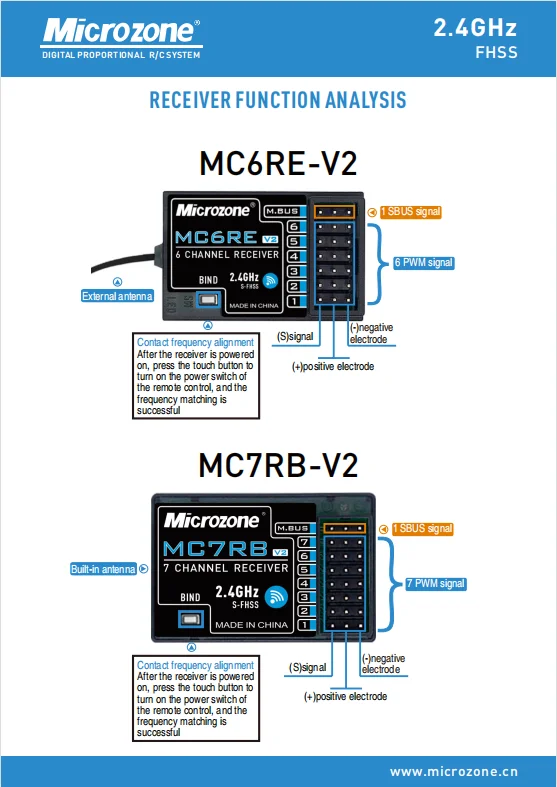

Signal output: 6 PWM signals and 1 SBUS signals.
Analog and external power supply (not more than 8V): YES
Low voltage alarm mode: LED indicator and buzzer alarm at the same time.

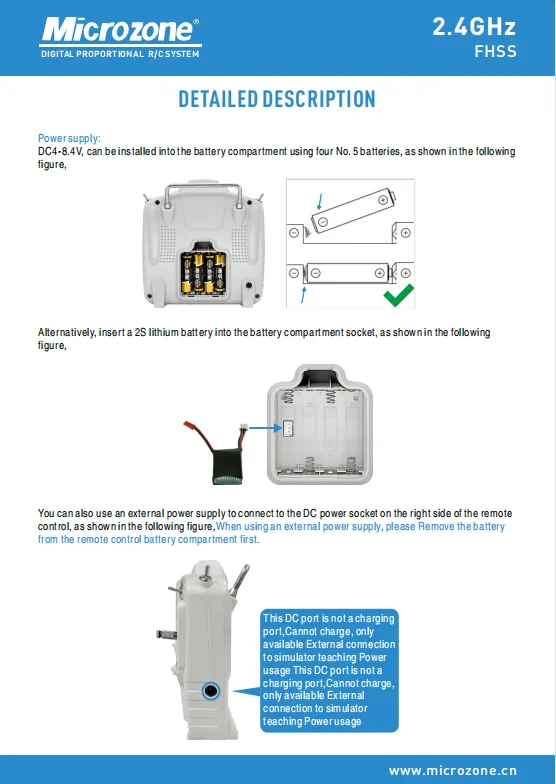

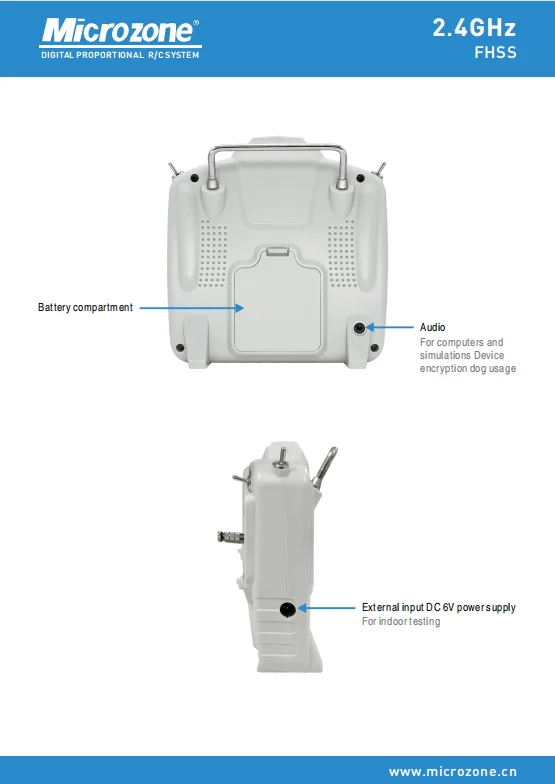

Power : 6V 1.5AA*4
Adopt the latest FHSS mode in line with European standards.
authentication standards: fcc, _ red
Package size: 160MM*80MM*165MM
Weight (gross weight): 470G
