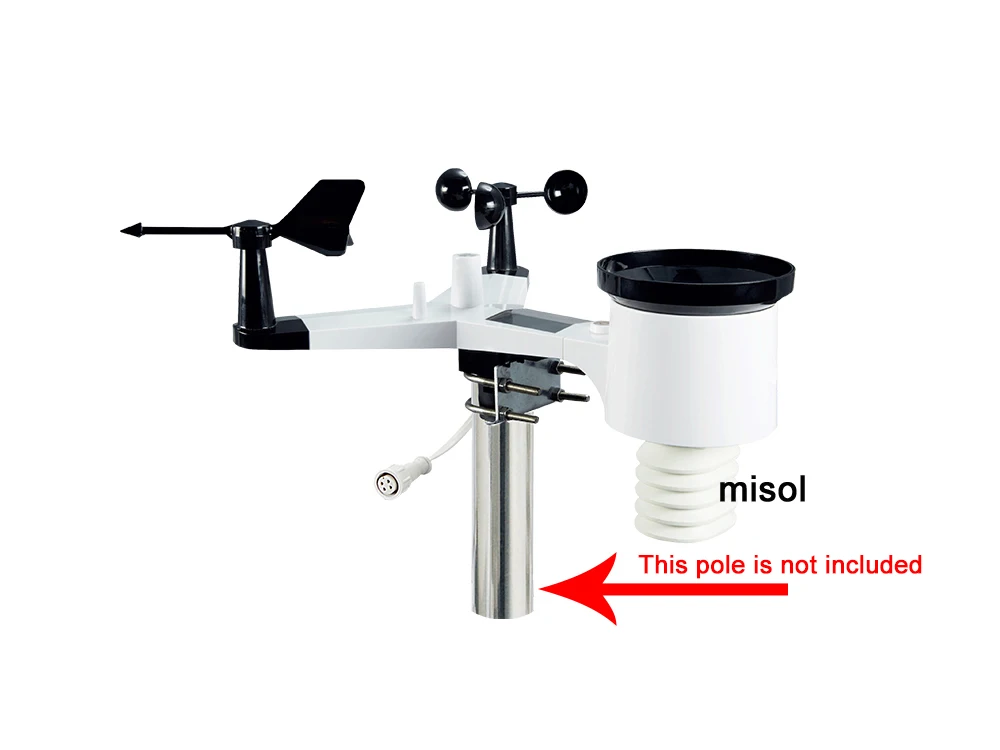

Misol Weather Station with RS485 Port, 4 Wires Cable, with Cable Length (10 Mete

Description:

This listing includes: 1 unit of weather station.

- It will measure: temperature, humidity, rain volume, wind speed, wind direction, light, air pressure.

- With RS485 port (it is RS485-UART, not Modbus)

- With cable: 4 wires cable, length: 10 meter

- Including 1 unit of Adaptor (RS485 to USB) (convenient to connect to computer)

- No display for it

- Communication protocol will be provided.

Application:

it is suitable for the customers to collect the data from the weather station through the cable by their own designed software, to their own server(computer).

Attention:

Before order, please ensure you know how to develop the software to collect the data. What we can support only is to provide the communication protocol to you.

Connect to USB connector (4 wire cable)

Black wire GND

Red wire USB A (D+)

Yellow wire USB B (D-)

Green wire VDD (4.5V -6V)

Specifications

Communication protocol(UART format): baud rate:9600, parity:NONE, bits:8, stop:1

Temperature range : -30C--60C
Accuracy : + / - 1 C
Resolution : 0.1C

rel. humidity range : 10%99%
Accuracy : +/- 5%

Rain volume display : 0 9999mm
Accuracy : + / - 10%
Resolution : 0.3mm (if rain volume < 1000mm)
1mm (if rain volume > 1000mm)

Wind speed : 0-50m/s (0~100mph)
Accuracy: +/- 1m/s (wind speed< 5m/s)
+/-10% (wind speed > 5m/s)

Light : 0-300k Lux
Accuracy : +/-15%

Air Pressure : 300-1100hPa (8.85-32.5inHg)
Accuracy : +/-3hpa 700-1100hPa

Measuring interval : 16 sec

Power supply:

connect to power(4.5v 6v)
