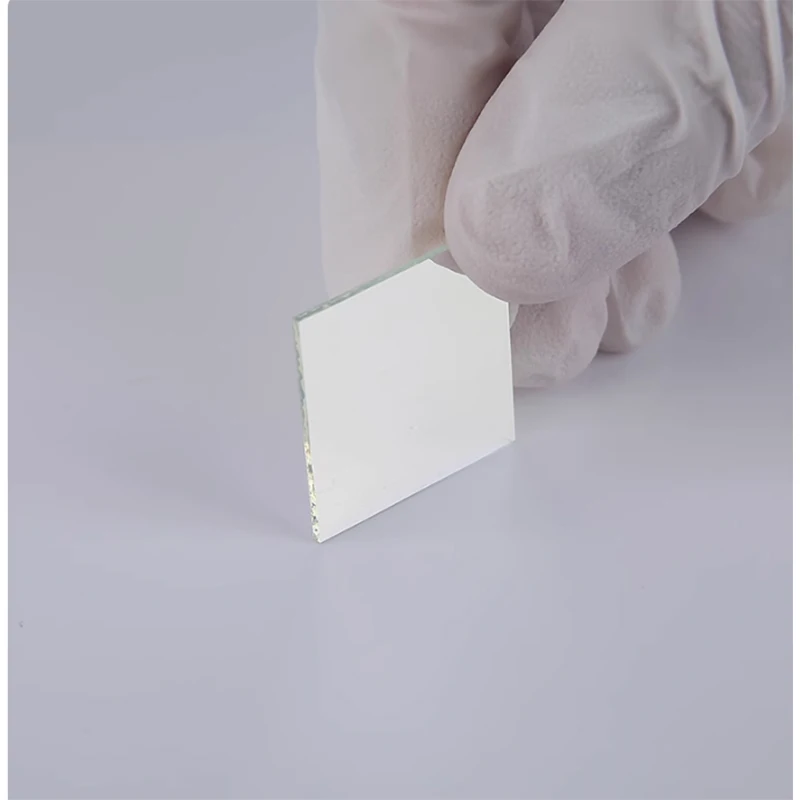

Narrowband Bandpass Interference Optical Filter Square 15X15Mm Andwidth 10Nm OD3

Before placing an order, please contact the seller to confirm the center wavelength. Different wavelengths can be ordered together through this link, and the center wavelength value should be noted in the order details. At the same time, leave a message in the message window to let the seller know.

Center wavelength: 400nm/410nm/420nm/430nm/440nm.....730mn/740nm/750nm/760nm/800nm. The above band spacing is 10nm,there are many types of center wavelength can be choose. please leave message which one do you need when purchasing. Thank you.

Cutoff depth: OD3
Half width and width: 10nm
Size: 15x15 mm
Die thickness: 2.2mm
Transmittance: T>40%

Cut off wavelength range:200~1100nm
Thickness tolerance: 0.1mm
Surface shape: 1.5 wavelength ~ 2.5 wavelength @ 632.8nm
Finish: 60-40
Operating temperature: Minus 400C ~ 400C


Note: This product does not include ultraviolet band filters below 400nm and infrared band filters above 800nm. The price of ultraviolet and infrared filters is different. If you need, please contact customer service.

There are other specification bandpss filter on sale, if you need please click for purchasing. Thank you.
