New 10Ghz LCD RF Power Meter V7 N-Type Type-C USB High Performance Full-Band RF

RF-Power-Meter-V7.0 series is a high-performance low-cost portable TYPE-C simple RF power meter with simple instruction, small size, stable performance, high accuracy, preset offset, wide dynamic range and fast measurement speed. 5V power supply and high-speed data communication are provided through TYPE-C. The software matched with this power meter enables users to configure the power meter on the PC and makes it easy to record and share data.

Advantages:

- Support a variety of high-speed dynamic acquisition, with a maximum of 500kbps (2uS) upper computer acquisition.
- Up to 10GHz RF signal acquisition function is supported.
- Built-in digital programmable attenuator (0-31.75DB), the maximum input power measured with digital attenuator is 30dBm (1W), and the dynamic range is +30dBm to - 60dBm.

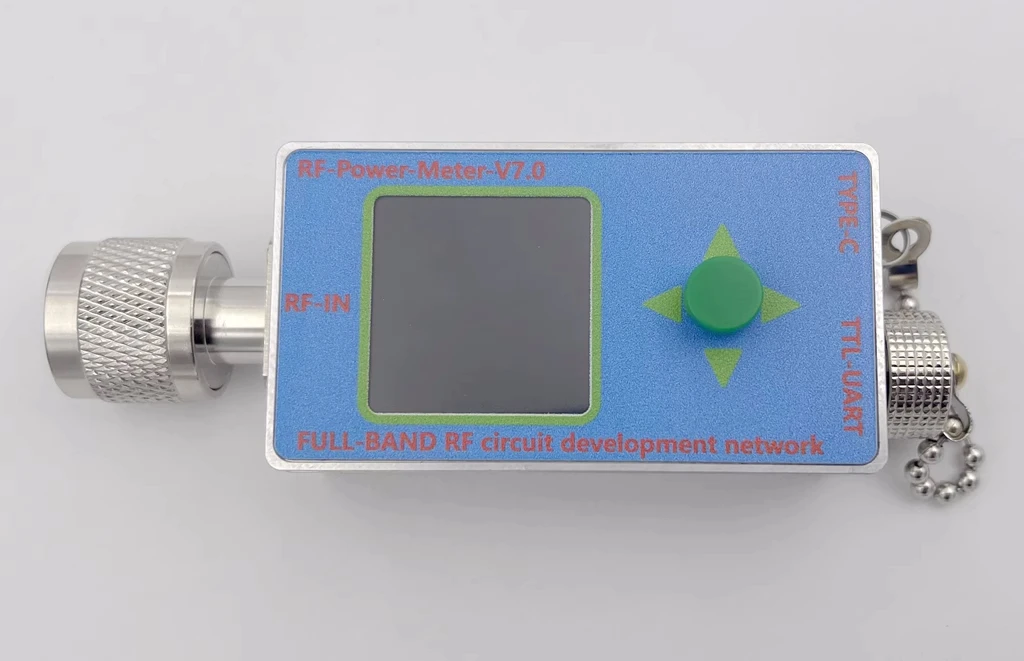

- The power meter V7.0 comes with 1.3-inch TFT LCD and built-in Li battery, which can be operated offline.

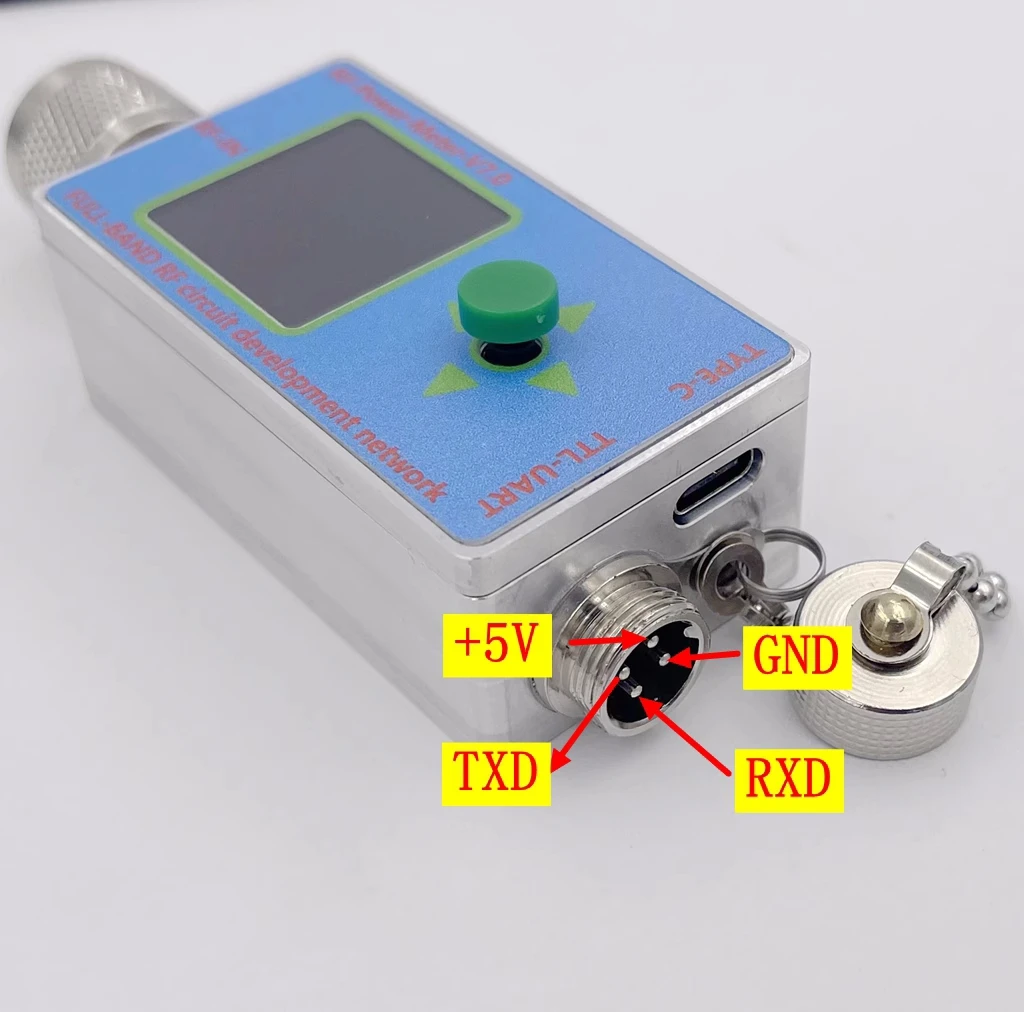

- The 4-port aviation plug is used to provide TTL serial port reading and writing function, and provide single and continuous data reading mode.
- The upper computer has two MARK cursor functions to measure the modulation pulse width; Automatic calculation of maximum and minimum values; The maximum storage depth is 500 points; Support pause, data saving and export functions.

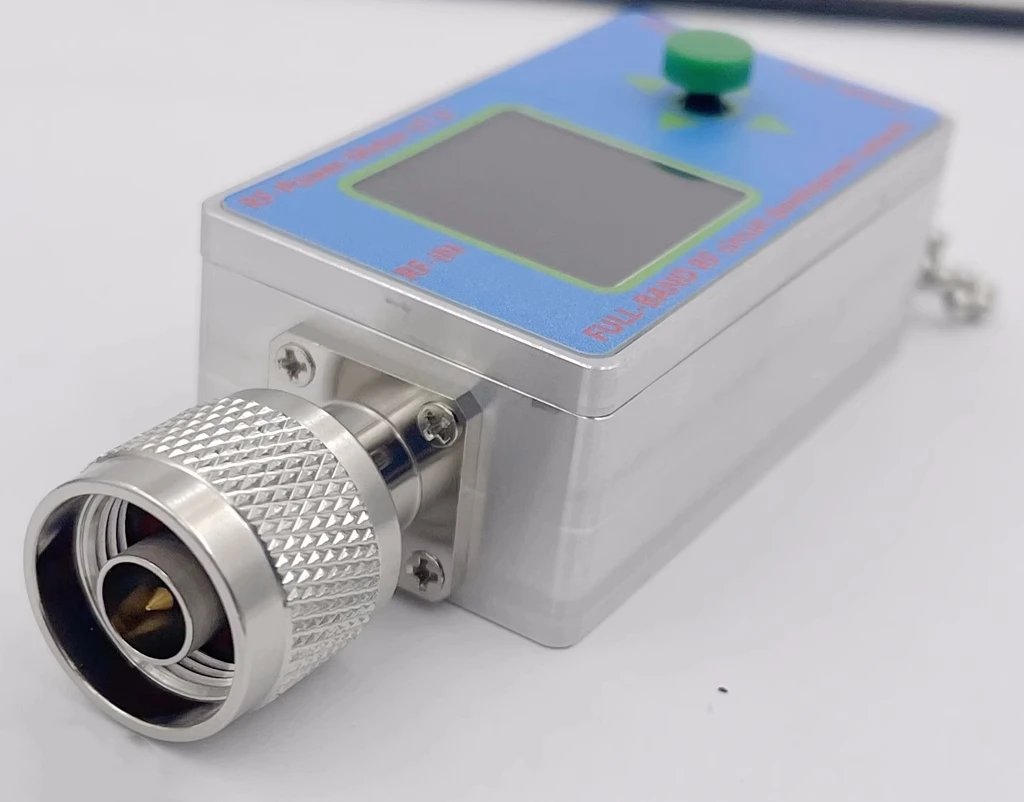

- RF input interface: N-type male

Specification:

- Measuring power range: - 60 ~ +30dBm (0 ~ - 40dbm has good linearity)
- Measuring power resolution: 0.1 dBm
- Measuring frequency range: 100K~10GHz (the frequency range of different models is different)
- Input impedance: 50ohm
- Dynamic range: 90dB
- Working voltage 5VDC (power supply via TYPE-C line)
- Charging current: 300mA
- 66 x 36 x 24cm (excluding protruding N head, refer to the given mechanical drawing for details); The fuselage is made of aluminum alloy shell processed by CNC, and its weight is less than 100g.

Application:

- Calibration of RF instruments
- Detection and maintenance of RF equipment
- Measurement of standing wave ratio of RF circuit (adding feedback bridge)
- Measurement of return loss of RF circuit
- Interference detection between wireless communication equipment
- RSSI (received signal strength indication) and transmit power level detection
- Performance evaluation of step attenuator
- Amplifier gain and network attenuation measurement
- Measurement of forward power and reflected power in directional coupler
- For GMSK modulation GSM signal power measurement

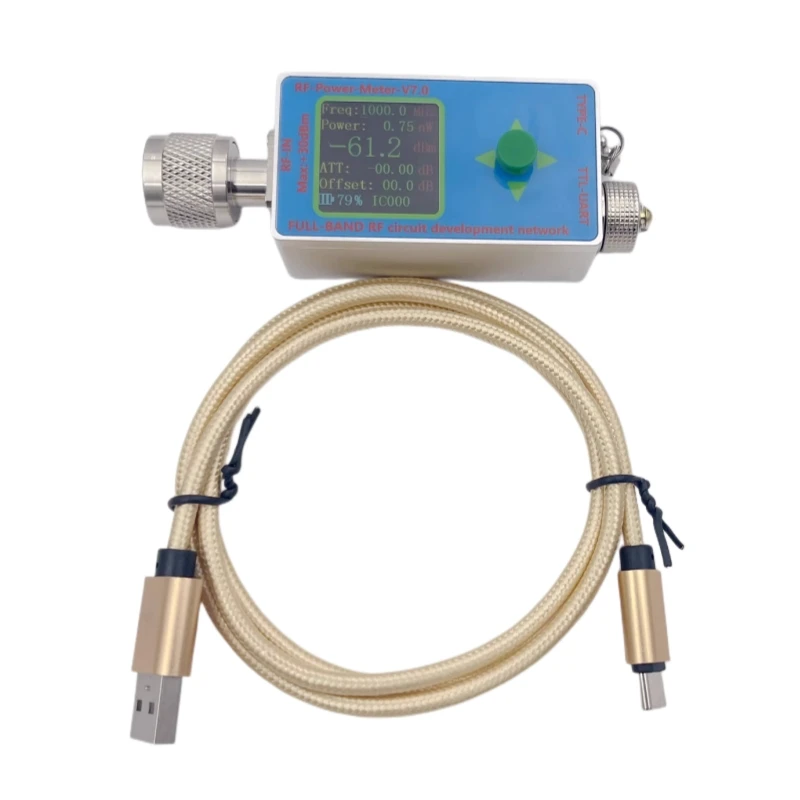

Instruction of the display

Press the button, turn to right and hold to power it on. Long press the button to power it off.

Freq: Frequency setting, this data is keyed in to calibrate the detection error at different frequencies, not the value measured by the power meter.

Power: measured power value in W
DBm defines milliwatt. 0 dBm=1mw;
DBW defines watt. 0 dBW=10lg1W=10lg1000mw=30dBm

ATT: Internal numerical control attenuator value of the power meter. Attenuation range: 0 to 31.75DB, which needs to be set when measuring signals greater than 0 dBm to improve measurement accuracy.

Offset: Linear offset setting value.
The first function: When ATT is added, the offset needs to be set through offset;
The second function is to calibrate interface errors;
The third function: If an amplifier is added externally or there is a standard signal source, the relative error can be set through this value.

95% internal lithium battery level prompt

IC000 machine internal address

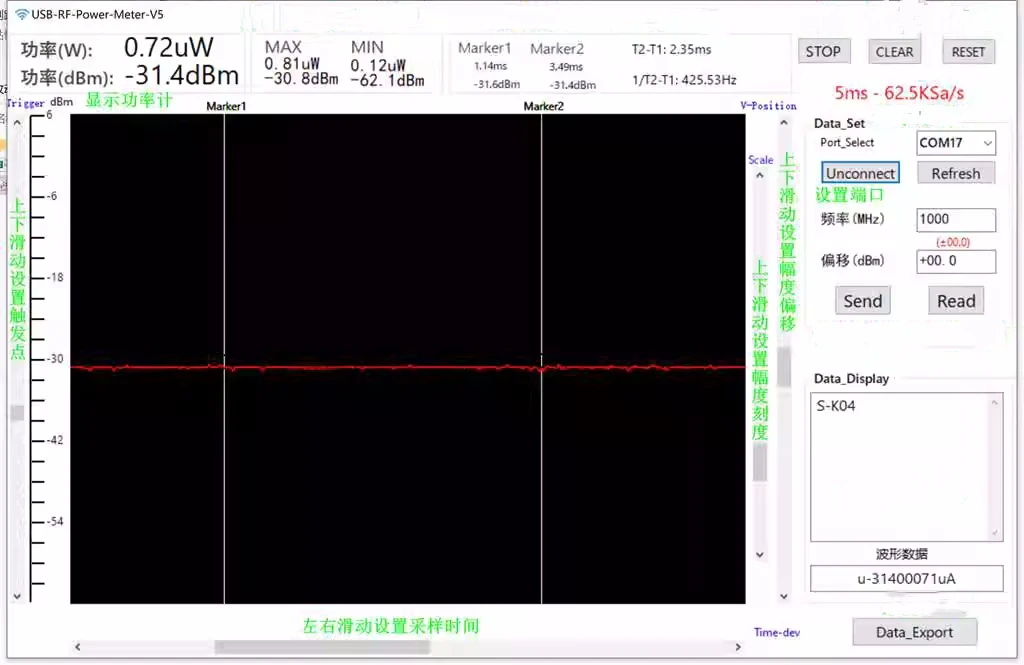

Interface of PC software

Package include

1 x RF-Power-Meter-V7.0
1 x USB cable

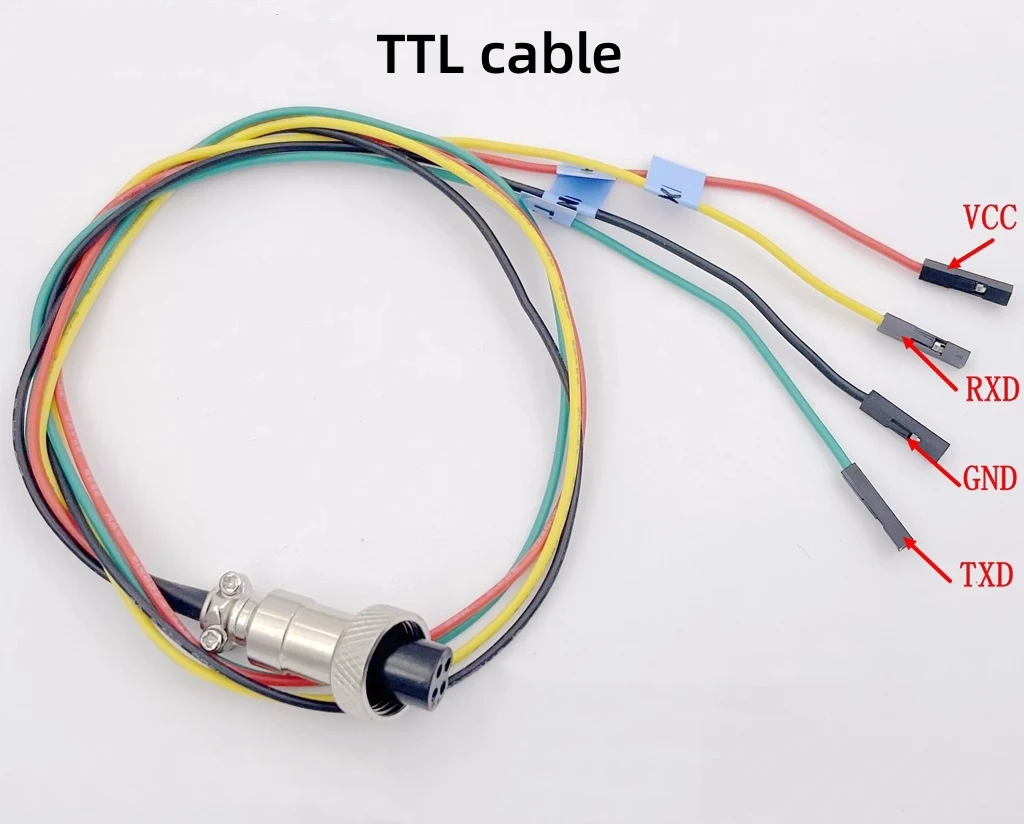

1 x TTL cable( not include if not buy)
