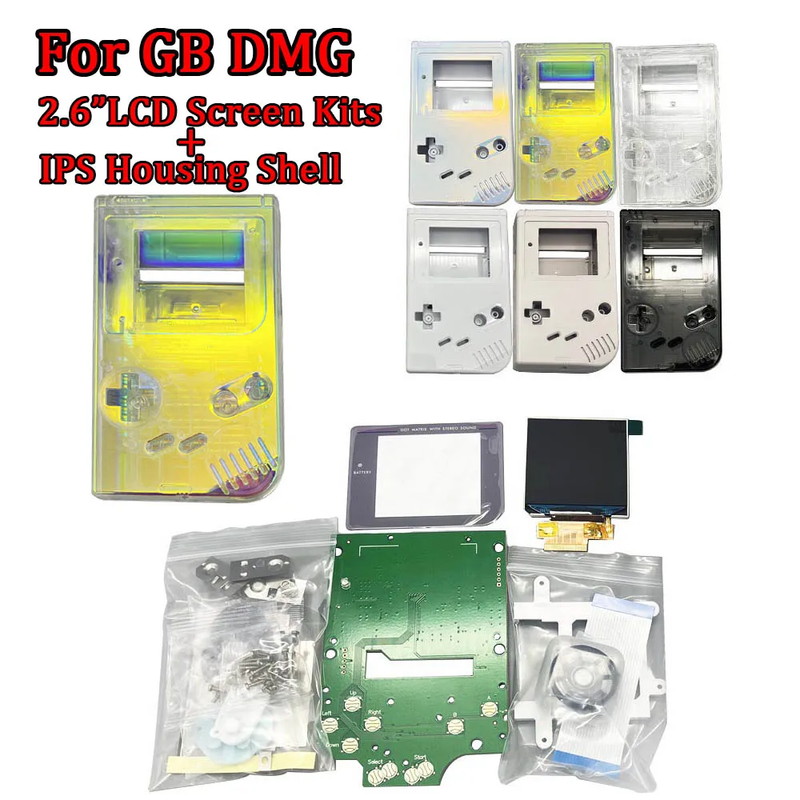

New 2.6 Inch Point to Point Display IPS LCD Screen Kits with IPS Housing Clear S

Notes:

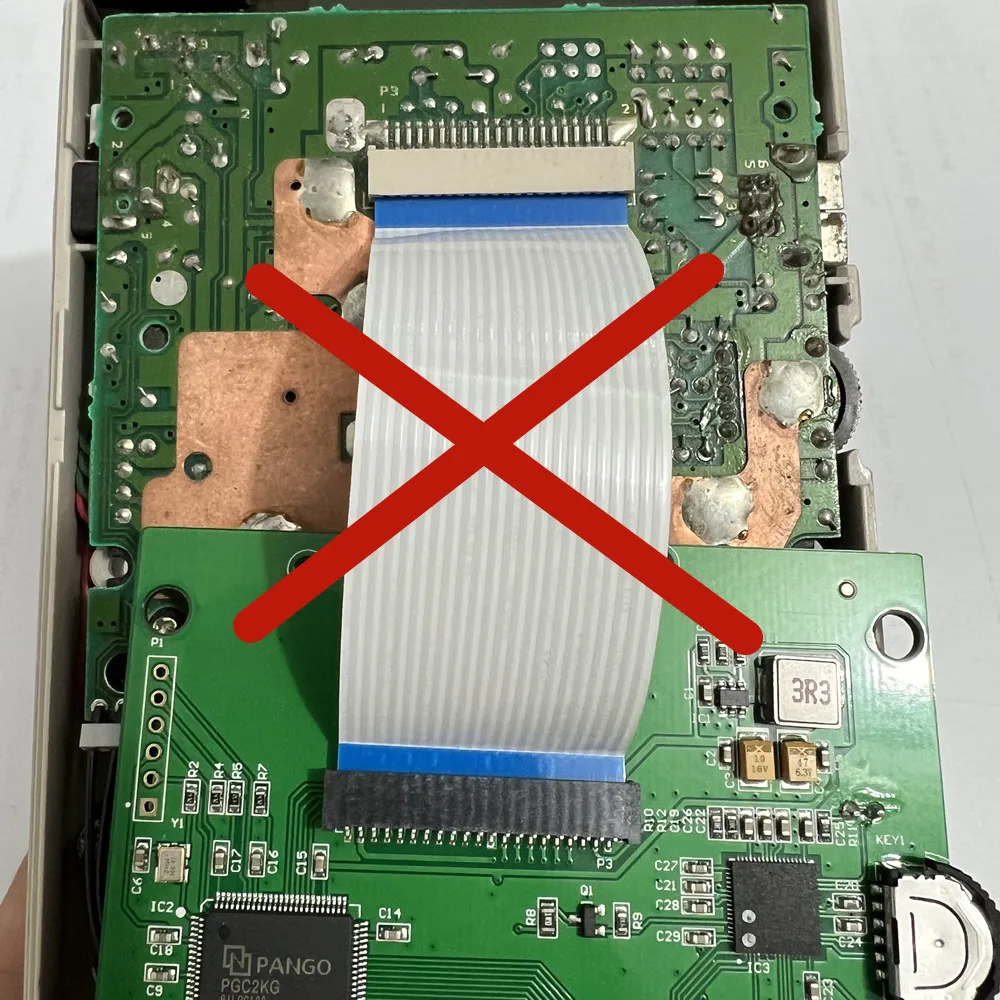

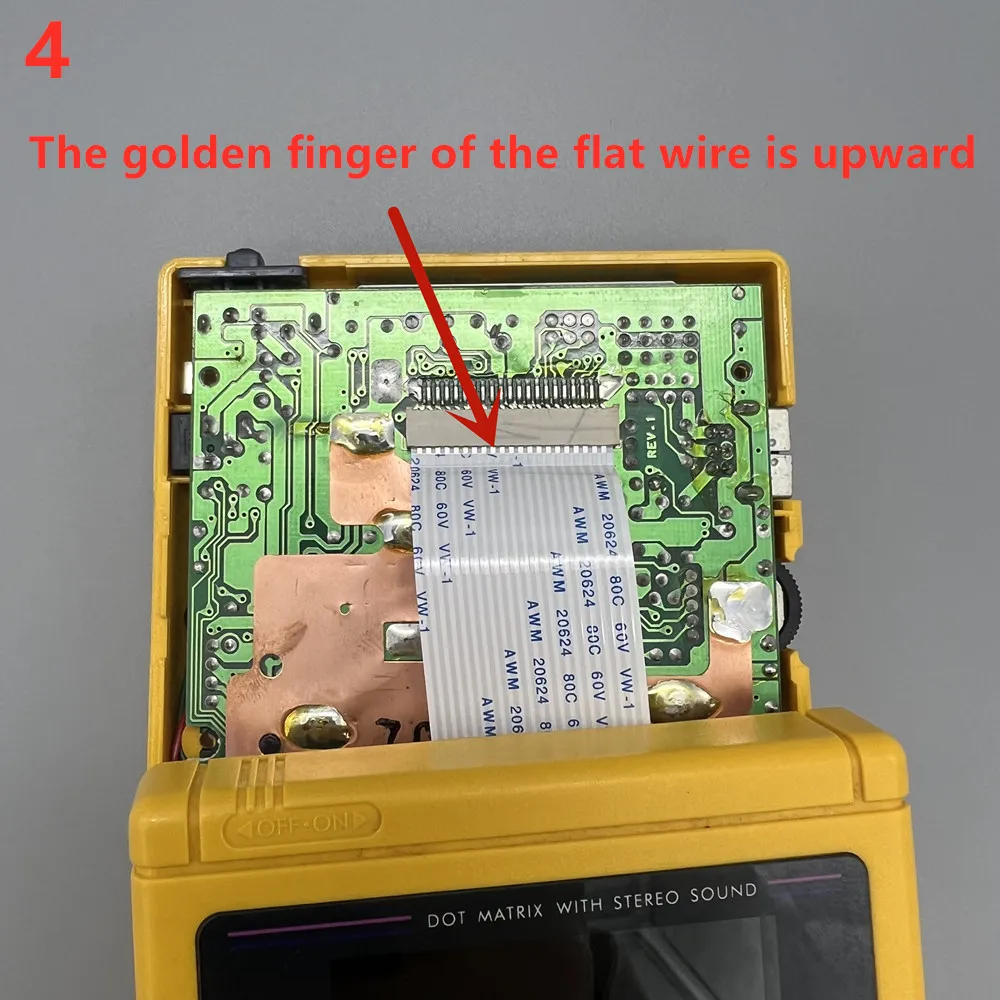

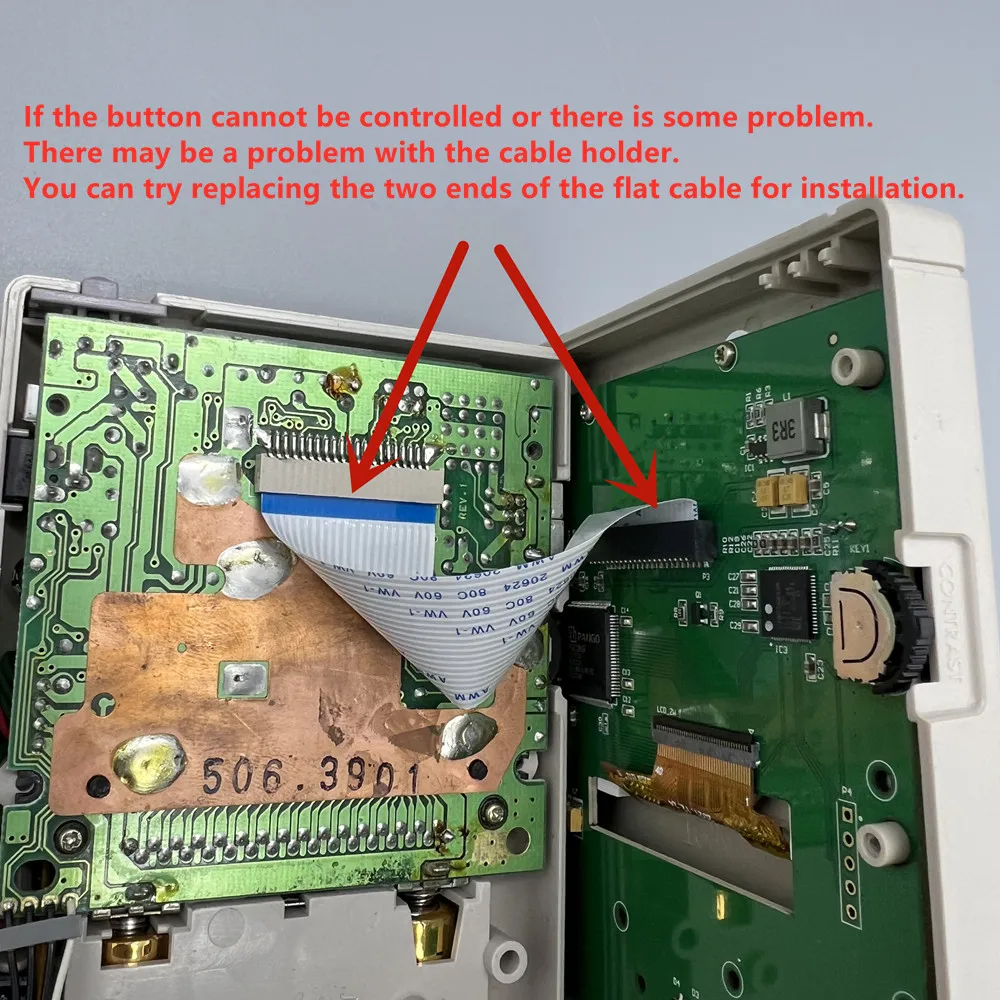

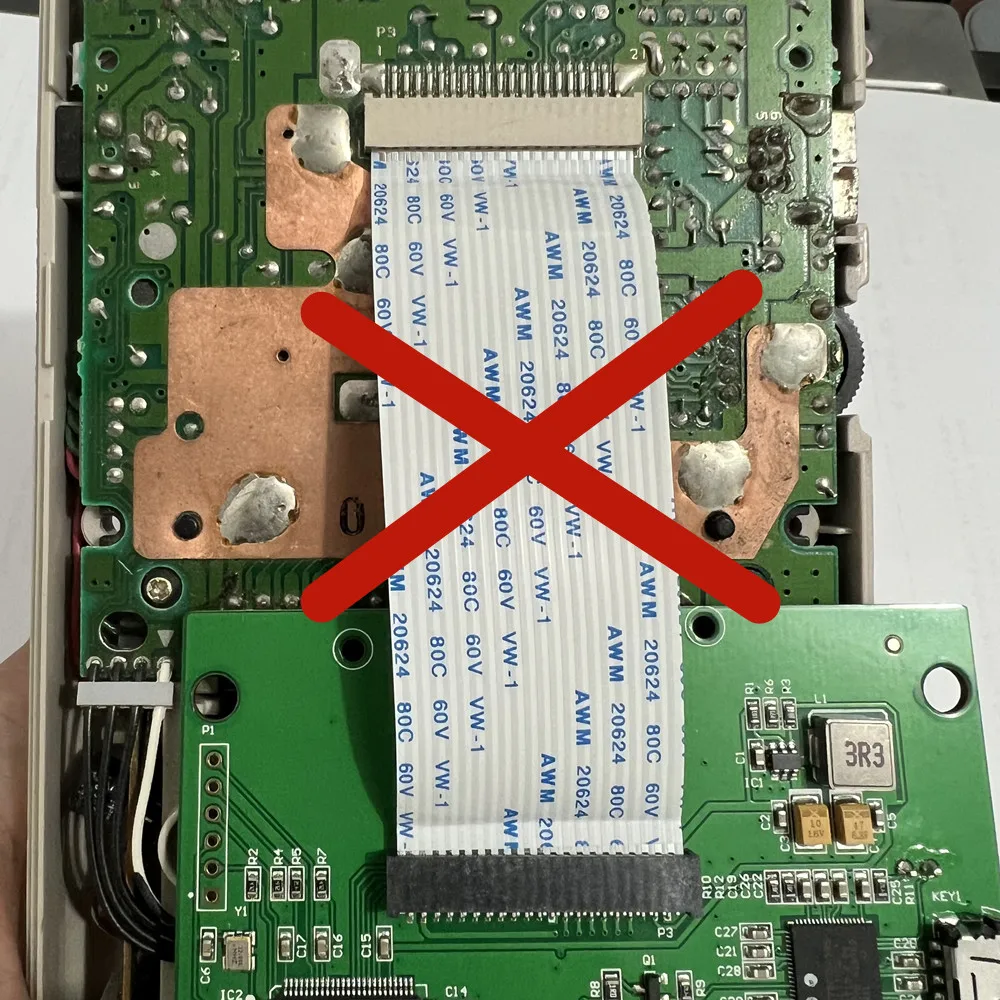

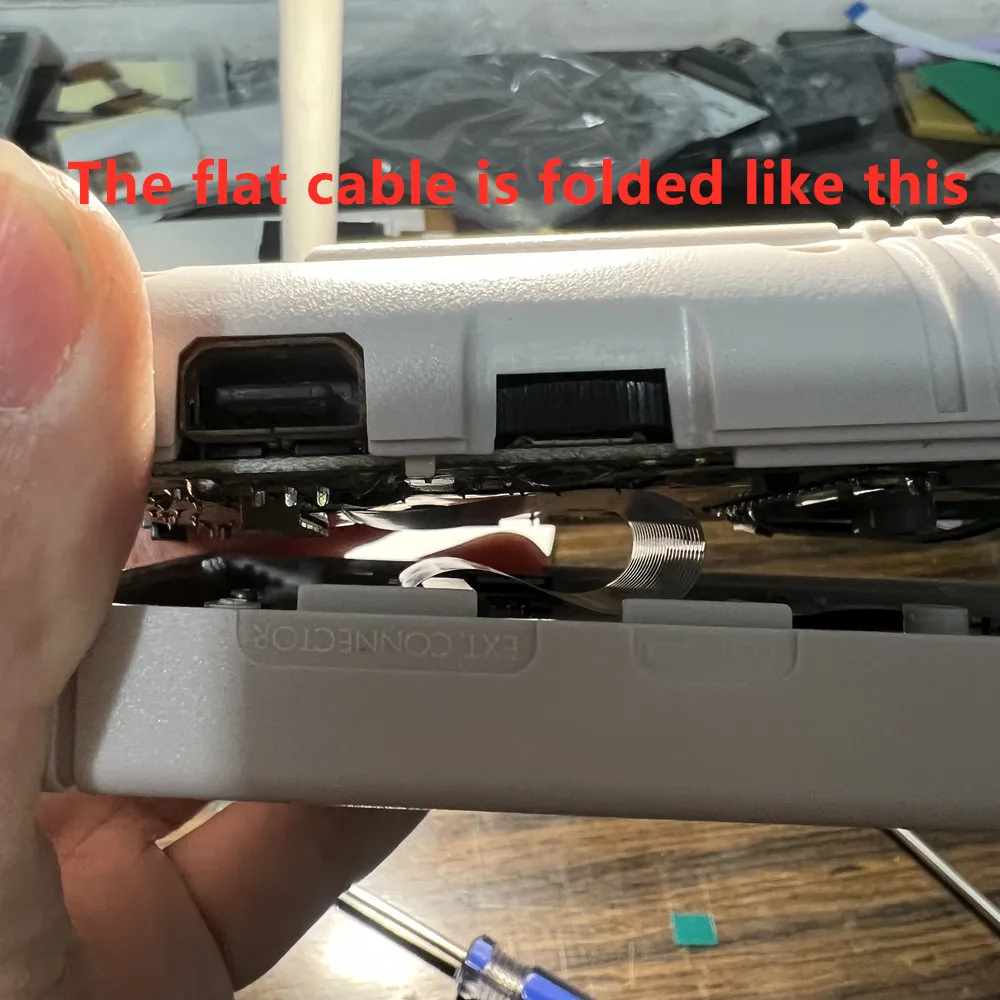

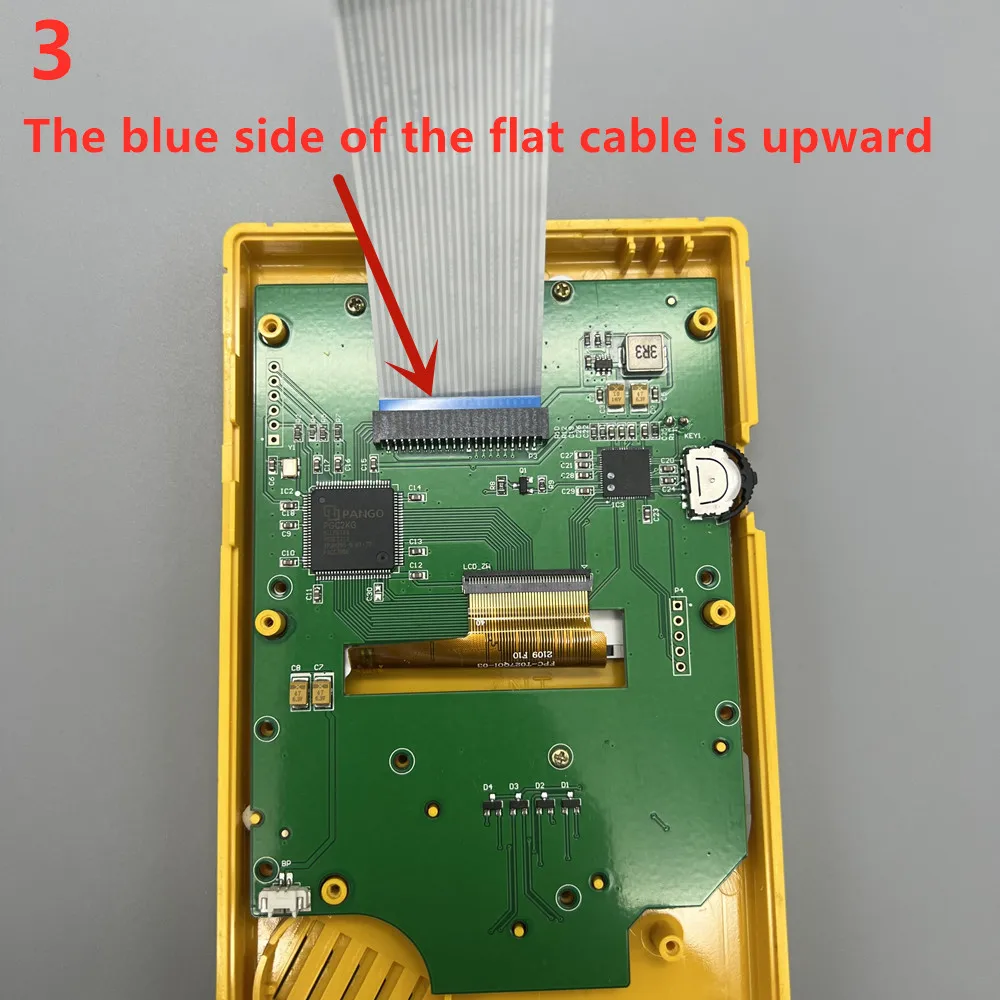

Do not insert the same side of the cable at both ends into the cable holder. As shown below. Inserting a reverse cable like this will burn out the main chip of the LCD screen!!!

Product features:

1. 2.6 inch IPS LCD screen, plug and play.

2. Support for custom colors.

3. Support Chinese and English system menus.

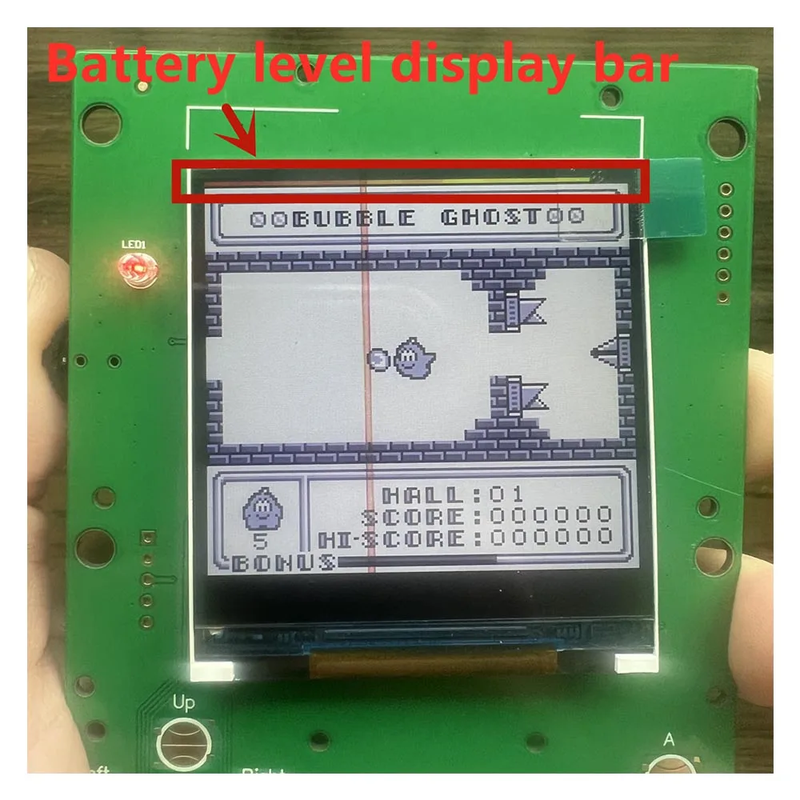

4. Accurate battery level display bar.

5. Support pixel display.

6. Support to save 7 customized colors.

7. Function introduction of LCD adjustment dial:

- Press it vertically for 1 second, and the top of the LCD screen displays the power bar.

- Press vertically for 3 seconds to pop up the saved color settings, move up and down to select, and press vertically to confirm.

- Press vertically for more than 5 seconds until the custom menu pops up. Move up and down to select, and press vertically to confirm.

- Toggle up or down to adjust the LCD brightness.100 level brightness adjustment, with mild brightness change. Long press, the backlight will change significantly.

- Toggle the switch upward and turn on the power switch. Factory settings can be restored.

8. Palette:

Game color 0 is the background color, game colors 1 and 2 are the main colors of the pattern, and game color 3 is the font color and image stroke.

0 recommended setting R63 G63 B50, 3 recommended setting R0 G0 B0.

Example:

0 R63 G63 B50

1 R47 G47 B47

2 R31 G31 B31

3 R0 G0 B0

Installation Precautions:

1. Do not squeeze the LCD screen. Do not pull the LCD flat cable. Do not wipe the LCD screen.

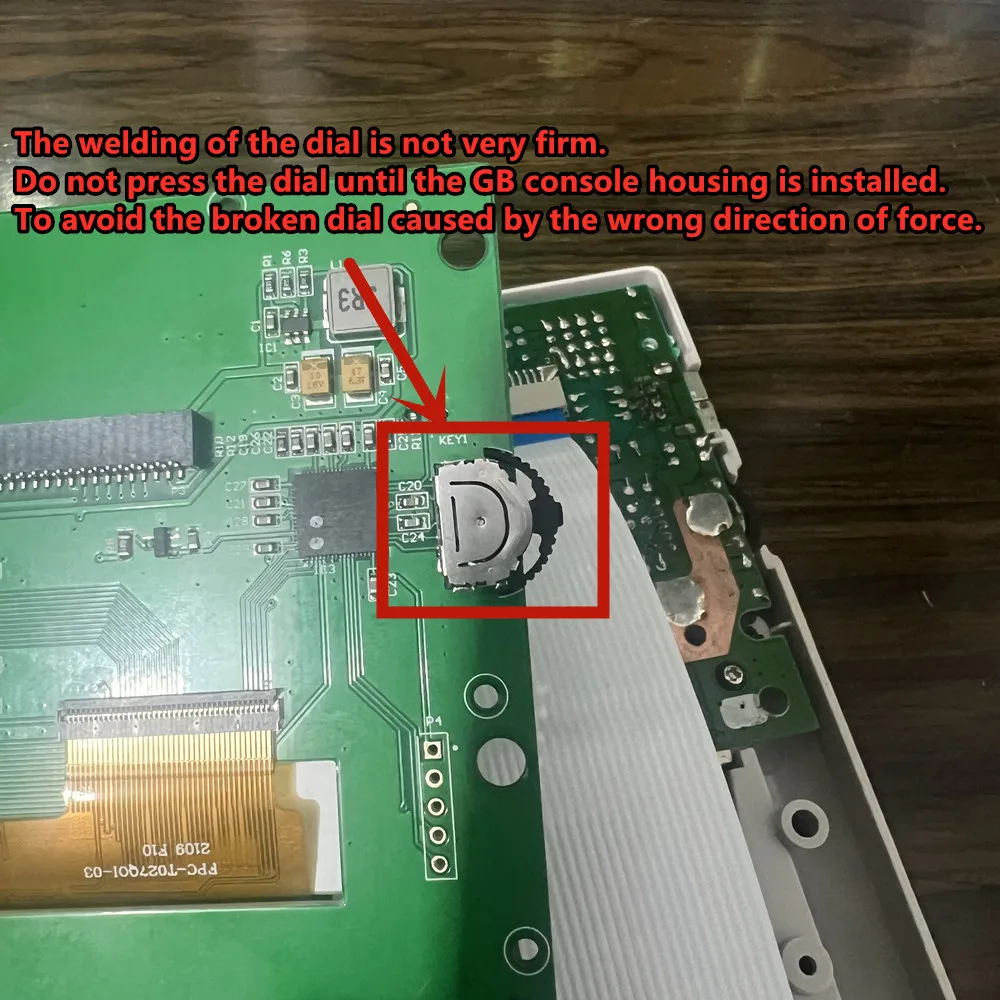

2. The welding of the dial is not very firm.

3. Do not press the dial until the GB console housing is installed.

4. To avoid the broken dial caused by the wrong direction of force.

5. Please test before installation

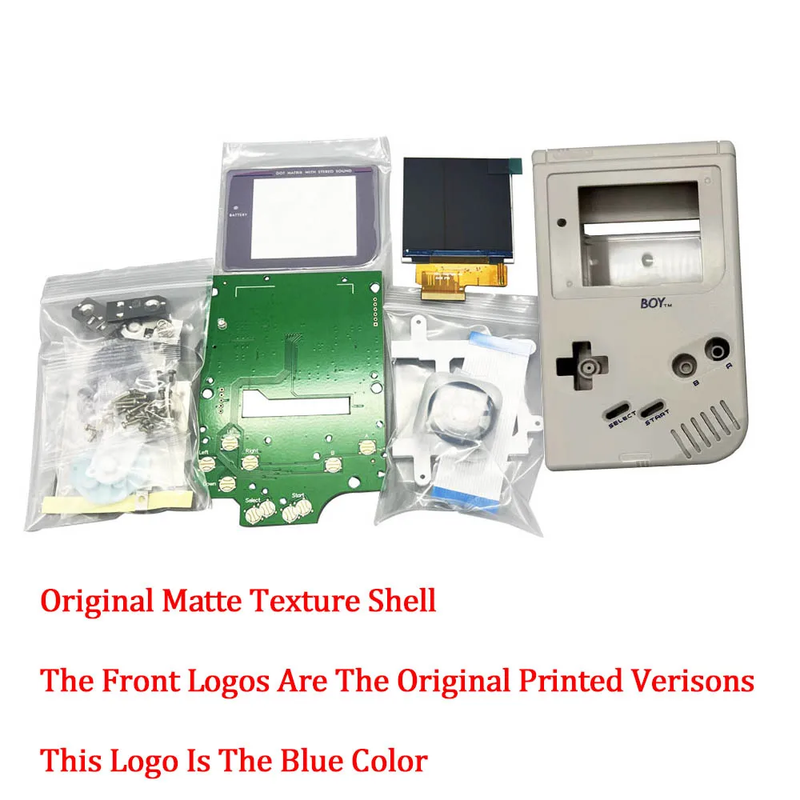

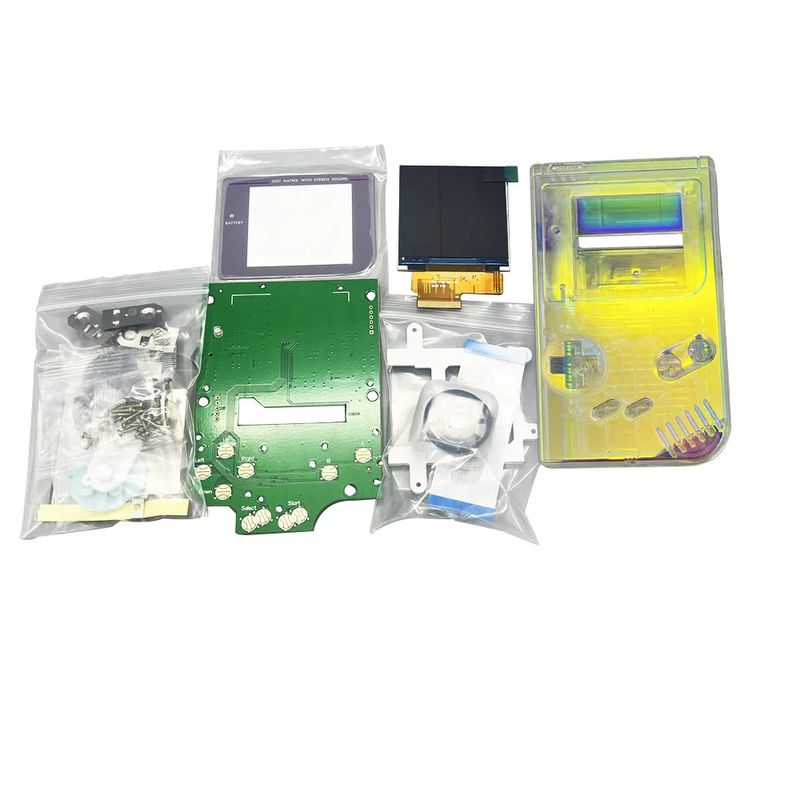

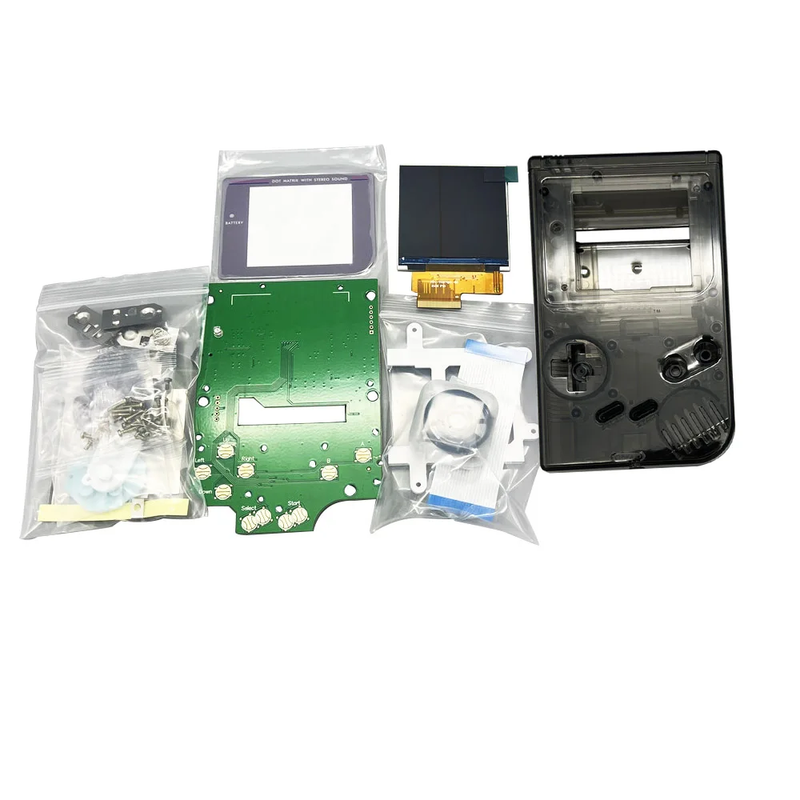

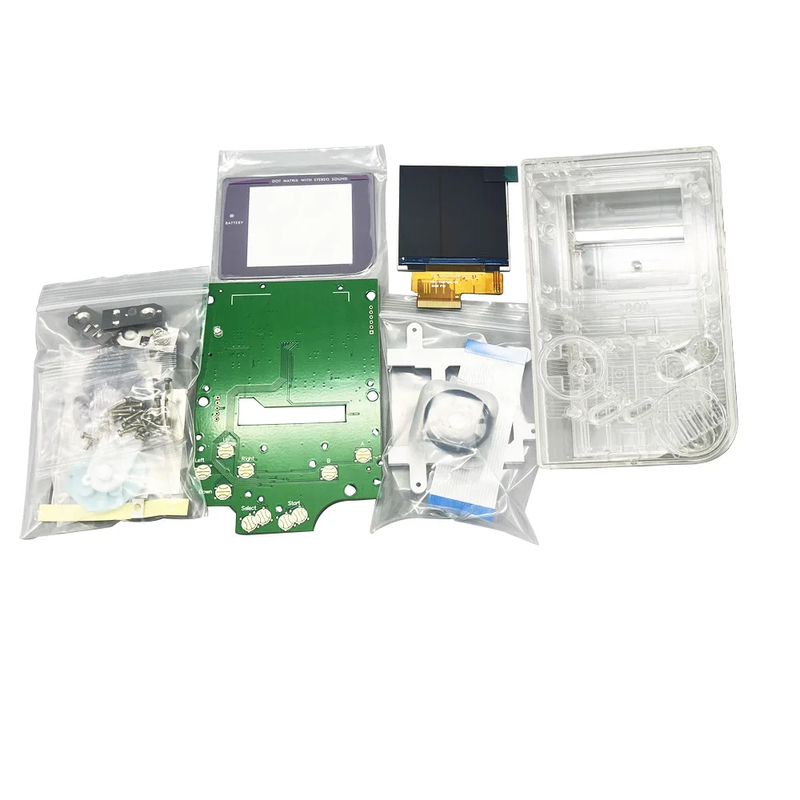

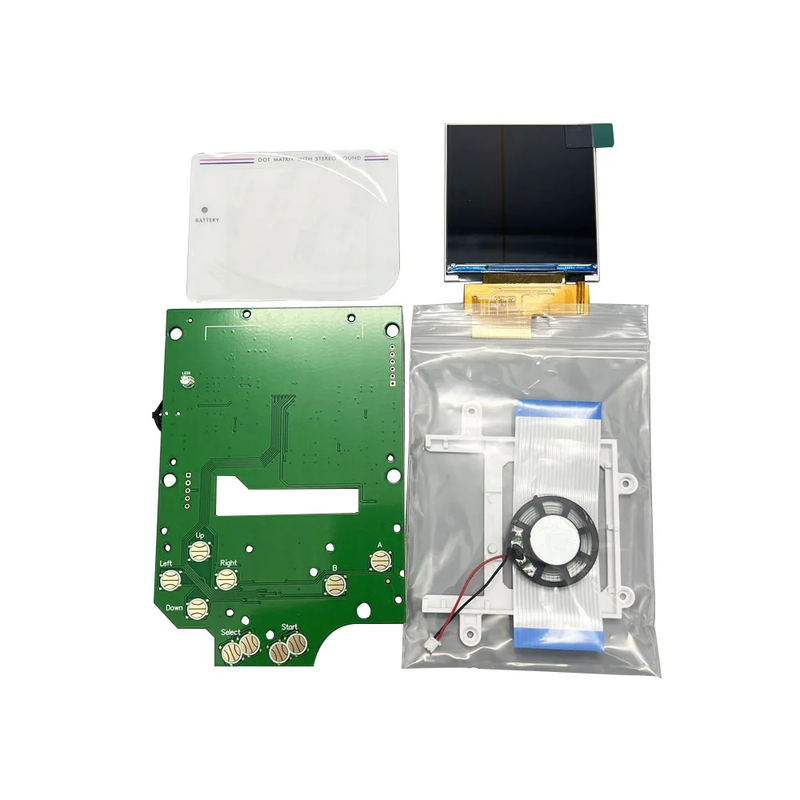

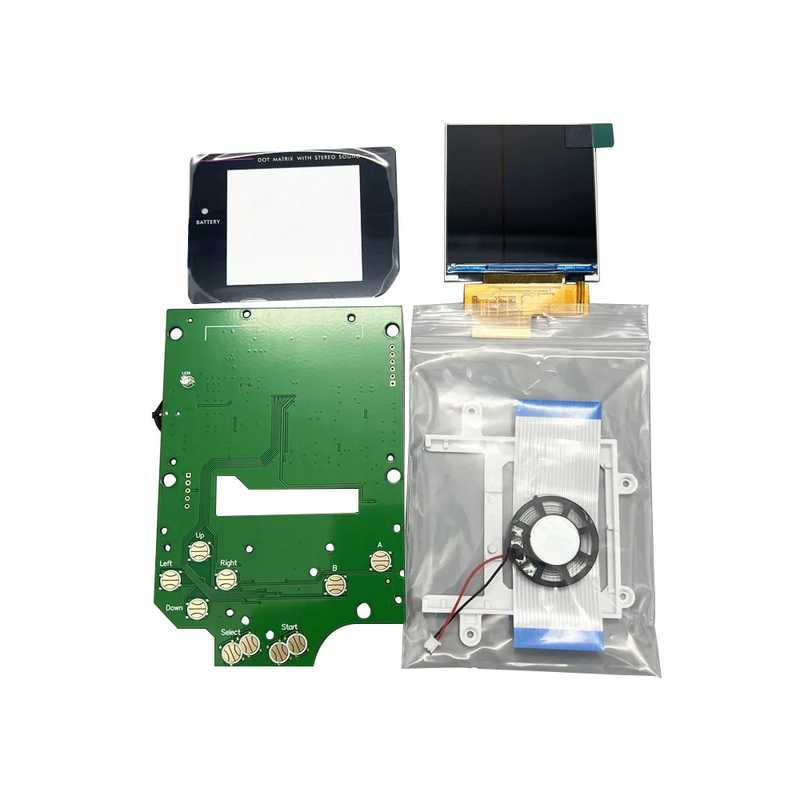

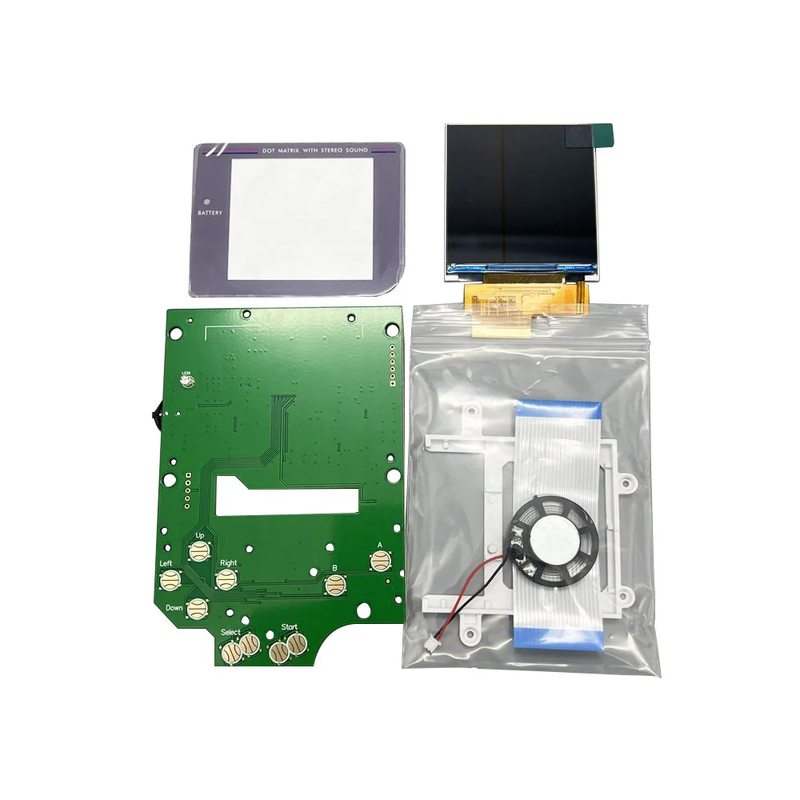

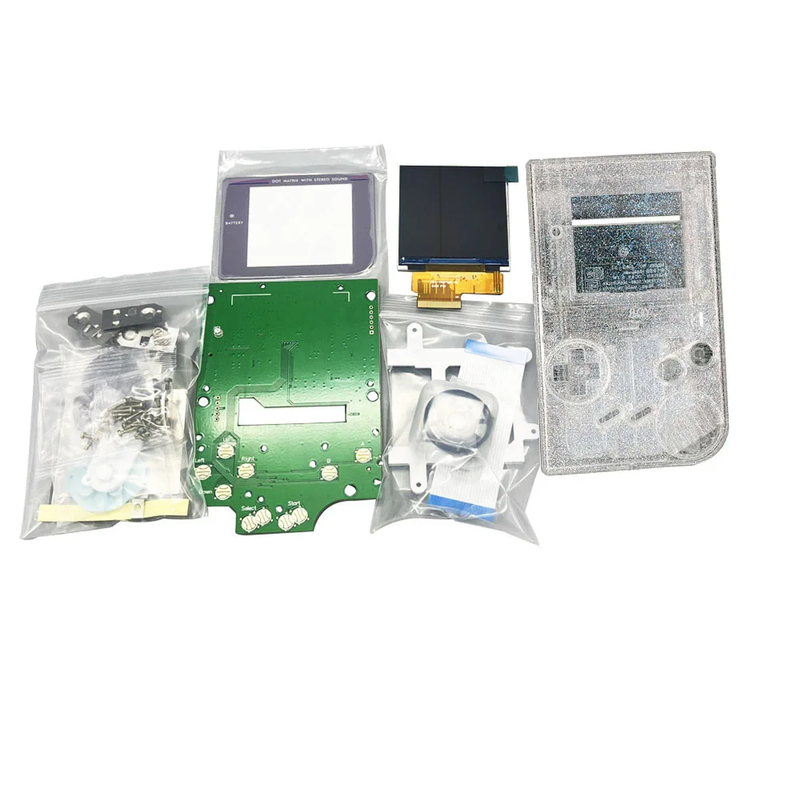

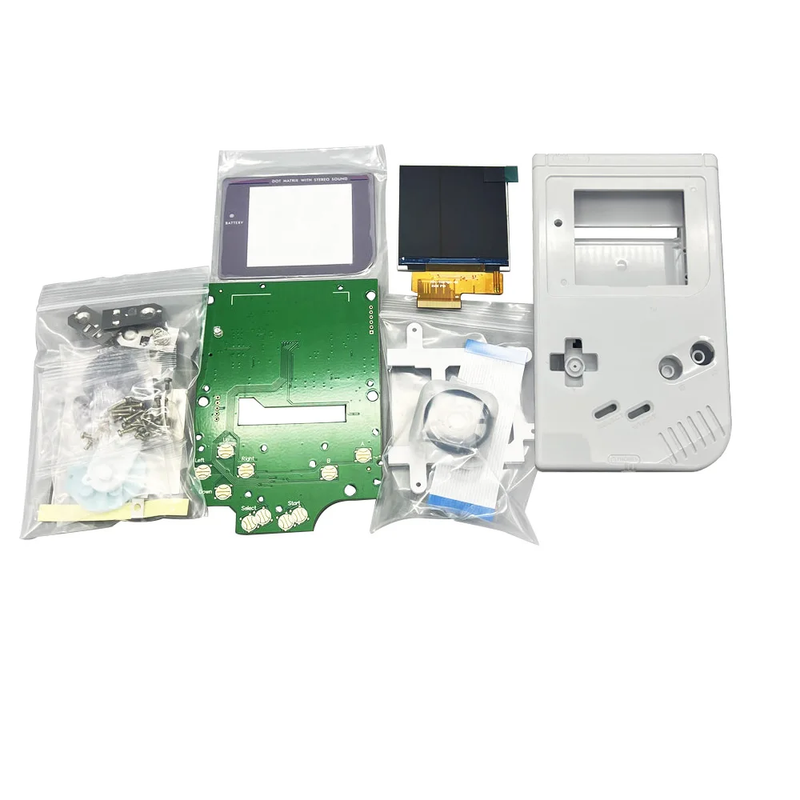

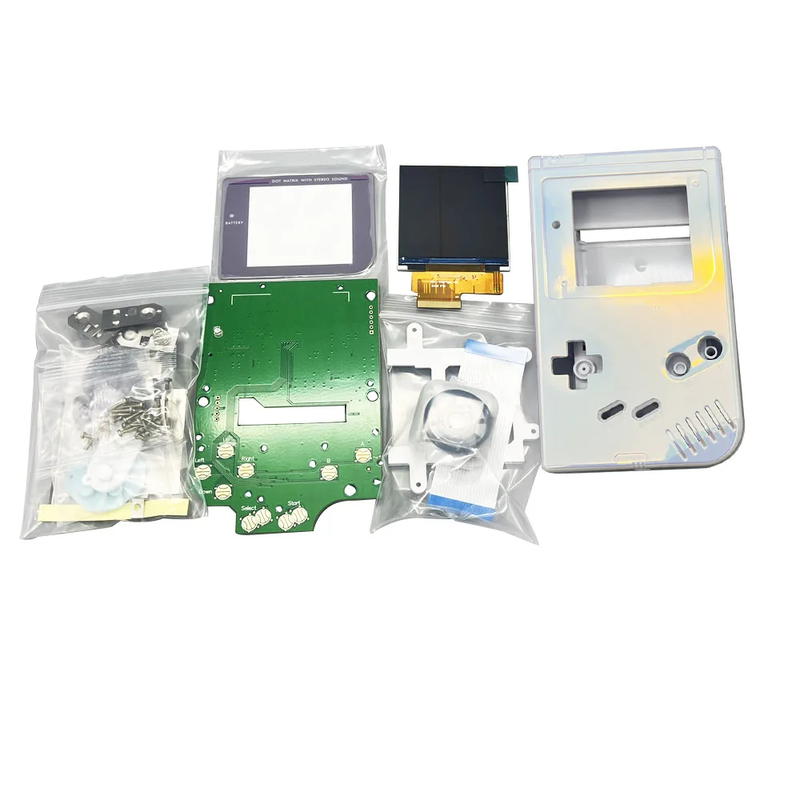

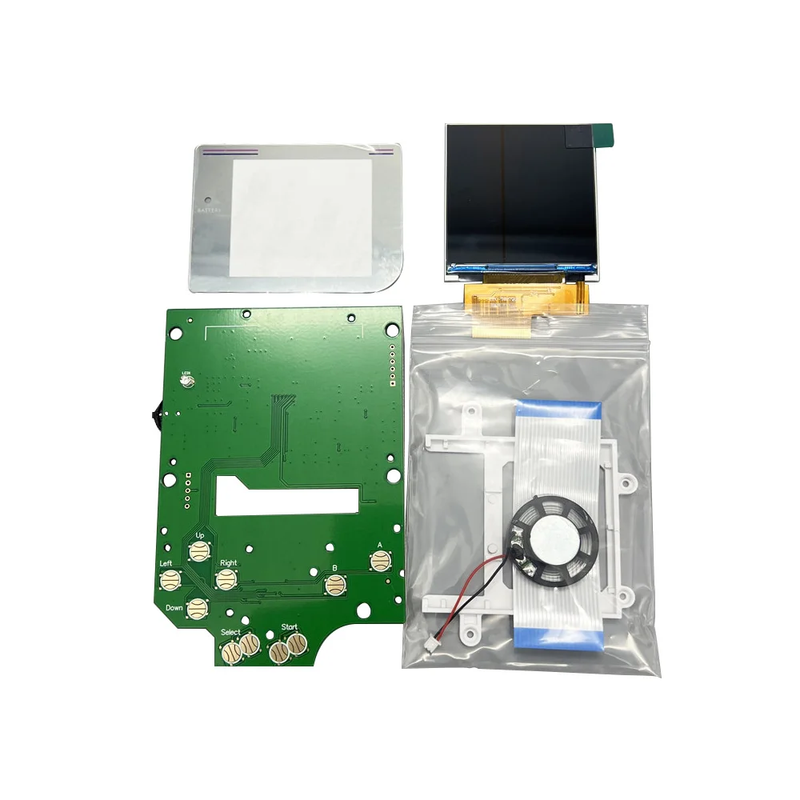

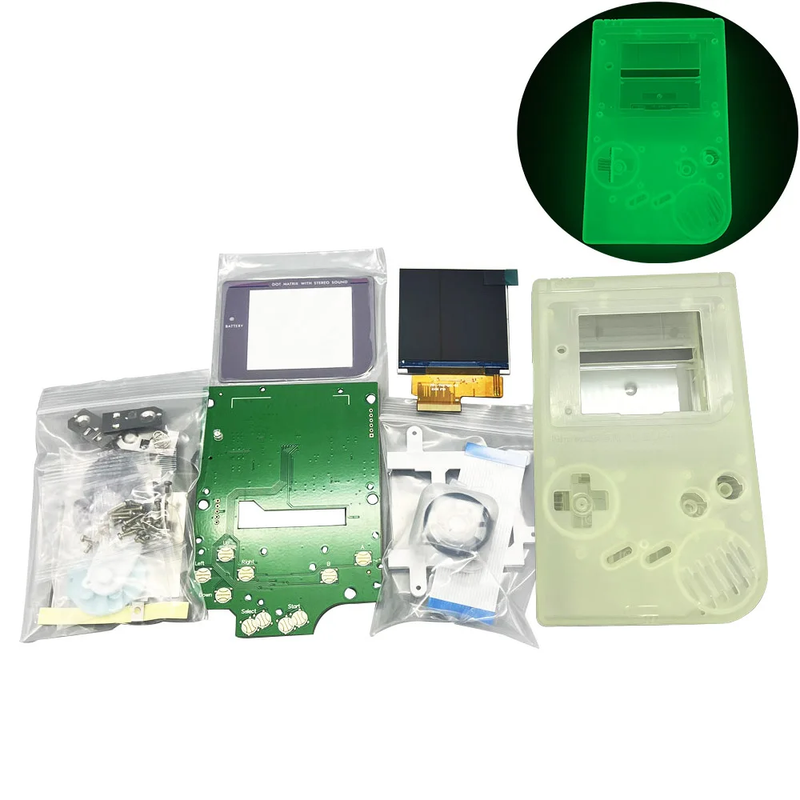

Product Included:

1x 2.6'' LCD Screen Kits

1x IPS Shell

1x Sticker

1x Glass Lens

1 Set of Buttons

1 Set of Conductive Rubber Pads

1 Set of Screws

Notes:

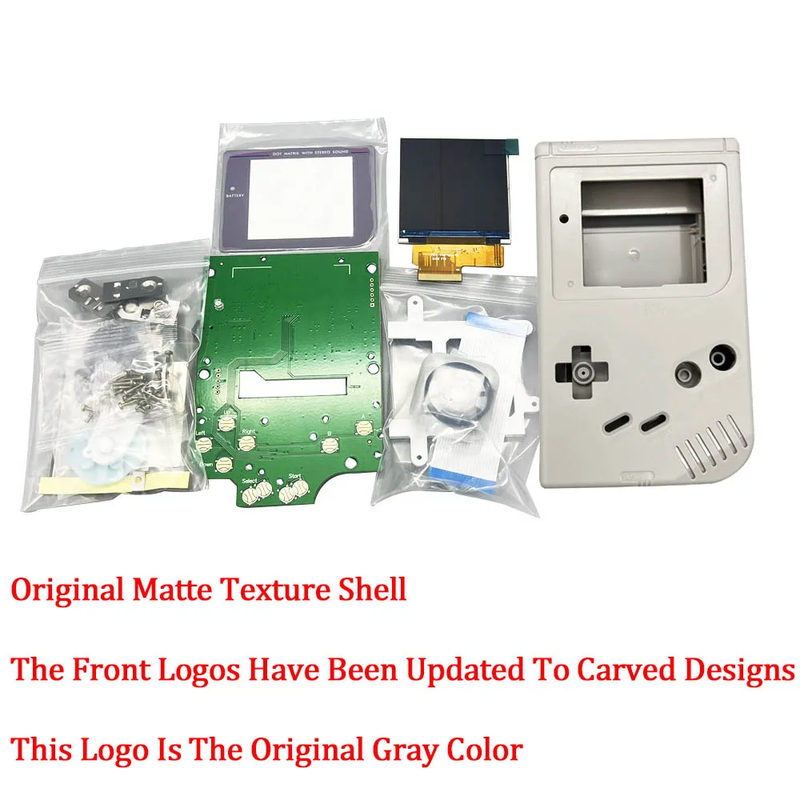

- The Grey color is according to the original matte feel. Other colors have a highly transparent and shiny feel.

- The surface of the shell is shiny, not frosted, and the clear shell will be more transparent.

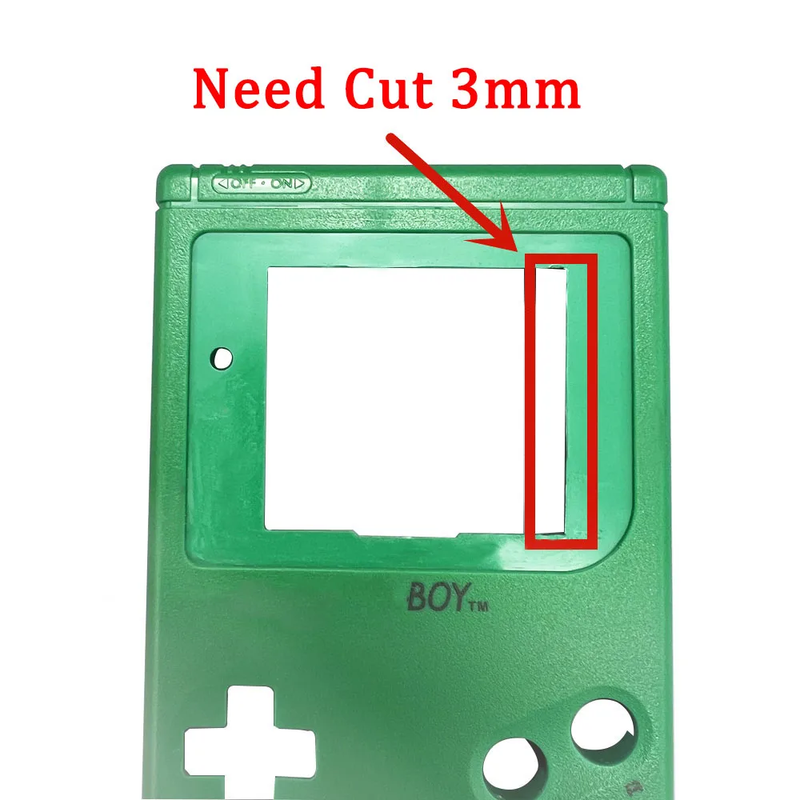

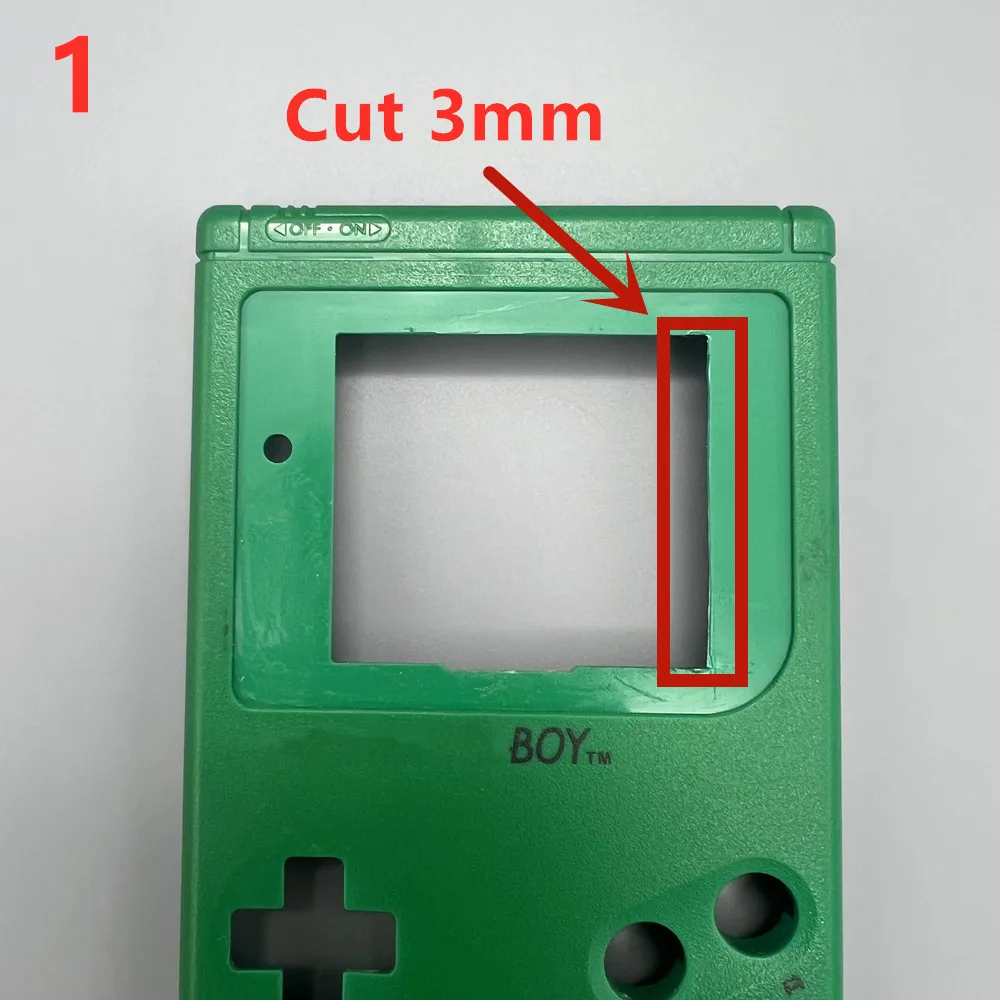

There is no need to cut the GB shell sold in our store when purchasing it. The LCD screen window has been expanded here.
