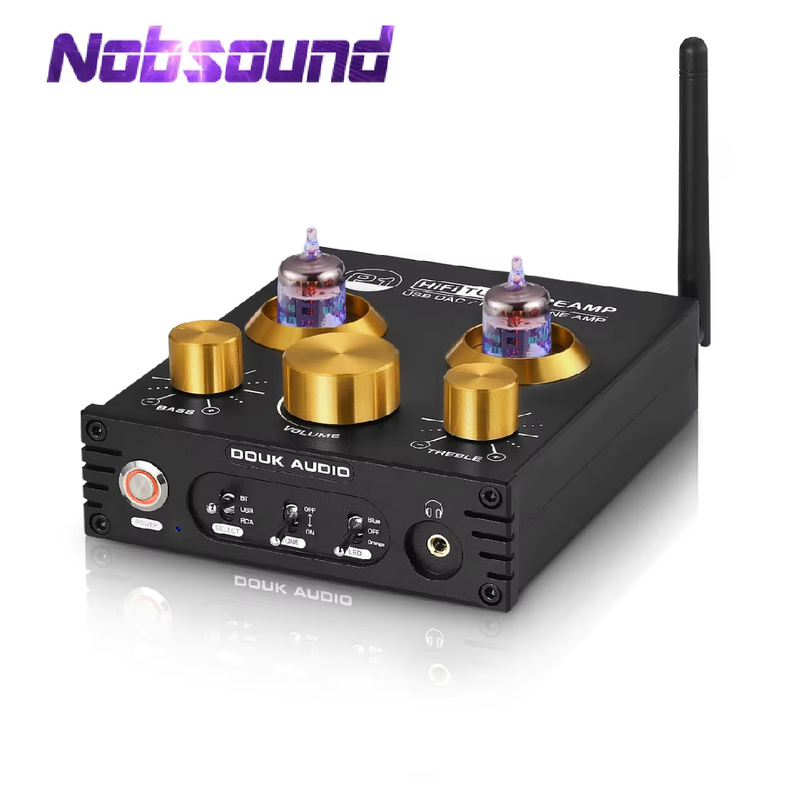

Nobsound Hifi Bluetooth 5.0 JAN 5654 Valve Tube Preamp Bass Preamplifier Stereo

Nobsound Hifi Bluetooth 5.0 JAN 5654 Valve Tube Preamp Bass Preamplifier Stereo

Regular price £90.99 GBP
Regular price Sale price £90.99 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.



Warm tips:

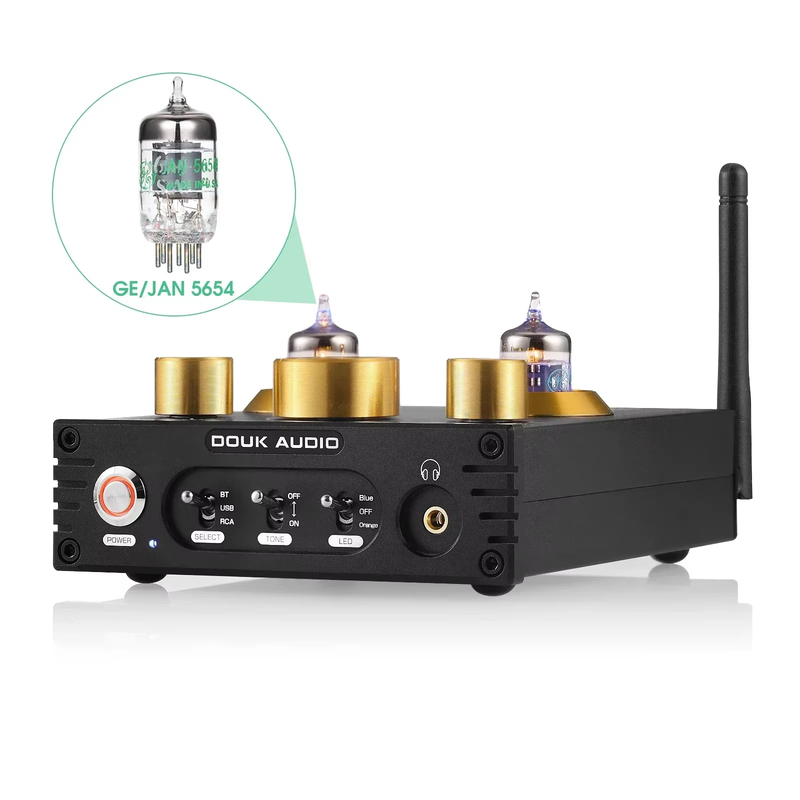

1. Douk Audio P1 Preamp has been acclaimed by countless audiophiles worldwide, now we upgrade 6J5 to JAN 5654 tubes according to many audiophiles' feeback, the sound quality will greatly improved.
2. P1 has been redesigned and tested thoudsand of times during 2021, the latest version (from 2022/01/10) has great improvement in the circuit layout, performance and sound quality.
Features

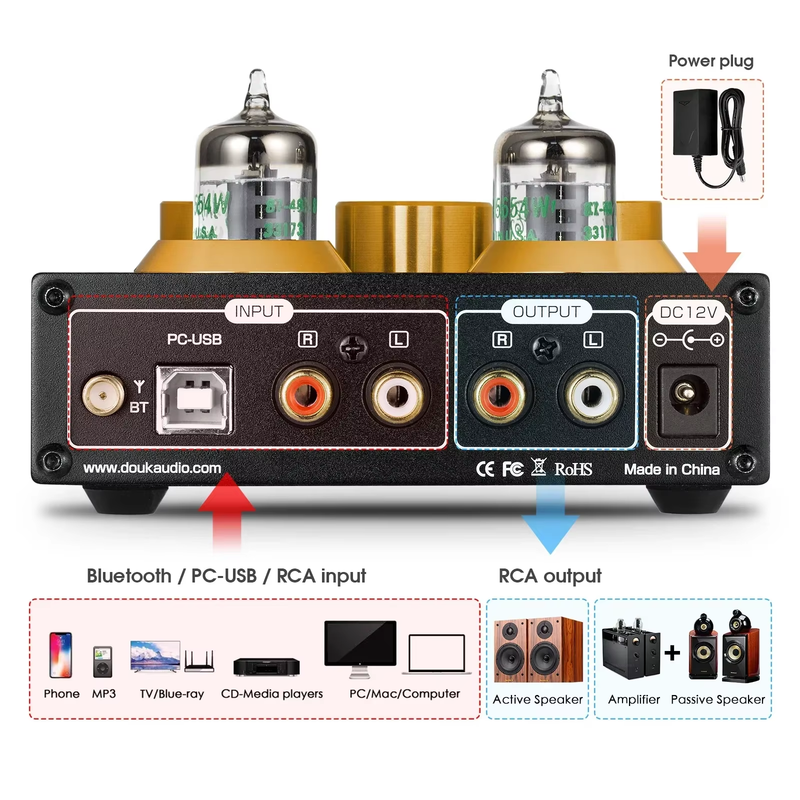

  • With 3 kinds of audio input(Bluetooth/USB/RCA) and 2 kinds of output(RCA/3.5mm headphone), P1 can be used as HiFi tube Preamp, USB DAC or headphone amp with HiFi clear, warm, dynamic, sweet tube sound, bringing extremely high-quality listening experience.

  • Bluetooth 5.0 (QCC3034) supporting APTX-HD lossless transmission. PC-USB (CM6642) supporting 24bit 192KHz and compatible with Windows/Mac/Linux system, matching well with many audio devices such as iPod, Phone, MP3 players, TV, Blu-ray players, Echo Dot, CD players, etc.

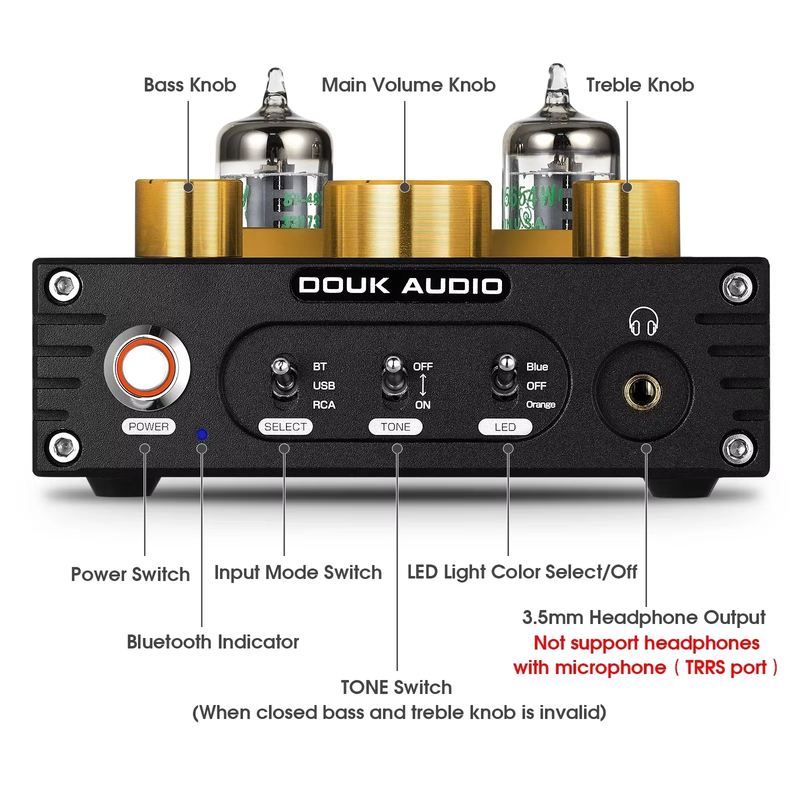

  • Adopting NE5532 op amp+classic 47 headphone amp architecture which can drive 32-300 ohms headphones, and a bypass switch is specially designed to turn on/off the tone control, more convenient to enjoy original sound or obtain more delicate sound with treble and bass control knob, adding much fun and higher playability.

  • Exquisite appearance with proper size, blue and orange light decorating vacuum tube, makes it fashionable and attractive, bringing wonderful auditory and visual enjoyment, very suitable for home and desktop audio system.

Parameters

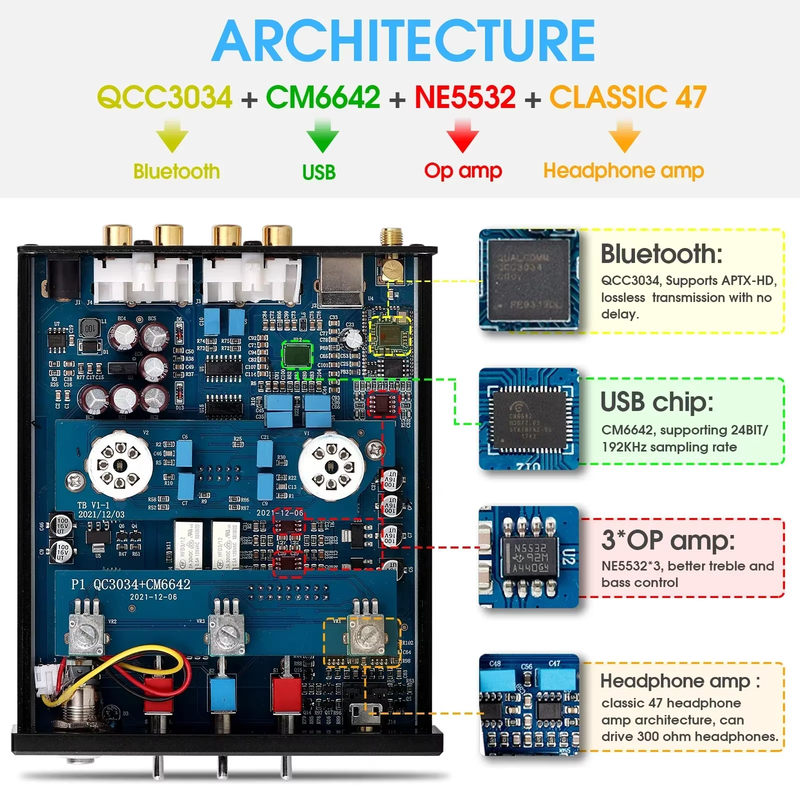

Chip Architecture: CM6642+QCC3034+NE5532+classic 47

PC-USB Input Sampling Frequency

192K/24Bit

THD

0.01%

PC-USB System supported

XP/W7/W8/W10/MAC/Linux

Bluetooth VER

5.0

Headphone matching impedance

32-300

SNR

103dB

Headphone Maxpower output

160mW 32 load

Working voltage

DC12V

Bass & Treble Range

6dB

Product Dimension

180*118*36mm

RCA output level

2.3V

Product Weight

0.47kg

Frequency Range

20Hz-20kHz(3dB)

Package Dimension

240*210*60mm

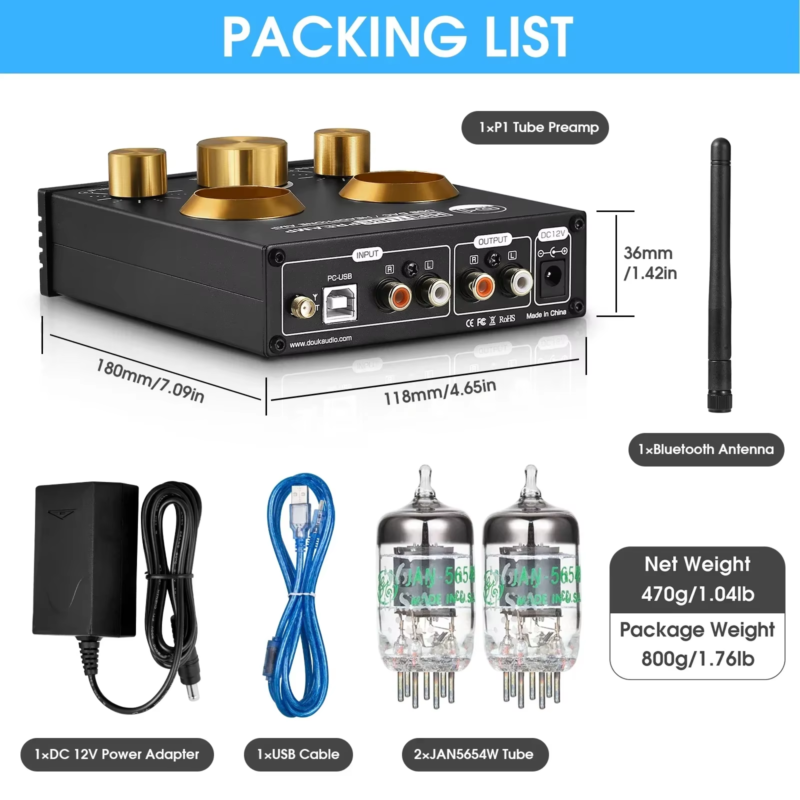

Packing List
  • 1*P1 Preamp

  • 2*JAN5654 Tube

  • 1*Power Supply

  • 1*USB Cable

  • 1*Bluetooth Antenna

  • 1*Manual
