NOYAFA NF-8601 Network Cable Length Tester POE/PING Testers LAN Ethernet Cable T

NF-8601 Product parameters

Product Description:

Brand: NOYAFA

Product Name: Network Cable Length Tester

Type: NF-8601

Dimension(LxWxD): 230 x 200 x 95mm

Port: RJ45, RJ11, BNC

Test length: RJ11,RJ45 ,BNC

Tracking Type: RJ45, RJ11, BNC , and Metal Cable

Battery Type: 3.7V lithium battery

Product Description:

1. 2.8 inches LCD Color screen ,Clear, intuitive and personalization.

2. 3.7V lithium battery power supply ,Convenient, durable, and durable.

3. Tester can save and export 160 groups of data.

4. Three types of line hunting modes: Regular mode, POE mode, and High-power mode

1). Conventional Mode: accurate line hunting, with a detection range of about 3 cm, suitable for most scenarios, compatible with 100M and Gigabit switches, searching for 4-core, 8-core, category 5, category 6, telephone lines, etc.;

2). POE Mode: Used to load and hunt on the POE switch

3). High-power Mode: The maximum detection range can reach 0.5 meters. When the cable is very long, or the buried wire is deeply buried, the high-power mode can be used when the ordinary line finder cannot detect it

Product Features:

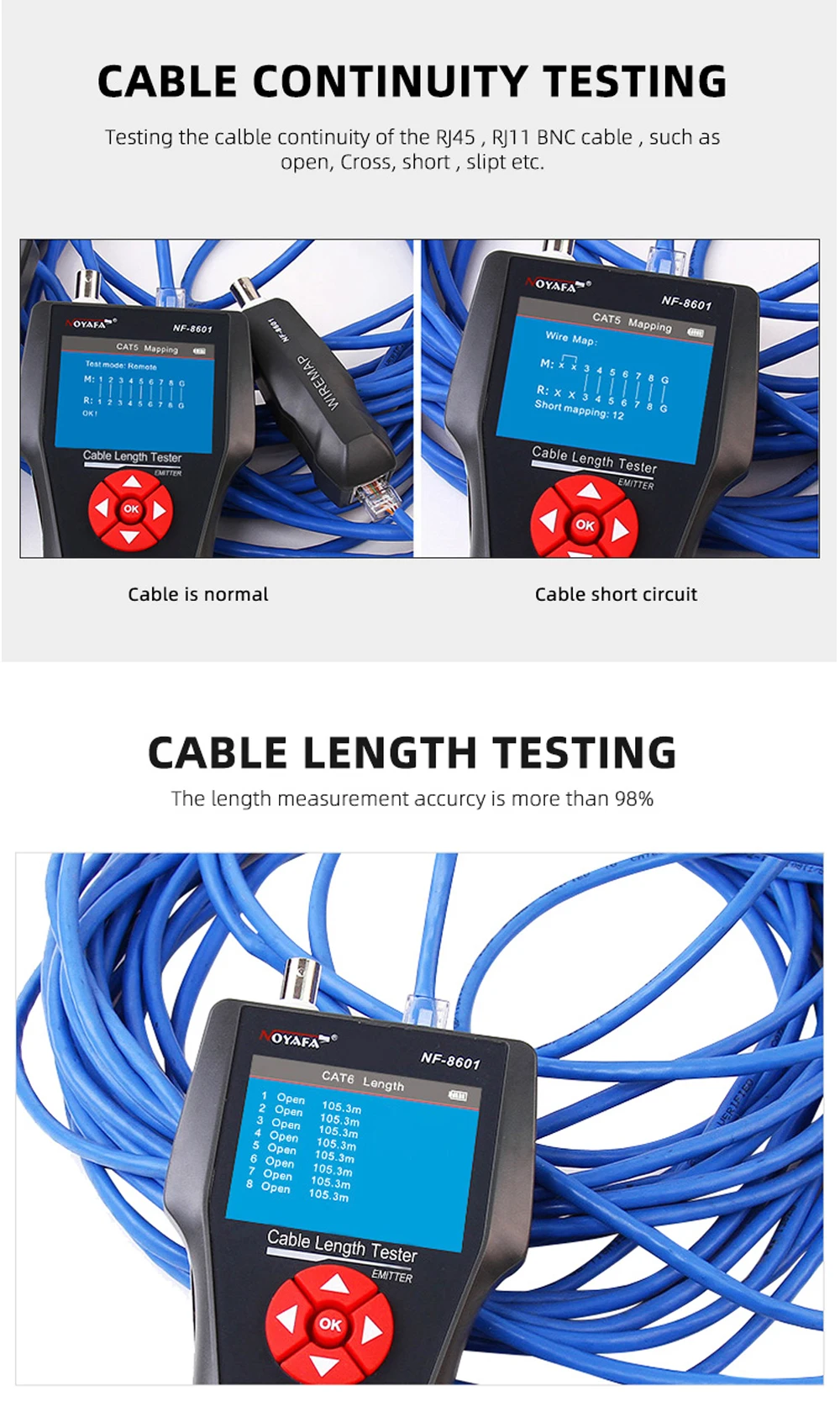

1. Testing RJ11, RJ45, BNC Cable for short circuit, open circuit, cross connection, etc.

2. Test the location of the short circuit point of the network cable.

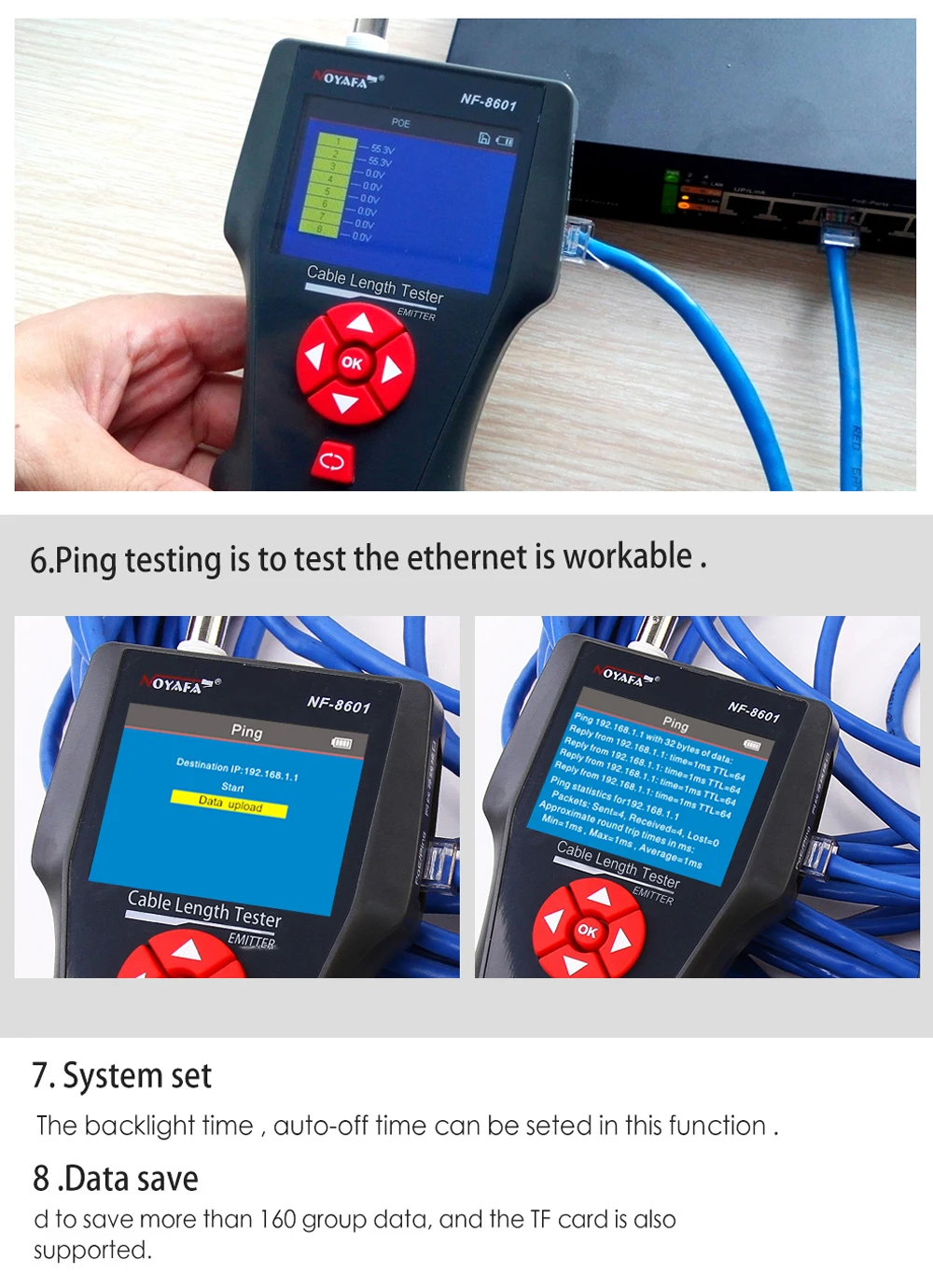

3. PoE / PING / Crosstalk testing.

4. Measure the length of network cable, telephone cable, BNC cable accurately.

5. Trace targeted cable among lots of unknown cables ;

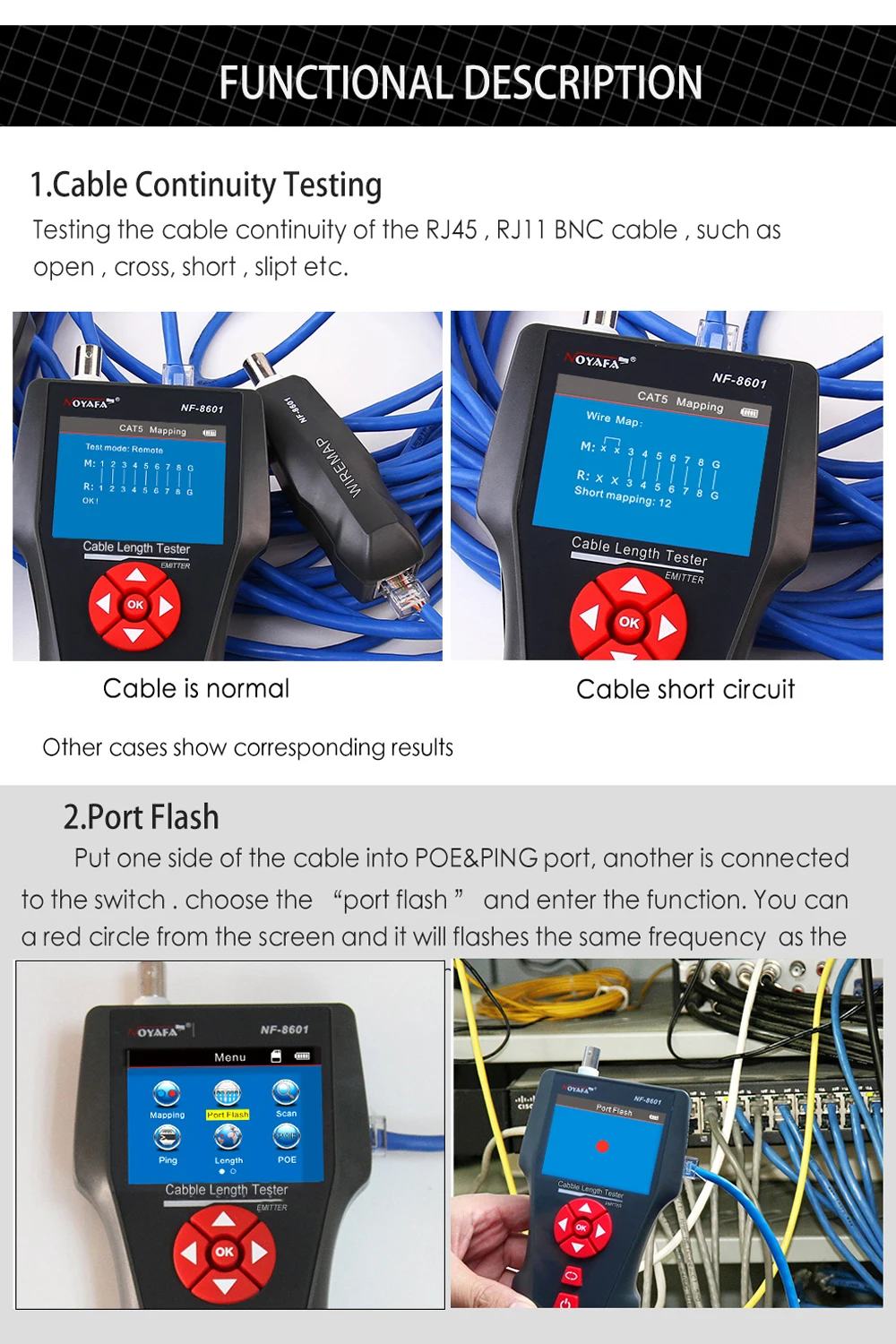

6. Port blink function help trace lan cable connected to swticher or router visually, no need of receiver.

7. Capable of scanning cable on PoE switch without damaging the device.

8. Voltage detecting function.

Package Include:

1 Set x NF-8601

1 Pcs x Telephone line adapter

1 Pcs x Network cable adapter

1 Pcs x Charging adaptor

1 Pcs x Product Instructions

1 Pcs x Carry bag

Please Note:

1. RJ11/RJ45 ports do not use with a PoE Switch or live circuit > 20V DC to avoid burning out the device!

2. Due to the light and screen difference, the item's color may be slightly different from the pictures.

3. Please allow 1-3mm differences due to manual measurement. If you have any questions, please contact us in time.
