Pack of 20 Replacement Steuerpimpel for Dual Turntables
Pack of 20 Replacement Steuerpimpel for Dual Turntables
Regular price
£7.99 GBP
Regular price
Sale price
£7.99 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
WARNING: Operating a turntable with a missing Steuerpimpel will damage the lever that it mates to, even if it appears to be working properly.

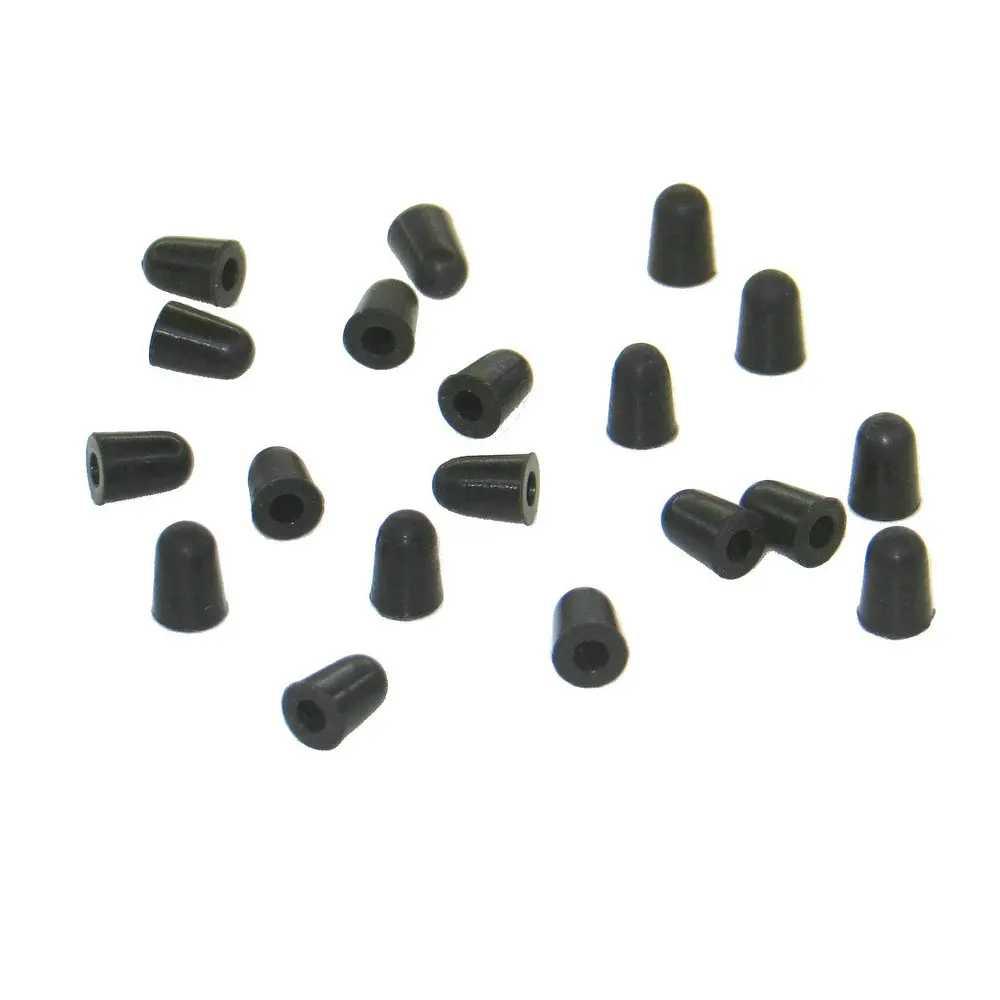

Replacement steuerpimpels for Dual turntables.
For Dual 601, 620, 621, 622, 630, 701, 1220, 1222, 1224, 1225, 1226, 1245, 1249, 2225... and others.

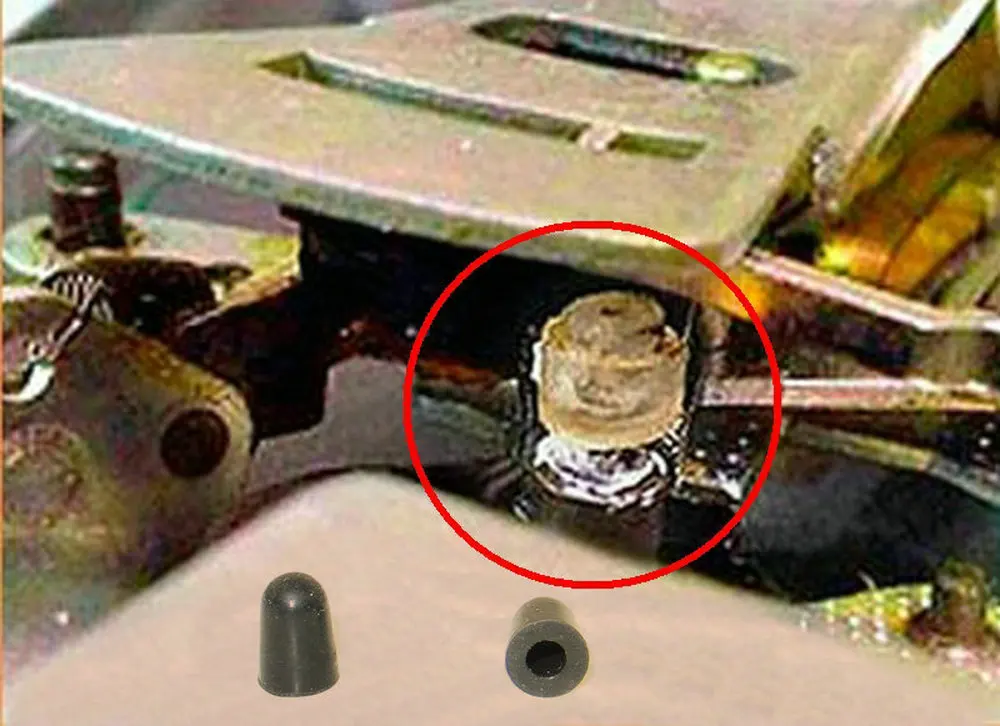

Note the gap between the bottom of the Steuerpimpel Glider Pad and the brass looking sleeve. The silver colored stem or post between these parts moves up and down with the mechanism to create the Start and Stop functions. That 1/8" travel (approx.) is permitted by this properly sized Steuerpimpel Glider Pad.

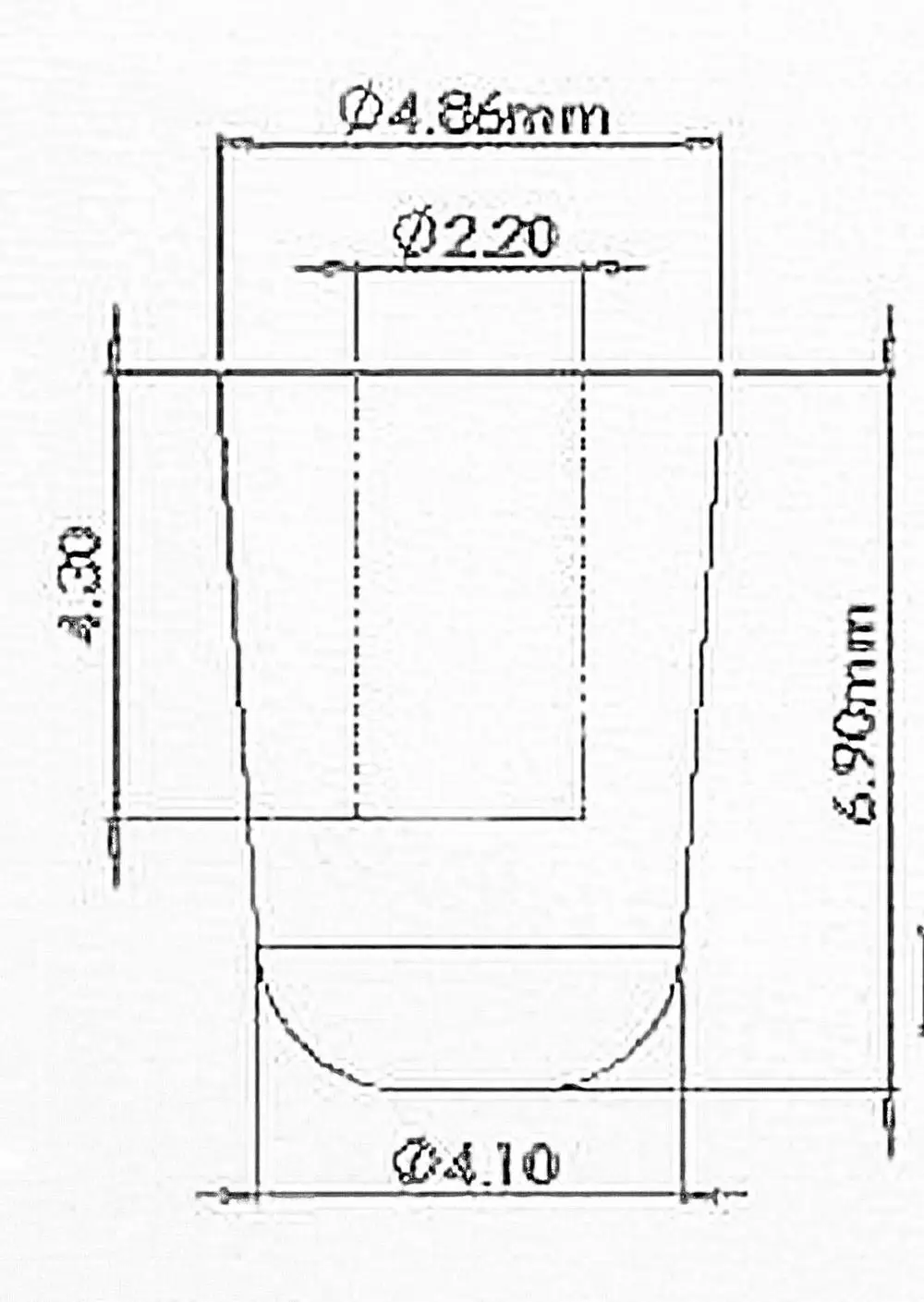

Best I can measure is: 5 mm diameter (about 3/16"), 7 mm tall (about 1/4"). with a smoothly rounded top. The hole in the bottom is bigger than a 5/64" drill and snug on a 3/32"drill. It appears to be a 4 mm deep. It is a relatively soft & squeezable rubber part. Softer than a pencil eraser.
It's a miniature part with maximum impact and importance!
Replacement steuerpimpels for Dual turntables.
For Dual 601, 620, 621, 622, 630, 701, 1220, 1222, 1224, 1225, 1226, 1245, 1249, 2225... and others.
Note the gap between the bottom of the Steuerpimpel Glider Pad and the brass looking sleeve. The silver colored stem or post between these parts moves up and down with the mechanism to create the Start and Stop functions. That 1/8" travel (approx.) is permitted by this properly sized Steuerpimpel Glider Pad.
Best I can measure is: 5 mm diameter (about 3/16"), 7 mm tall (about 1/4"). with a smoothly rounded top. The hole in the bottom is bigger than a 5/64" drill and snug on a 3/32"drill. It appears to be a 4 mm deep. It is a relatively soft & squeezable rubber part. Softer than a pencil eraser.
It's a miniature part with maximum impact and importance!
