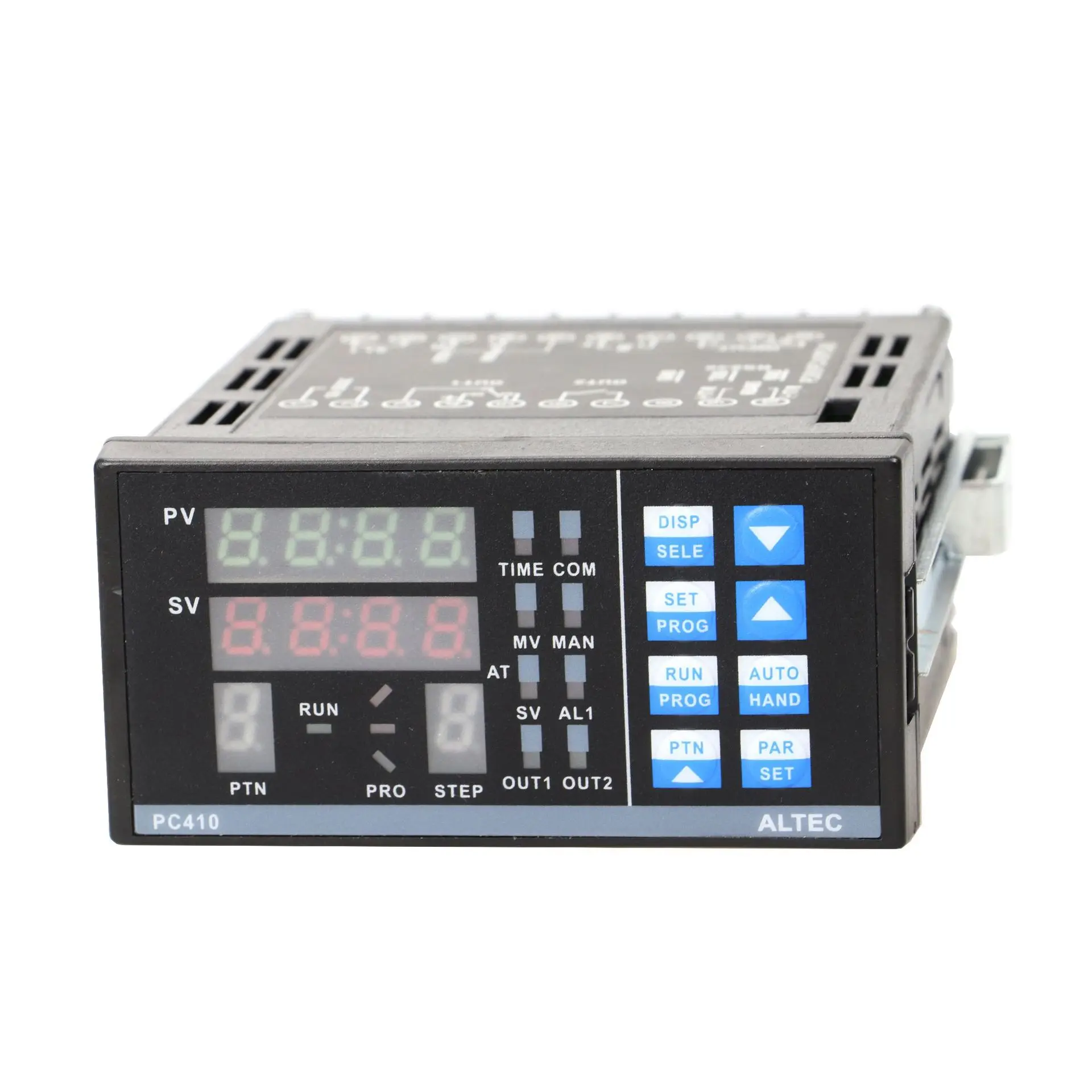

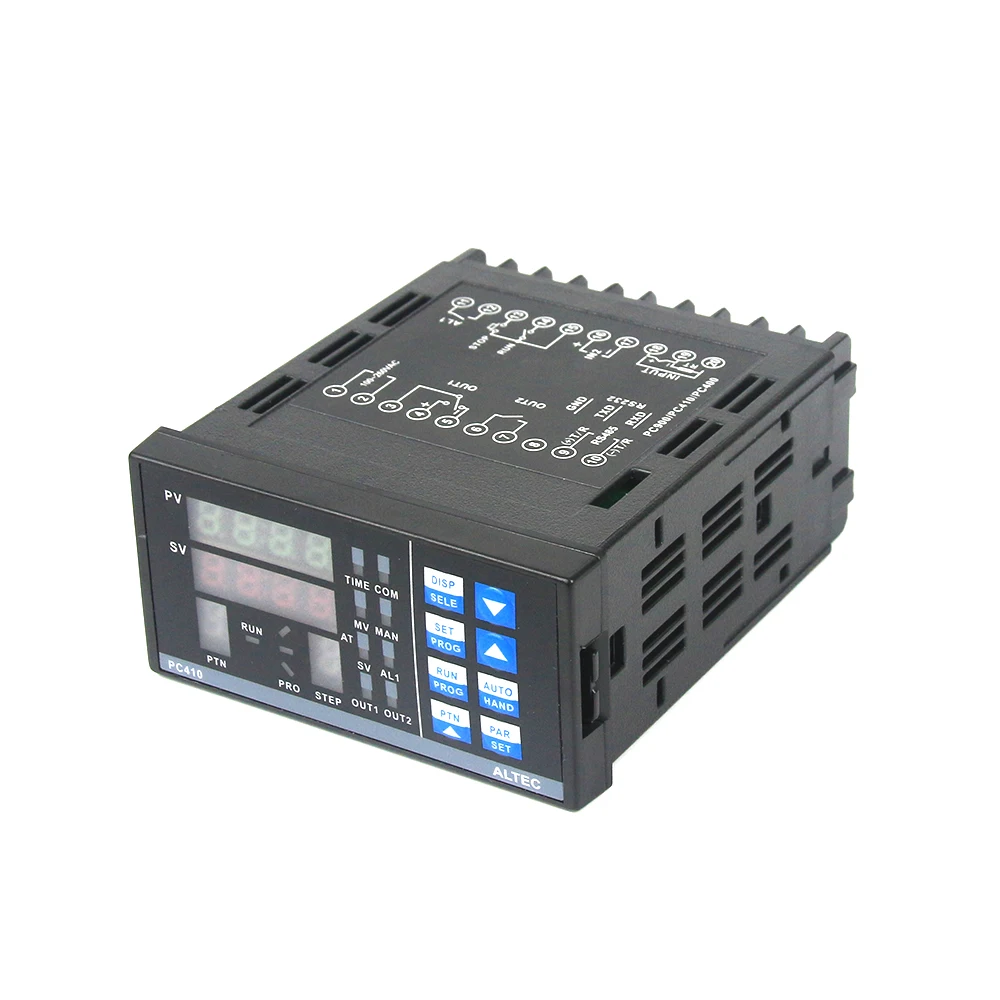

PC410 Temperature Controller Panel Thermostat For BGA Rework Soldering Station with RS232 Communication Module

PC410 temperature controller panel thermostat
BGA rework station.

Description

PC410

Accuracy: +-0.2%FS+1

Cycle:125ms

Input:

Thermocouple: K

Line input: 0~20mA, 4~20mA, -10.0~50.0mV,
0~10V

OUTPUT:

Relay(max.250VAC,3A)

20V/20mA,SSR

Analog,0~10mA, 4~20mA, 0~20mA 0~5V, 1~5V, 0~10V

Curve contrl:

Length: 8 segments programs

curve number: 10

Cycle: 1-200T

Port: RS-232

Voltage: 85~264VAC, 45/60Hz

Working temperature: 0~50 degree, humidity8
