PCS50 Electrical Conductivity Meter Online TDS EC Controller Industrial Water Mo

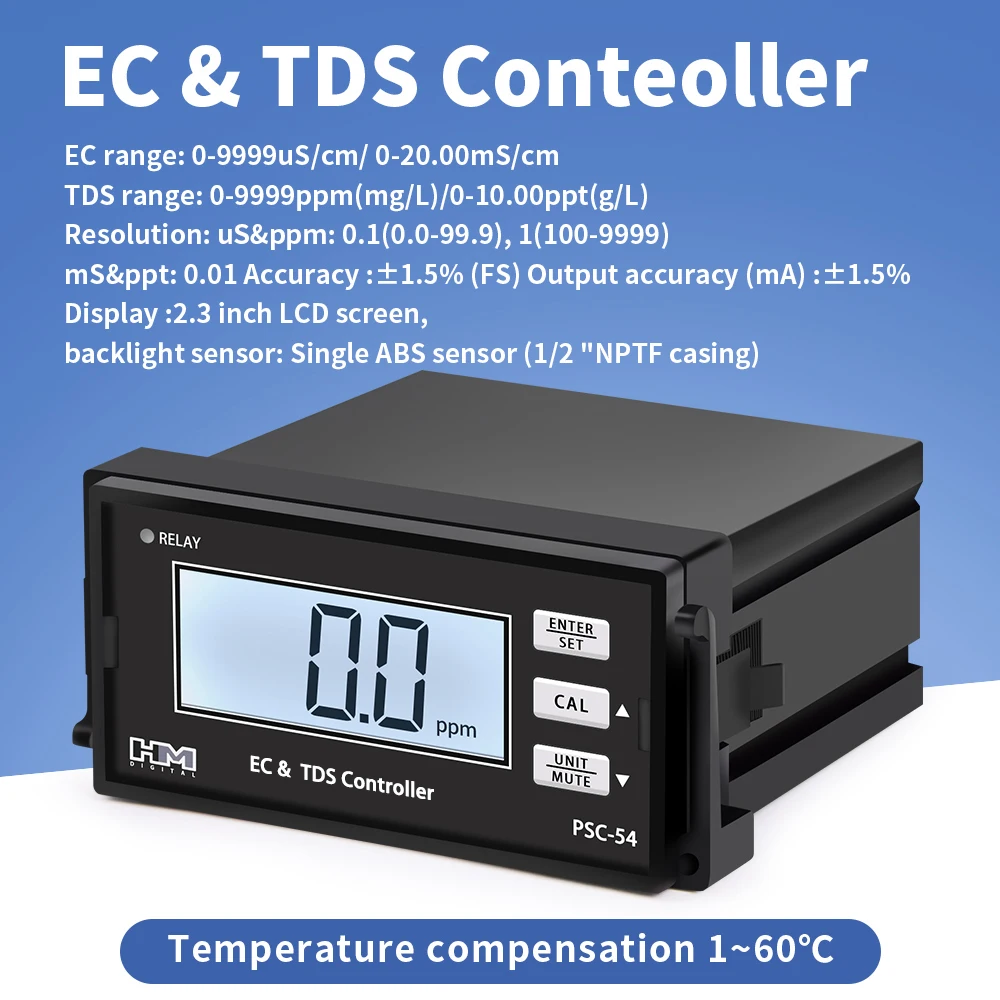

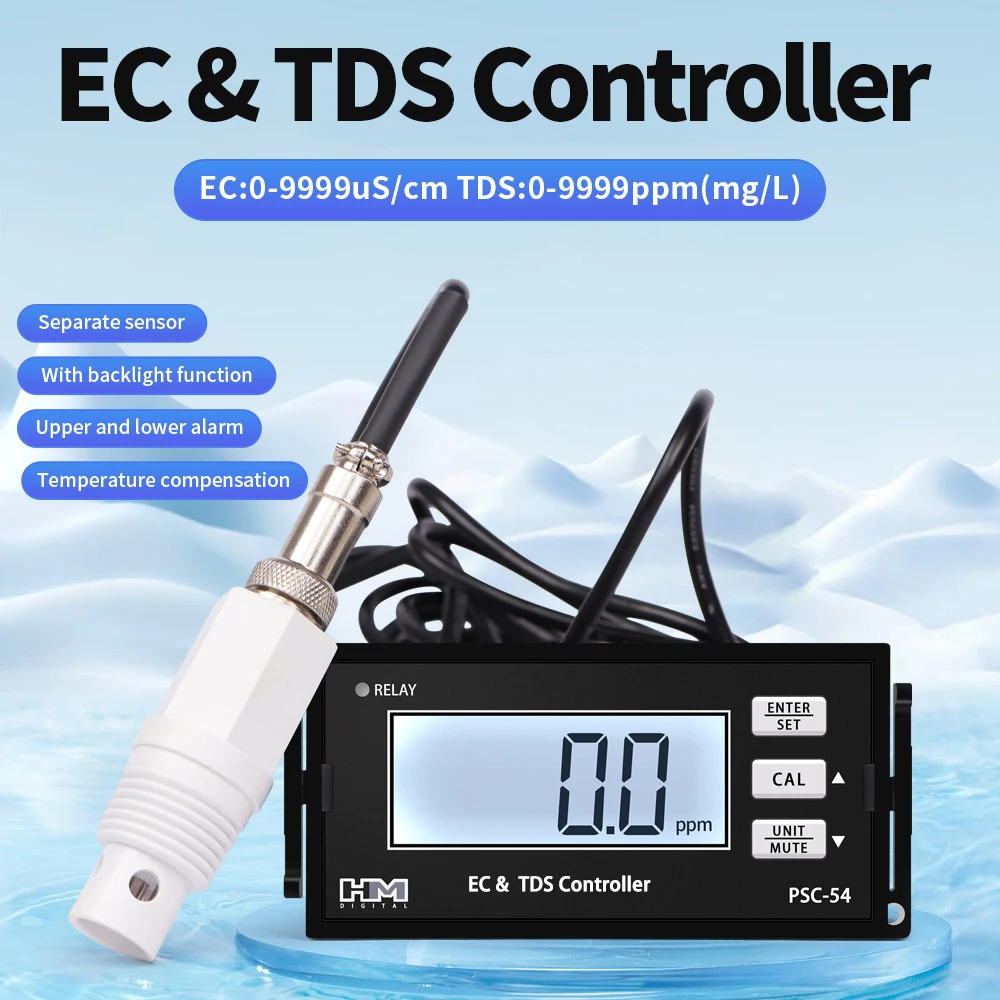

PCS50 Electrical Conductivity Meter Online TDS EC Controller Industrial Water Monitor High Sensitivity Electrode 4~20mA Output

The TDS/EC controller has a maximum set point to help maintain a limit of TDS/EC allowed in the water.If the TDS/EC level rises to the set poit, the controller will activate an alarmand switch the relay, Once the TDS/EC level drops below the set poit, this will deactivate the alarm and switch the relay contacts back to the normal position.

Product features:

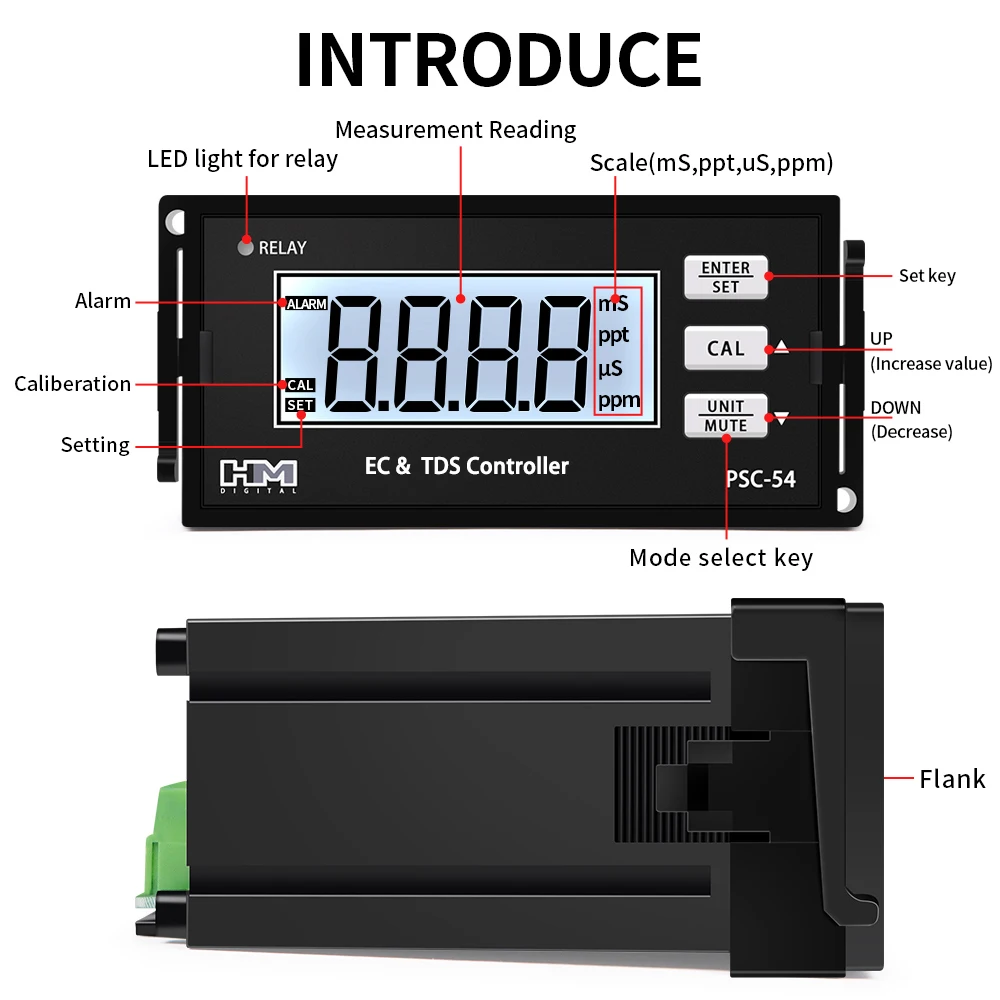

1. Intelligent online conductivity and TDS monitoring and control instruments

2 with backlight function for easy and clear viewing of measurement data

3. Equipped with upper and lower limit alarm relay control function, alarm ON/OFF

4. can increase the output current of 4-20mA (please select model PSC-54)

The product is easy to install and operate, and is widely used for online monitoring and control of various water treatment devices.

Product parameters:

Model: PSC-50/PSC-54

EC range: 0.0-9999us/0.0-20.0Ms

TDS range: 0.0-9999ppm/0.0-10.0ppt

Resolution: uS&ppm: 0.1 (0.0-99.9); 1(100-9999); ms&ppt(0.1)

Accuracy: 1.5%

Temperature compensation: Automatic temperature compensation (1-65 )

Calibration: Intelligent calibration with buttons

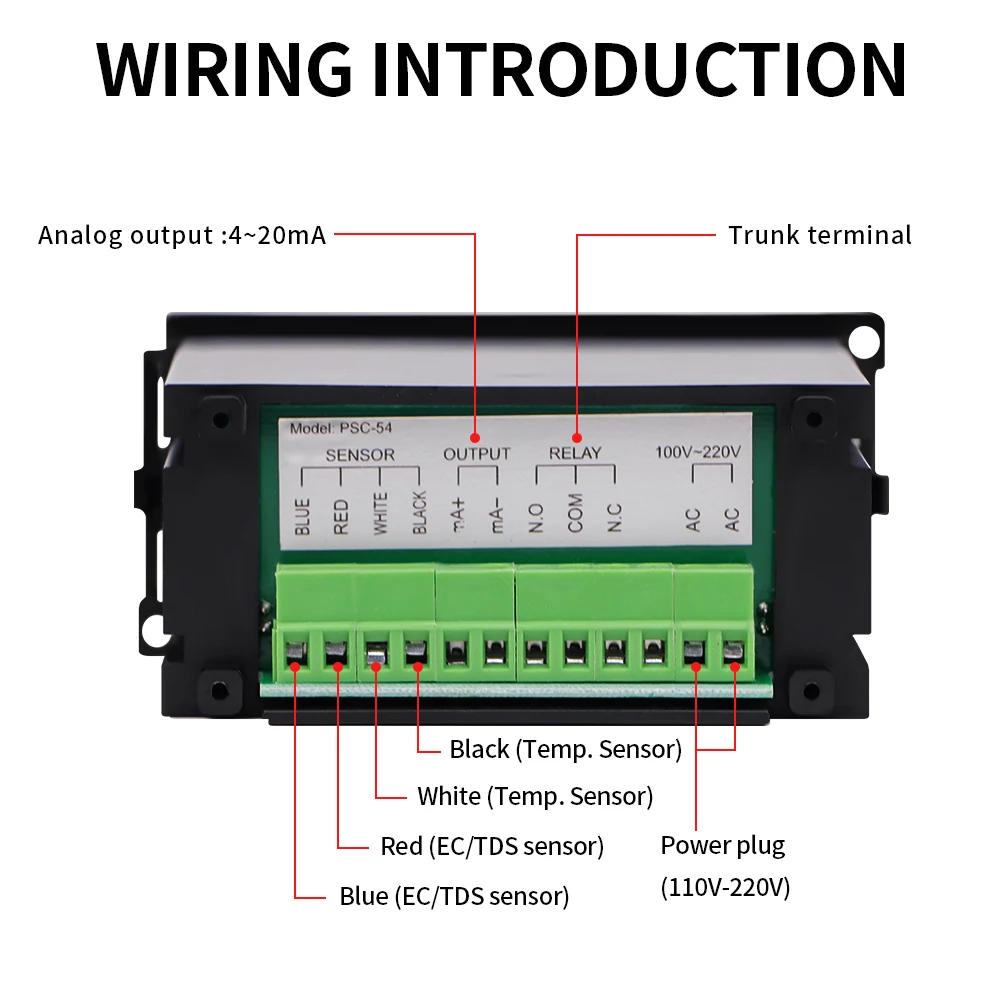

Relay: can control 1 2A, 220V

Alarm: ON/OFF high limit and low limit alarms

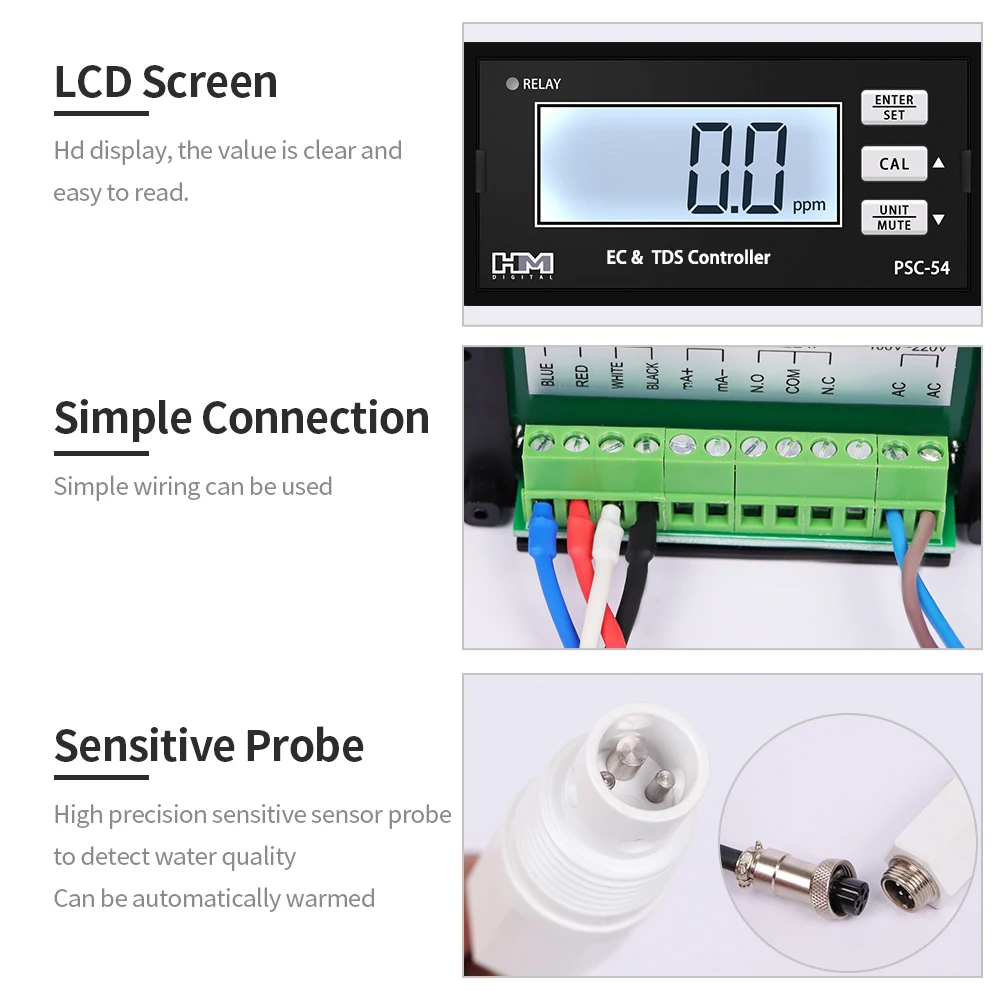

Display screen: Backlit LCD

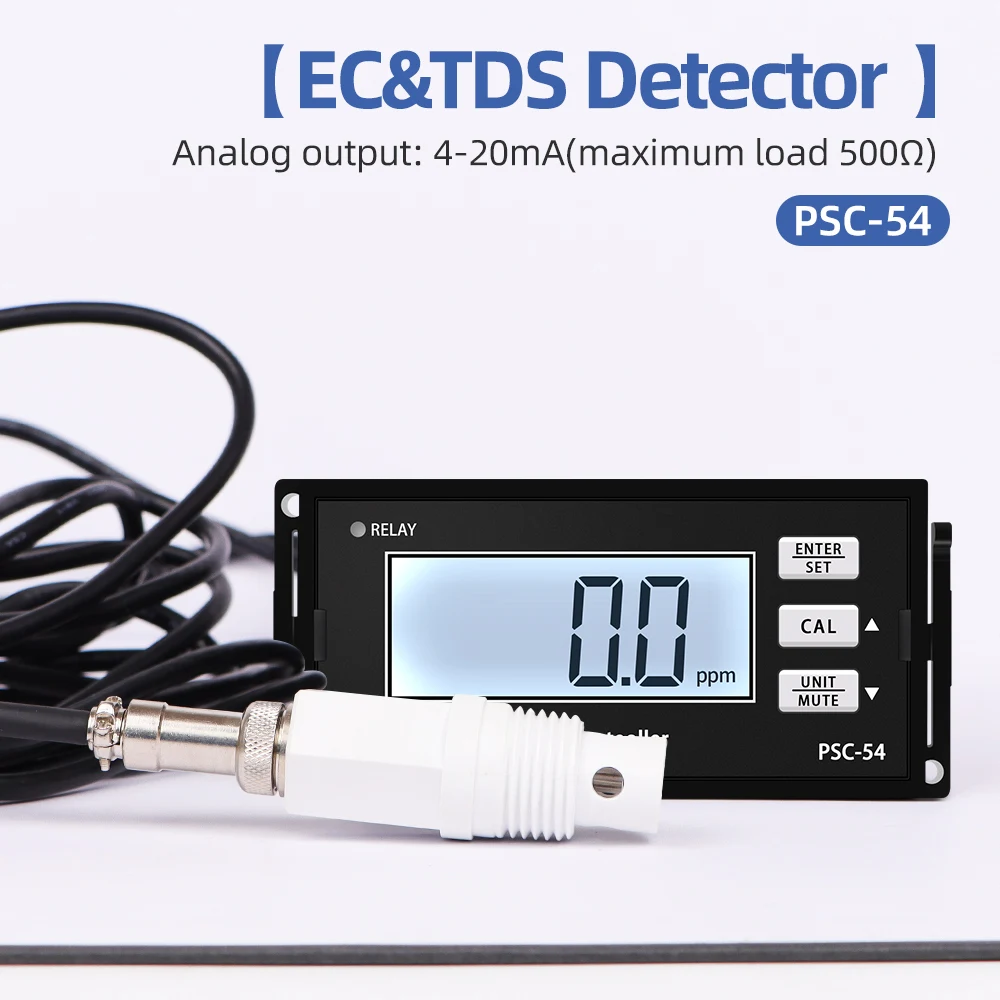

Current output: 4-20mA (DC), please select the model as PSC-54

Sensor: 1/2

Sensing line length: 3m

Working conditions: ambient temperature -5 ~50 , relative humidity 85%

Power supply: AC220V 10% 50/60Hz

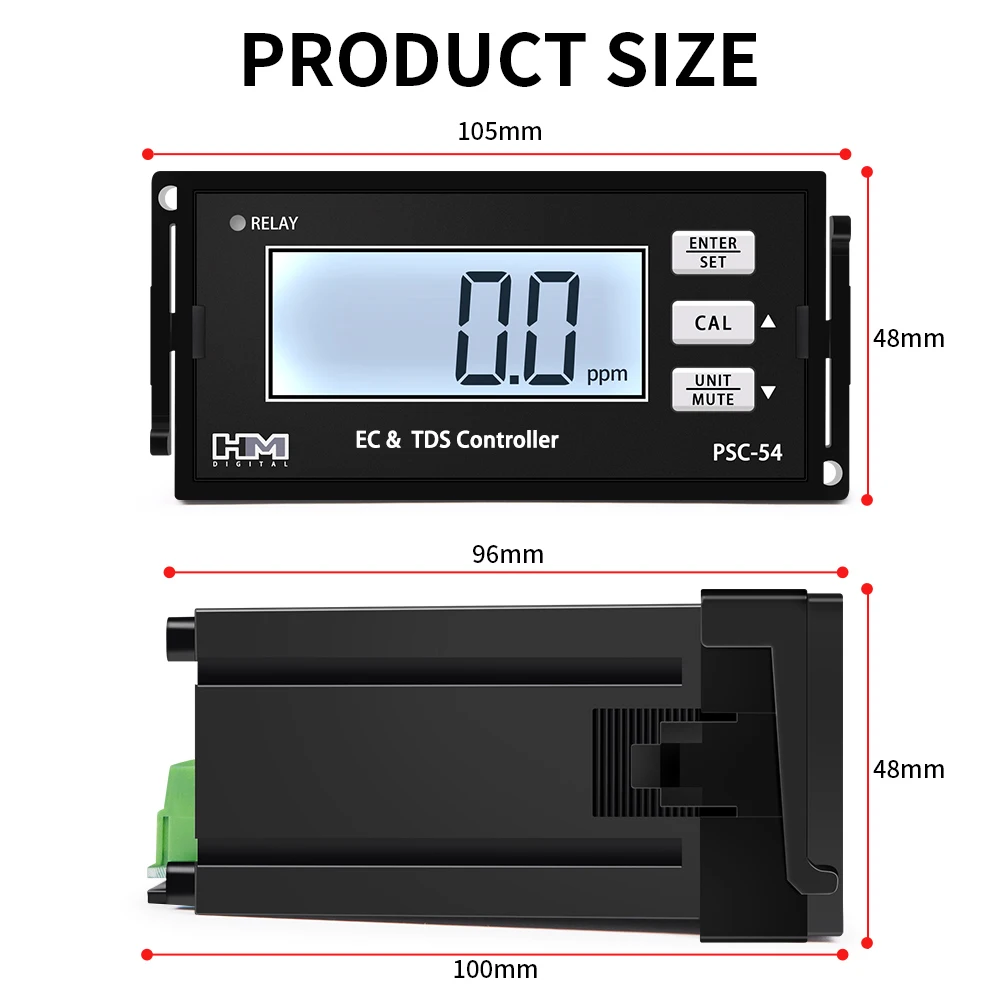

Size: 96 * 48 * 100mm (length * width * depth)

Weight: 267g
