Radiolink Silvery AT9S Pro TX 10/12CH RC Radio Controller RC Transmitter with R9

Note:Mode 2 Left hand

Radiolink AT9S Pro Version TX 10/12CH RC Transmitter Radio Controller Support TBS Crossfire CRSF Protocols for Racing Drone, Quadcopter, Fixed Wing, Helicopter, Car Vehicles and more (Mode 1/2)

AT9S Pro Overview

DSSS* and FHSS* which reduce overall signal interference and allow the AT9S Pro to produce a highly constant and stable transmission signal present on all 10/12 channels.

Setting simplicity,Excellent Anti-interference, Real-time Telemetry, USB upgrade, Voltage Protection, 3ms fast response for 10/12 channels, outstanding range over 2.4 miles(4km) (actual control distance is according the local environment).

AT9S PRO Features:

Excellent Anti-interference: The rc transmitter with DSSS&FHSS working synchronously to keep the excellent anti-interference performance, only 3ms for 10/12 channels response.

CRSF Protocol Supported: On the basis of the RadioLink unique commun

AT9S ProTransmitter Specifications:

• Channels: 10CH/12CH

• Mode: Mode 1 or Mode 2

• Signal: SBUS/PWM/PPM/CRSF

• Frequency: 2.4GHz ISM bands (2400MHz to 2483.5MHz)

• Channel Bandswidth: 5.0 MHz

• Spread Spectrum: DSSS&FHSS/CRSF

• Modulation Mode:QPSK

• Adjacent Channel rejection: >38dbm

• Transmission Power:

  DSSS & FHSS <100mW(20dbm)

  CRSF: 10mW/25mW/100mW/500mW/1W/2W(Optional)

• Operating Current: DSSS&FHSS < 90mA@12V

• CRSF Depends on the transmission power select

• Operating Voltage: 7.4~18.0V

• 4096 Section Precision

• Screen: 2.8 inches 16 colorful screen, 240*320 pixels

• Channel: 12 channels , all 12 channels are customized

• Size: AT9S Pro 183*100*193mm

• Weight: 0.88kg

• Control Range:4 kilometersin the air (Maximum range is tested in an unobstructed area free of interference)

• Compatible receivers:

  12CH - R12DSM, R12DS,

  10CH- R9DS, R6DS,R6DSM

  CRSF Protocol: Receiver from BLACKSHEEP

R9DS Receiver Specifications

• Signal: SBUS,PWM

• Channel: PWM 9 channels, SBUS 10 channels

• Control Distance: 900 meters on ground,1500 meters in the air

• Working Voltage: 4.8-10V

• Working Current: 38-45mA(input voltage: 5V)

• Size: 43*24*15mm

• Weight: 11g

Package Included:

• AT9S Pro 2 Mode x 1

• R9DS Receiver x 1

• Radiolink Lanyard x 1

• Mode 1/2 Changing Parts x 1

• Simple User Manual x 1

AT9S Pro Over View

Button Introduction:3 In 1 Multi-function Port:

Support wireless training & most of simulator & TBS crossfire protocol

Suitable for Multiple Models:

Drone, Quadcopter, Fixed Wing, Helicopter, Car & Boat Vehicles and more.

It keep your transmitter safet even if you accidentally connect the wrong positive and negative poles.Friendly Warning Alarm:

Low RSSI, low voltage and throttle position alarm, with DD sounds, vibration and words remind you on outdoor readable LCD.

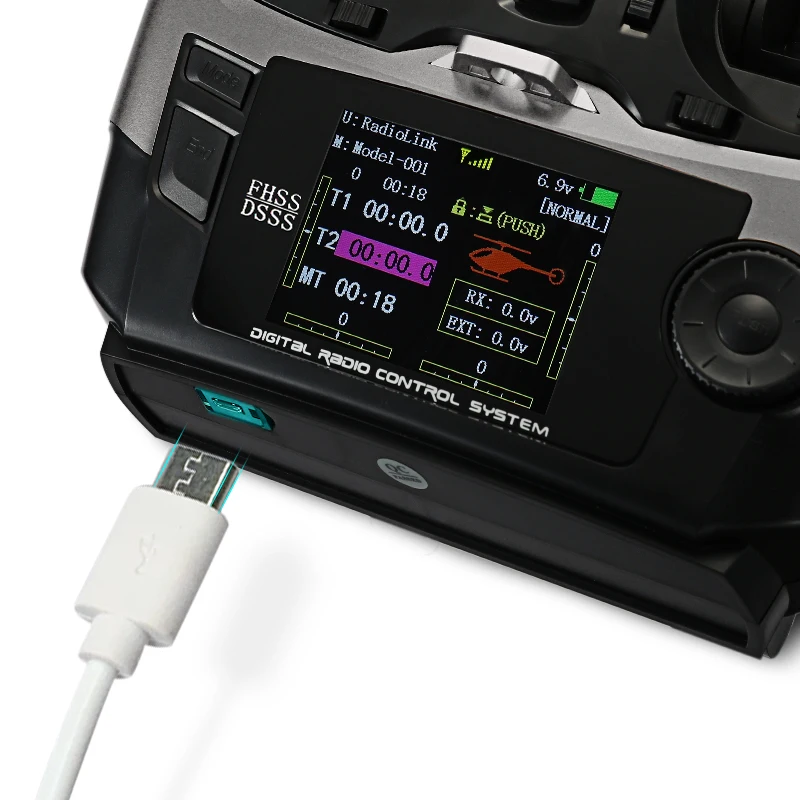

USB Upgrade:

Easy upgrade by USB cable.

Product Color Show:
