RC Micro Camera FPV AIO 5.8G 25MW 40CH 800TVL Transmitter LST-S4+ FPV Camera wit

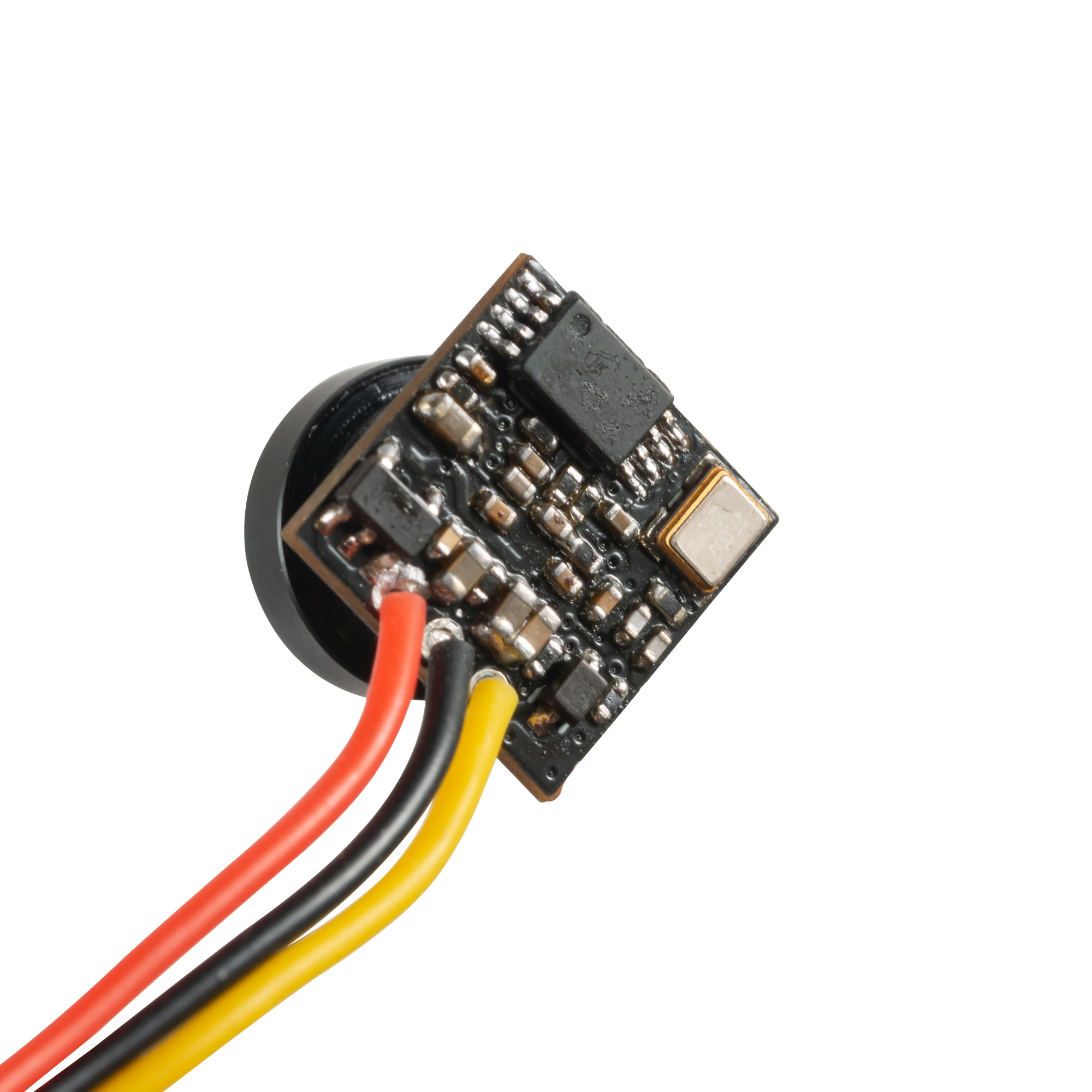

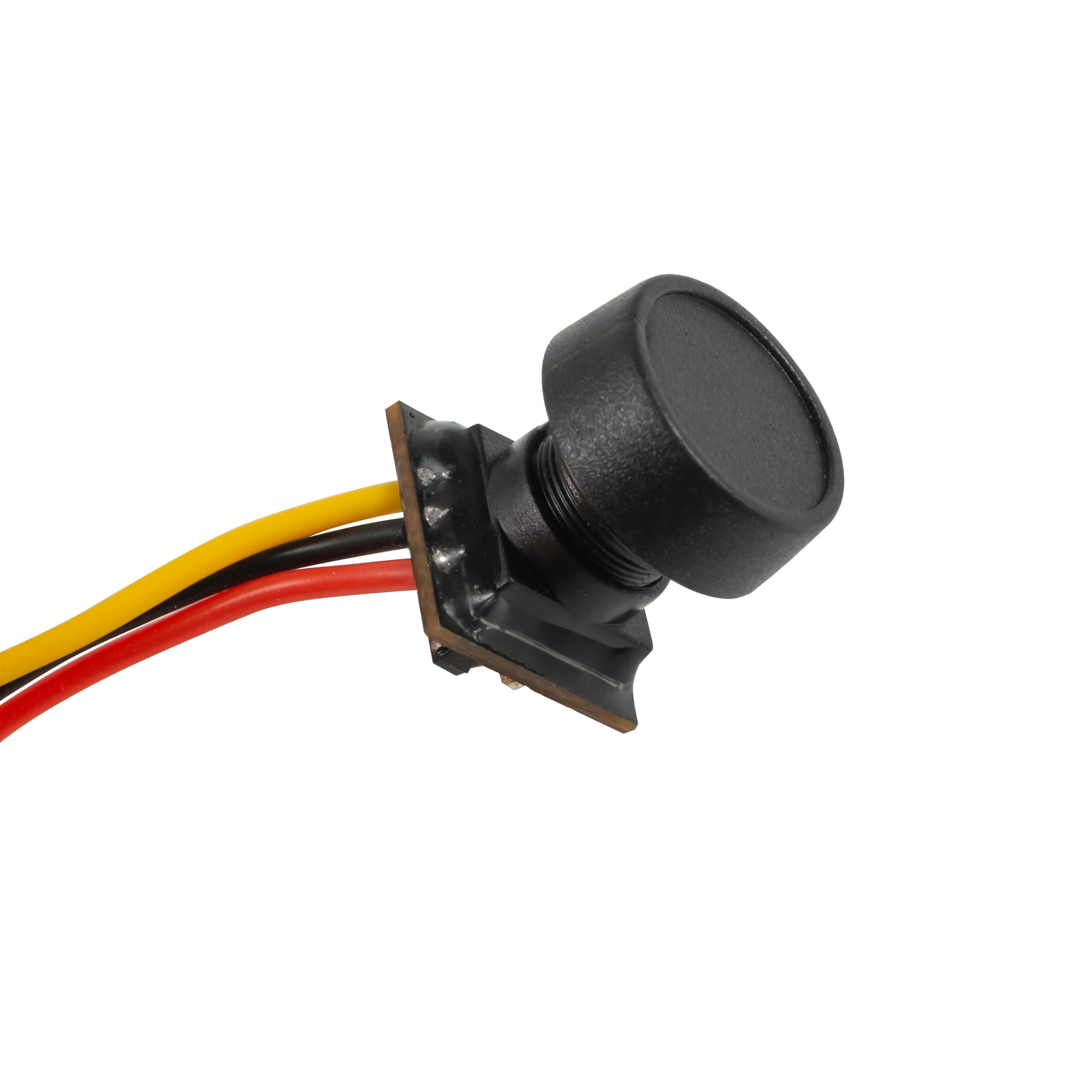

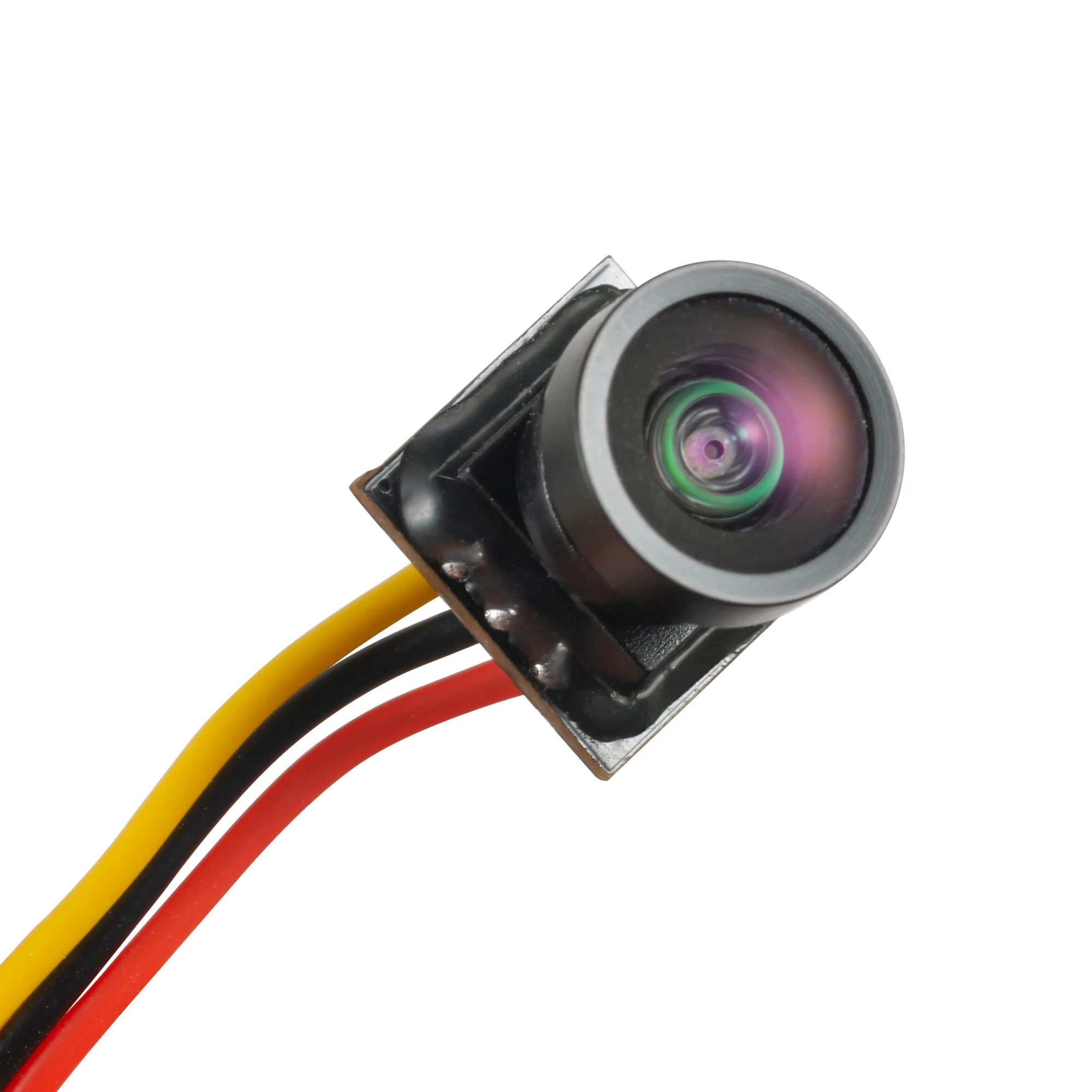

FPV Camera

Sensor: 1/4 "CMOS
Lens: M8 800TVL Lens
Angle: 150 FOV horizontal viewing angle of 170 DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)

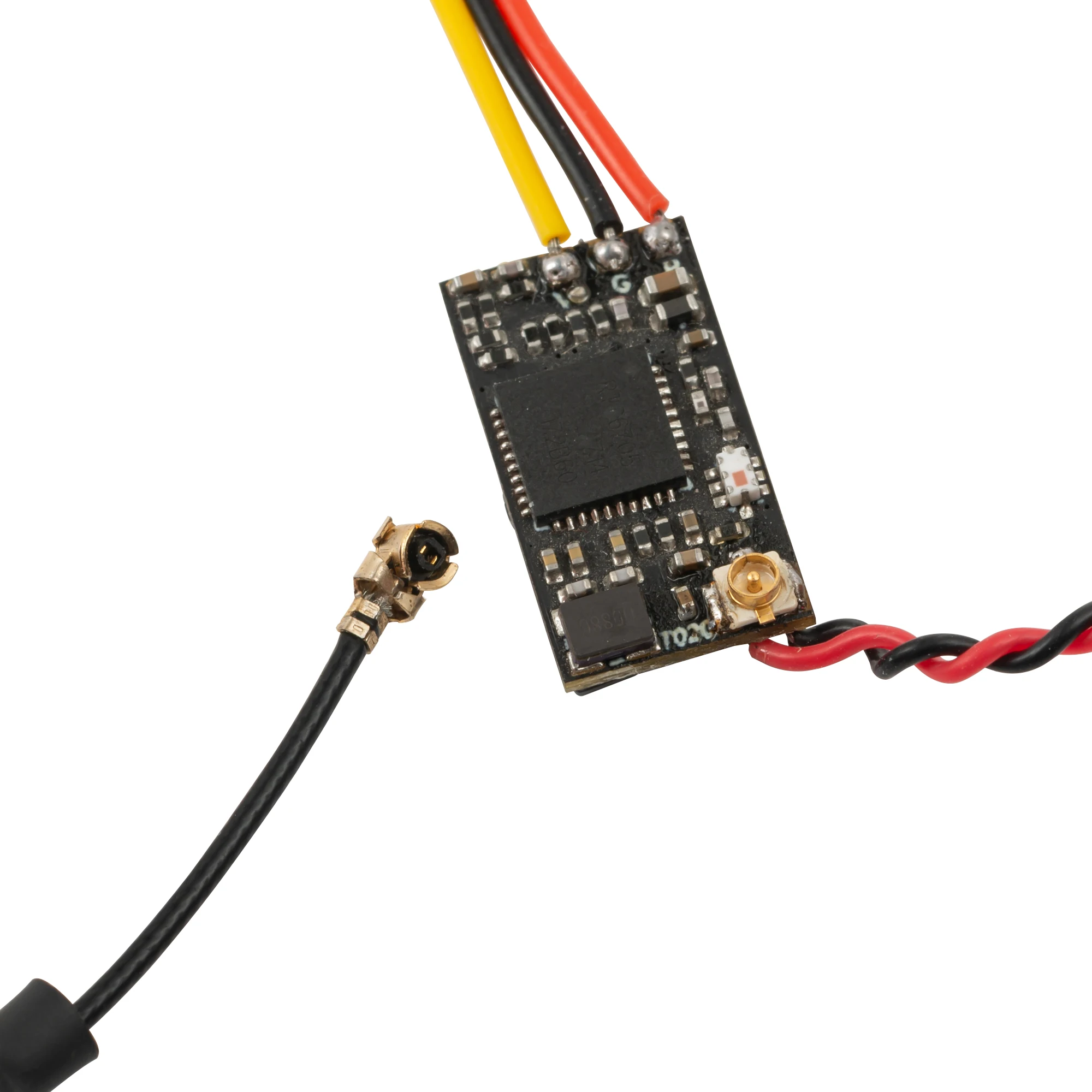

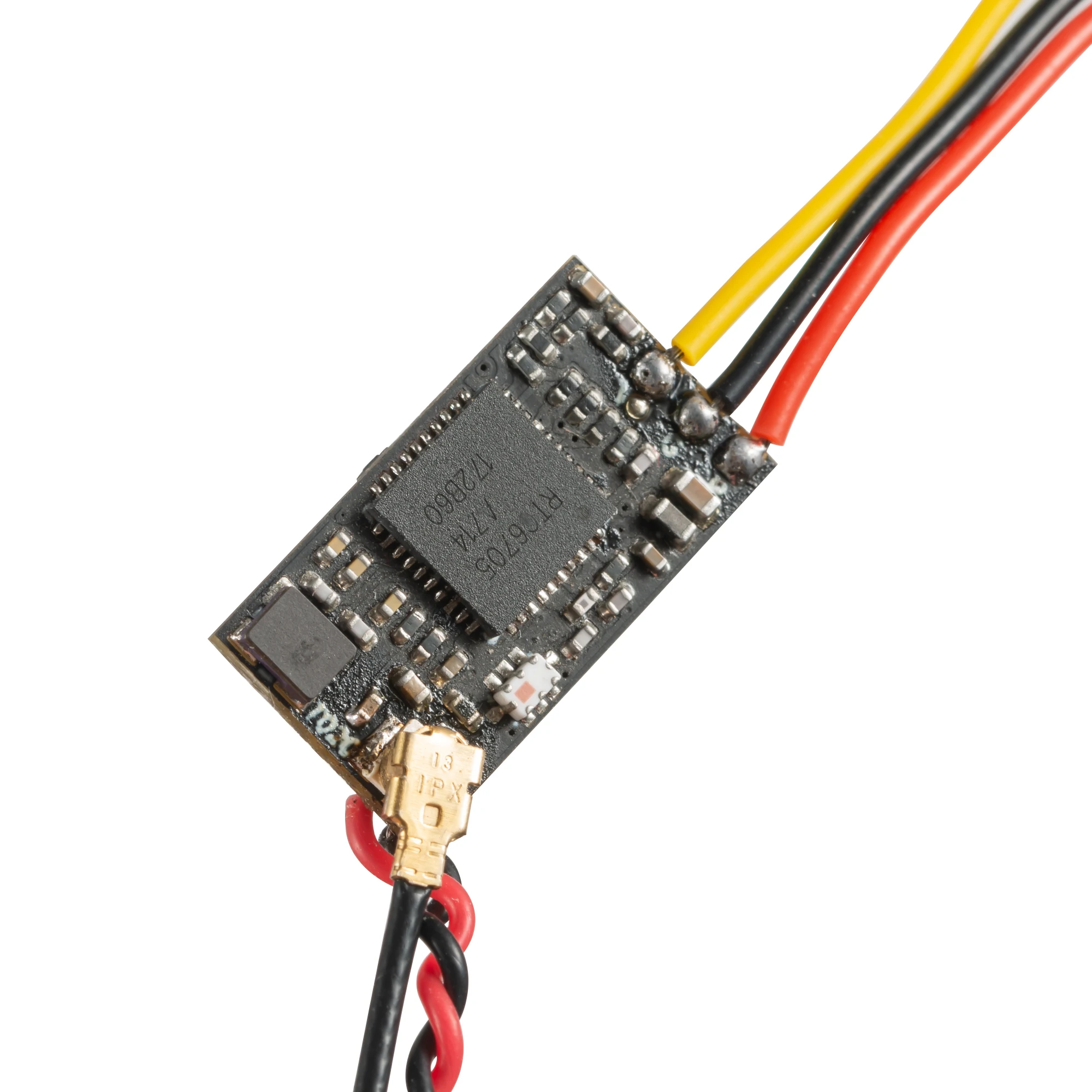

Video Transmitter

Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW

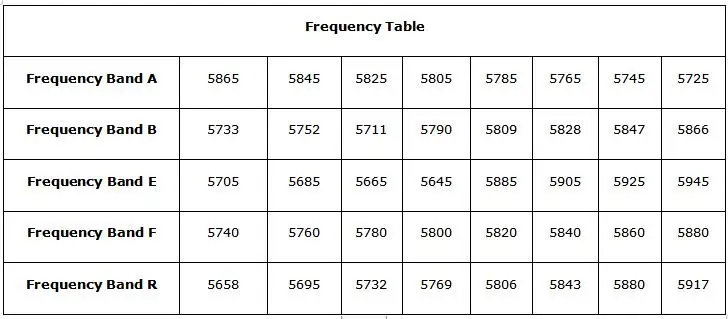

Wireless Channel: 40CH

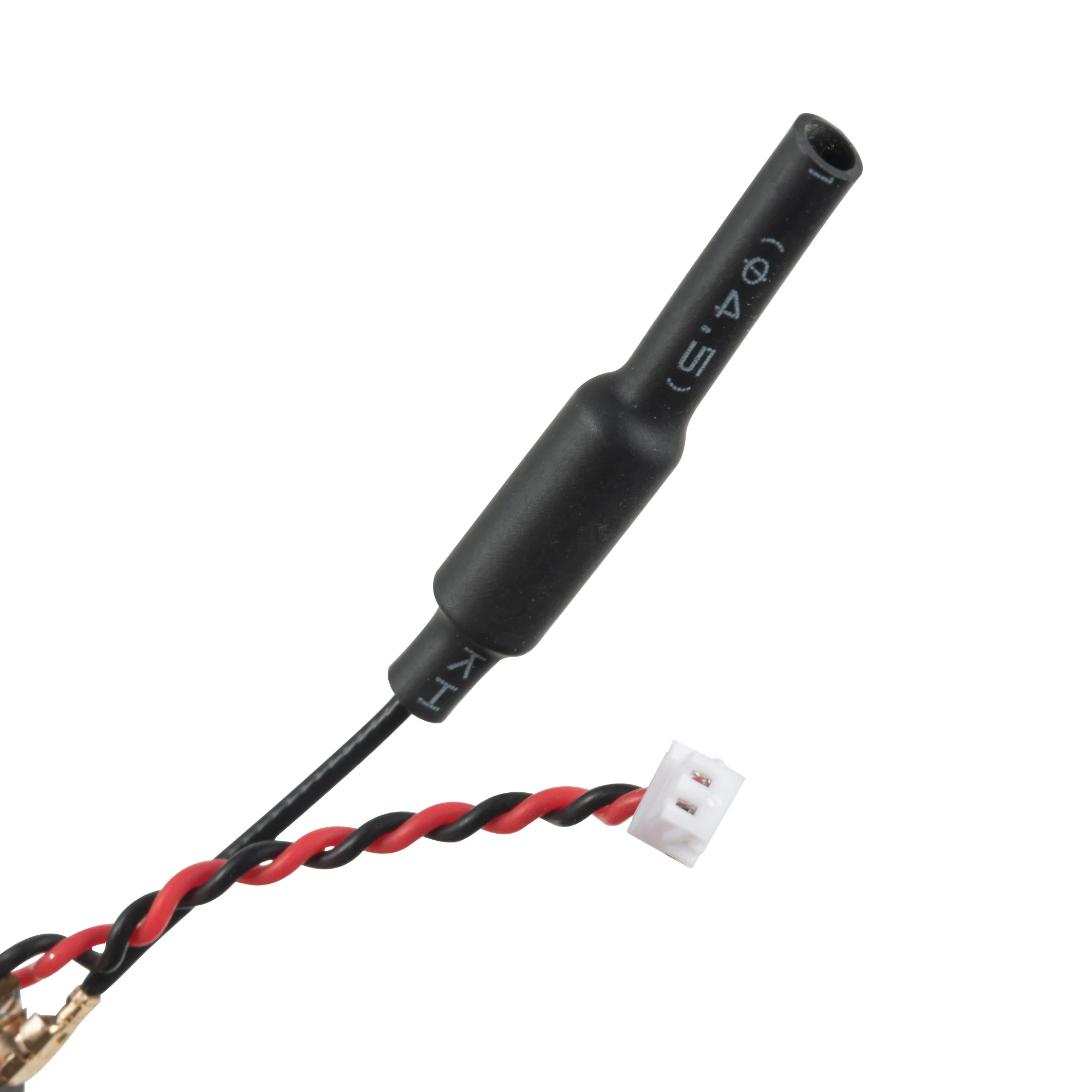

Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz

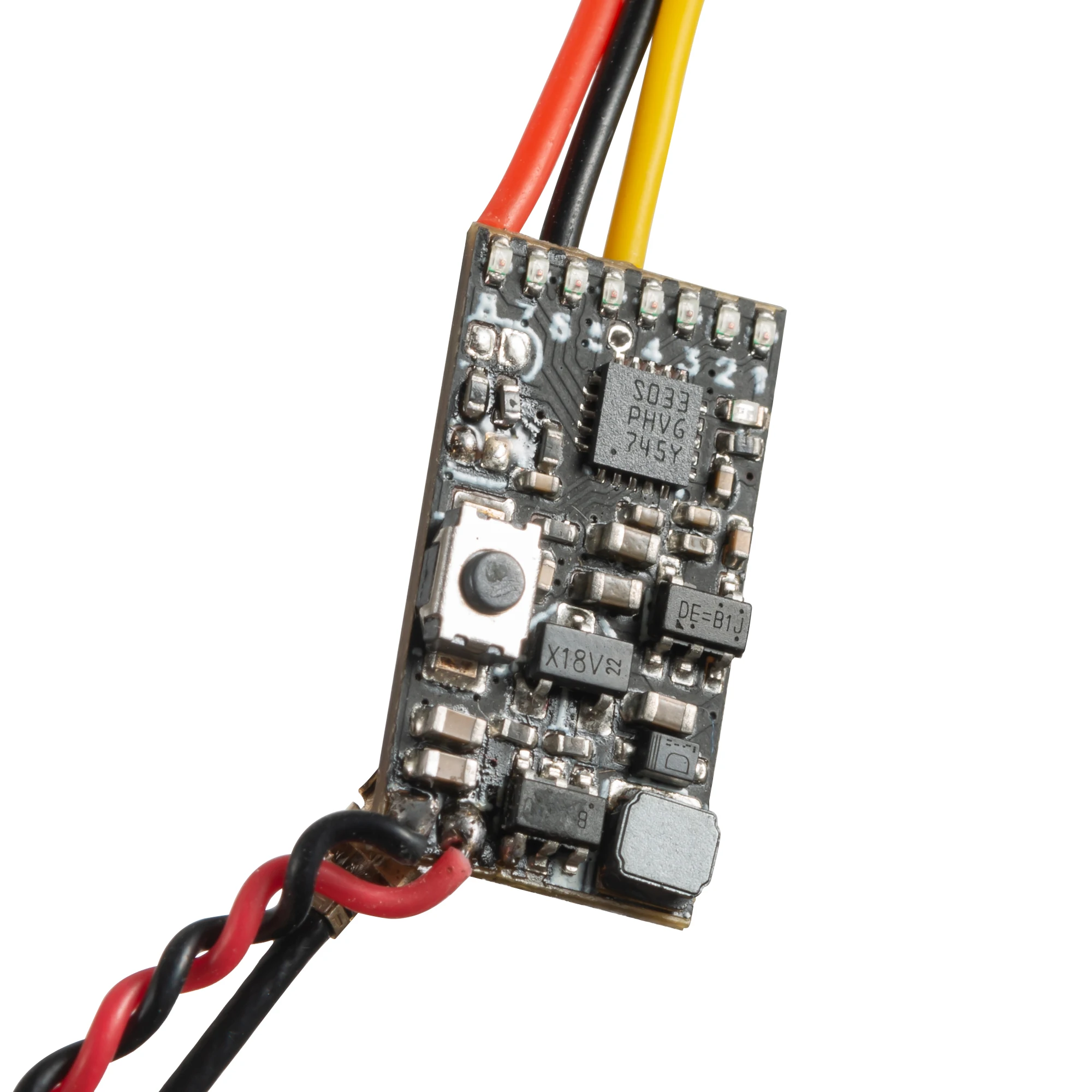

Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change bands A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)

Body

Weight: 3.6g
Size: 18x16x16mm (without antenna)

Feature:

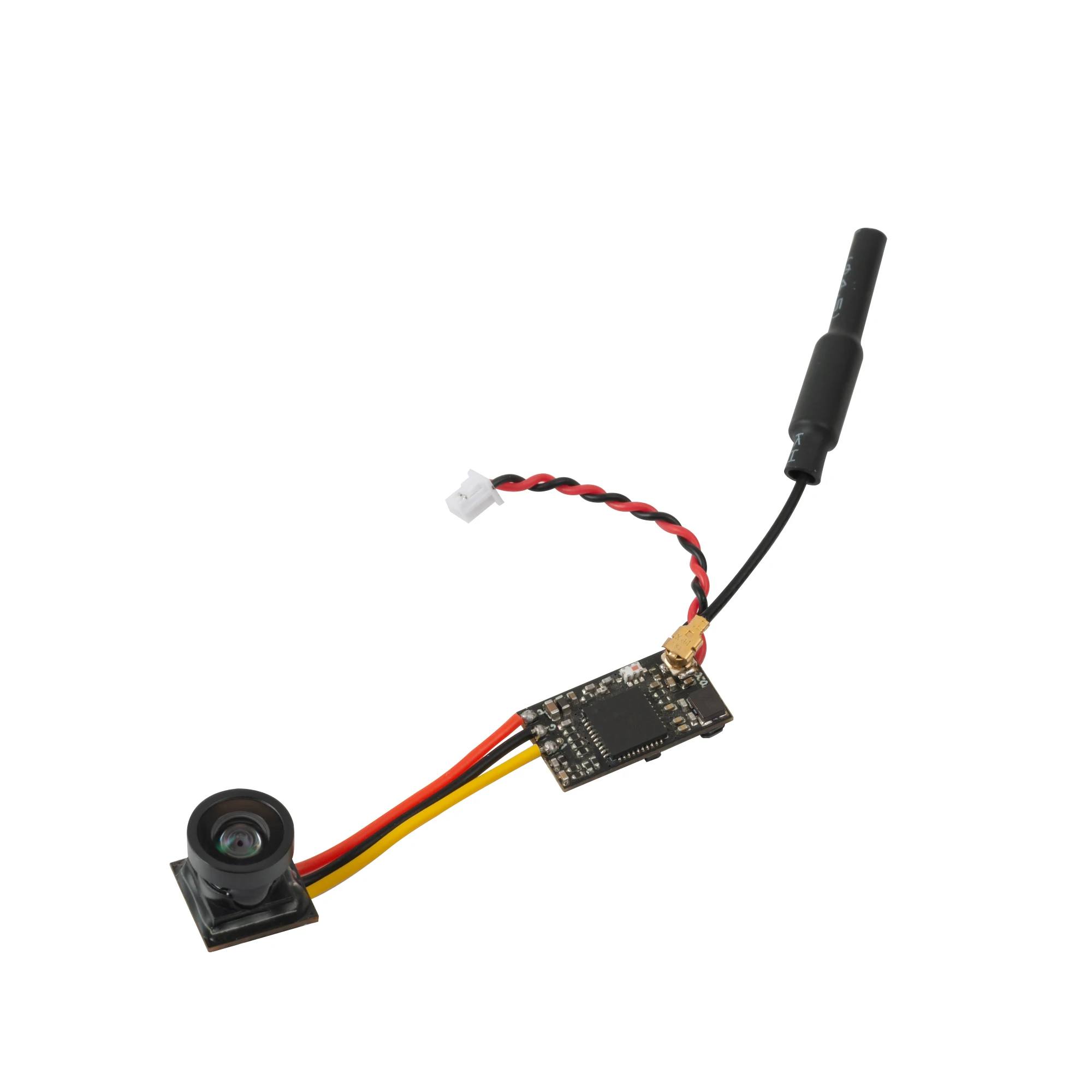

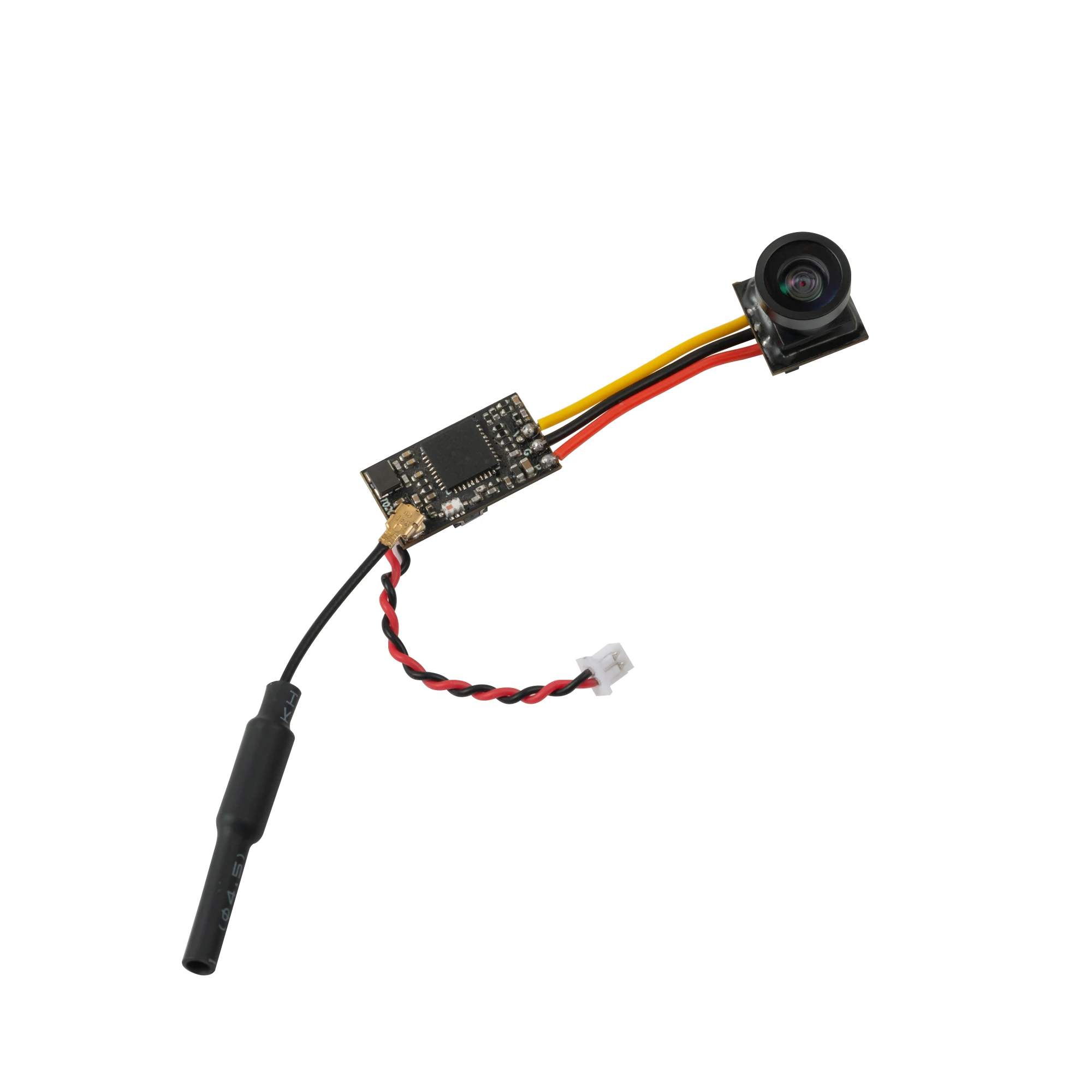

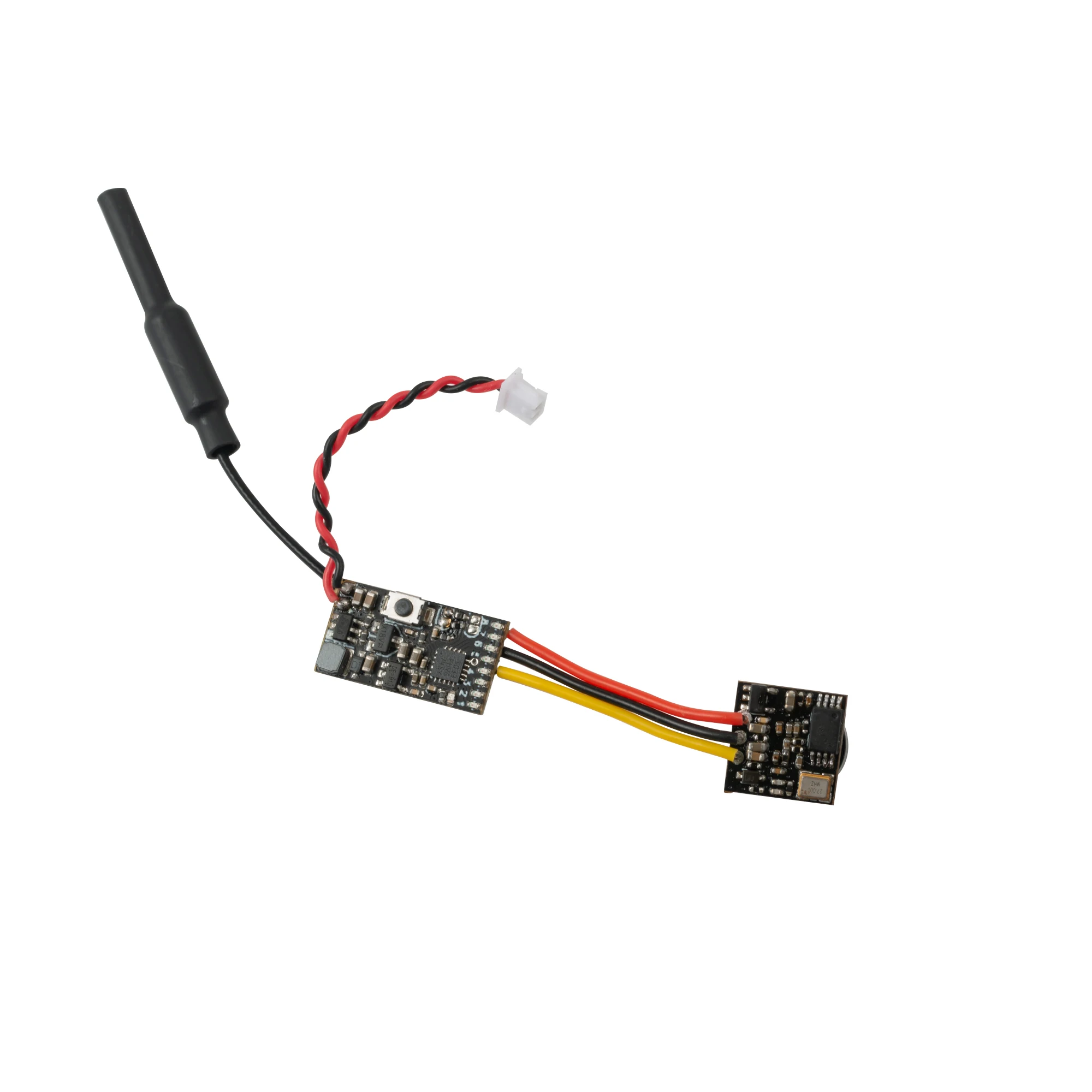

AIO FPV camera, transmitter , antenna all 3 functions in one limit size and weight
150 FOV horizontal viewing angle of 170 DFOV diagonal perspective
Five bands 40 channels with Race band

Package Included:
1 X S4 AIO FPV Camera
1 X wiring harness
1 X User Manual
