9imod Waterproof Brushless /Coreless Digital Servo 51KG 45KG 35KG 25KG 180/270/360 Degree Aluminum Case Digital Metal Gear HV servomoteur for RC Car servo in Toys & Games.


Description:

The 9imod Digital Waterproof servo,adopt Brushless/coreless motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,6.0V ~8.4V Operation Voltage Range,It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!(with 25T metal servo arm)


Tips:Our 360 degrees servo built in adjustable potentiometer.So servo is the left and right of the middle locus are 180 degrees, not 360 degrees rotation.



Features:

1.Metal Gear Servomotor:Equipped with Stainless Steel Gears, Full CNC aluminium Shell aluminium Shell, Less Noise, light weight.Dual ball bearings.


2.Waterproof performance:IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 degrees, Excellent linearity, precision control.


3.Widely Use Digital Servo:The steering servo 360/270/180 Control Angle optional,Compatible with Crawler 1/10 , 1/8, 1/12,Traxxas,Trx4,scx10,scx10 ii RC Car / Robot / Boat and other remote control models.


4.6.0V ~8.4V High voltage.High performance digital High Voltage Brushless.50kg RC Servo operate voltage is 10.0V ~15V .(The 14V High voltage servo needs to be supplied with extra power).


5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (79g)


Specifications:

Brand:9imod


Model:BLS-HV45MG(45KG), BLS-HV35MG(35KG),BLS-HV25MG(25KG)BLS-HV50MG(50KG)BLS-HV51MG(51KG) optional


Color:Black


Dead band width:1 usec

Gear Material:Metal Gear

Case Material:Aluminum Case

Control System:PWM Control (1500usec in the central point)

Operation Voltage Range:6.0V ~8.4V

Operation Temperature Range:-20C~ +60C

Circle:100 milion times without load

Operation Travel:605

Limit angle :180 5

Direction:Re-clock wise/ Pulse Travel 5002500 sec

Diver type:Mos Drive

Motor Type:Brushless motor

Potentiometer Type:Direct Drive

Amplifier Type:Digital Control

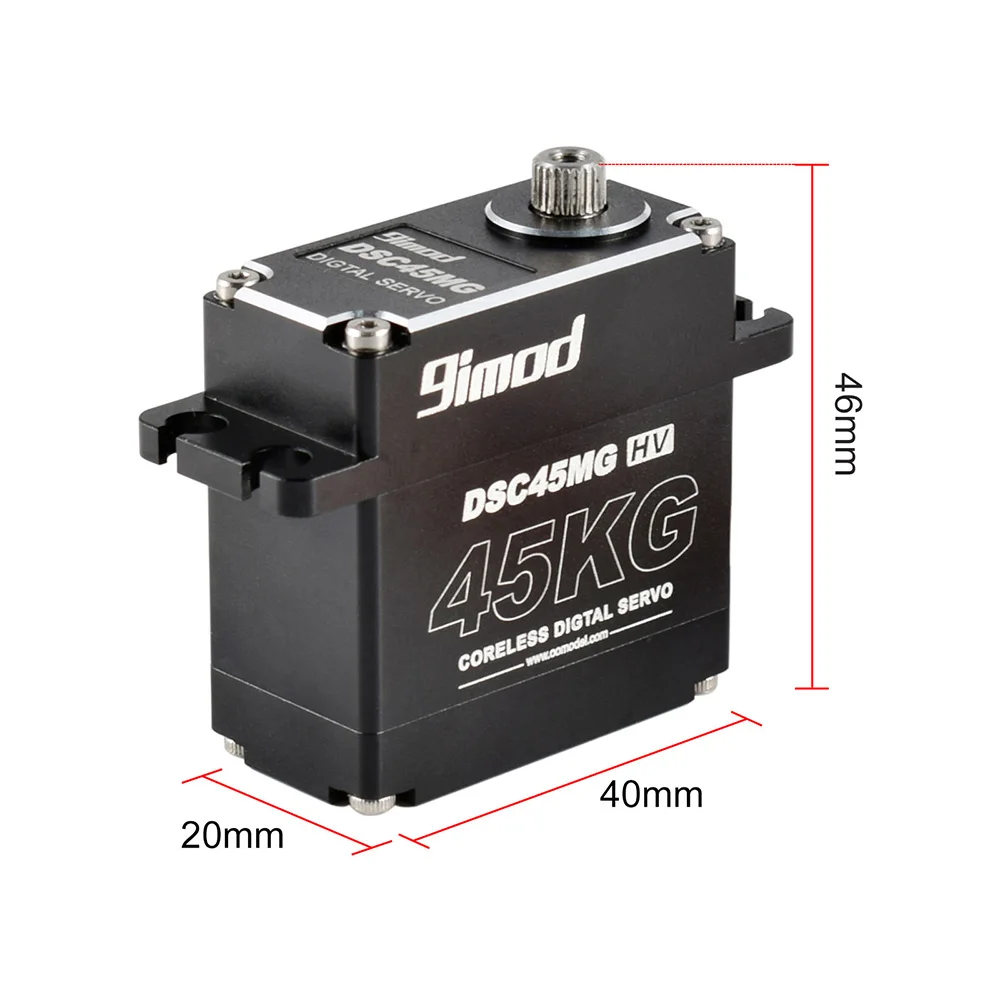

Dimensions:40x20x46mm

Weight::75g (without servo horn)

Standing Torque:0.12sec/60,35kg-cm@6.0V 0.11sec/60,45kg-cm@8.4V

Idle Current:450mA@6.0V 600mA@8.4V

Running Current:5000mA@6.0V 7000mA@8.4V

Ball Bearing:2BB

Connector Wire Length: 300MMJR Plug

Connector Wire Gauge:22AWG
