Solar Panel MPPT Charge Output 5V 12V 18650 Replaceable Battery Solar Cells 25W

Options

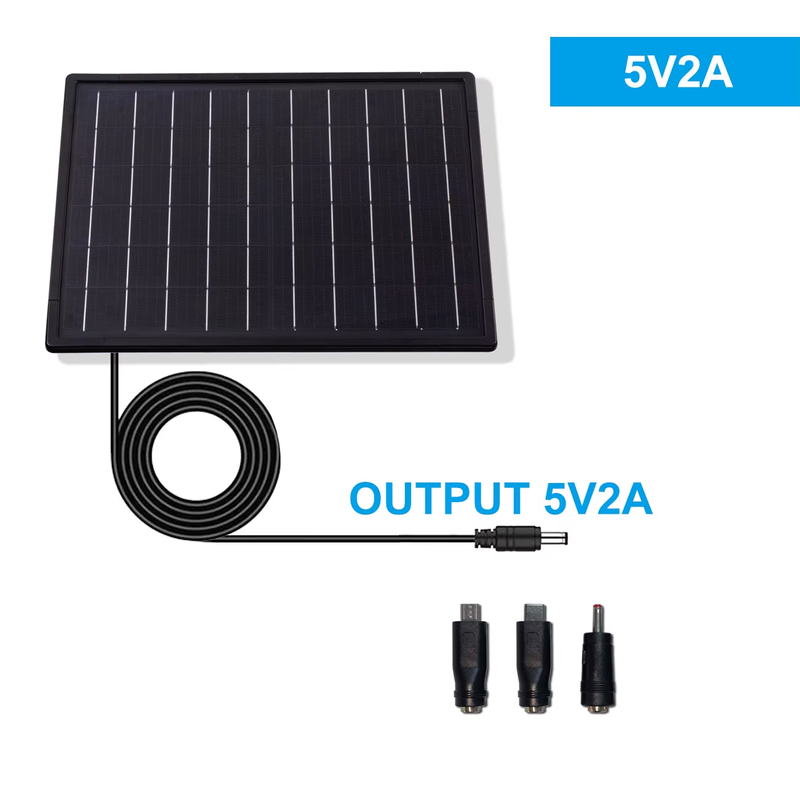

Option1:OUTPUT 5V,2AUSB/TPYEC/3513mm Plugs.

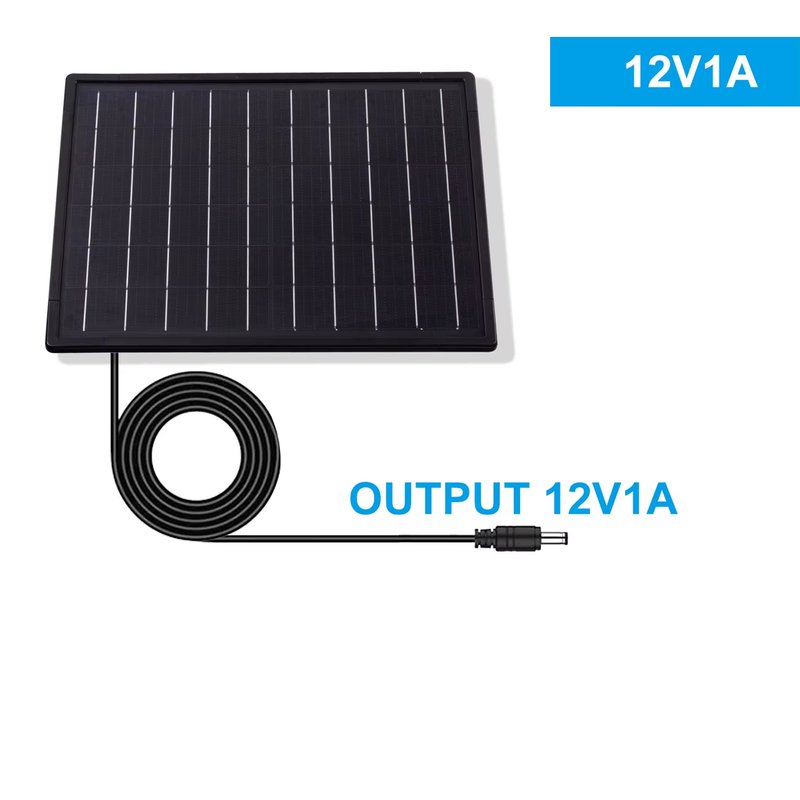

Option2:OUTPUT 12V,1A

125W Solar Panel

The solar panel generates 25W of power, with an output voltage of 15-18V and a current of 1.5A, ensuring that the power generated per day is sufficient for the router's consumption.

2Removable Battery

The solar panel can be installed with maximum 6PCS batteries, the capacity is not less than 3000mah, due to the transportation problem, we can't transport the batteries, the batteries should be purchased by the users themselves.

3Built-in controllers

The solar panel has a built-in MPPT controller, the charging efficiency is increased by 30%, and the battery will be full in 4-5 hours. And provide stable 12V1A power supply to ensure the router work stably.

4IP66 waterproof

IP66 waterproof design for use in harsh environments. Effective working temperature is from -15 to 65.

5Power of connected devices

After testing, installing a 3000mah capacity battery can provide 7X24 hours uninterrupted power supply for a 3W device.

NOTE

Batteries need to be purchased and installed by yourself.Batteries must be installed for proper operation.
Battery type: 18650 battery

25W SOLAT PANEL(Replaceable batteries)

This is a 25W solar panel that can be built-in 18650 battery. The battery type that users can easily change freely. The output power supply is 12V1A, which provides 7X24 hours power to the router.

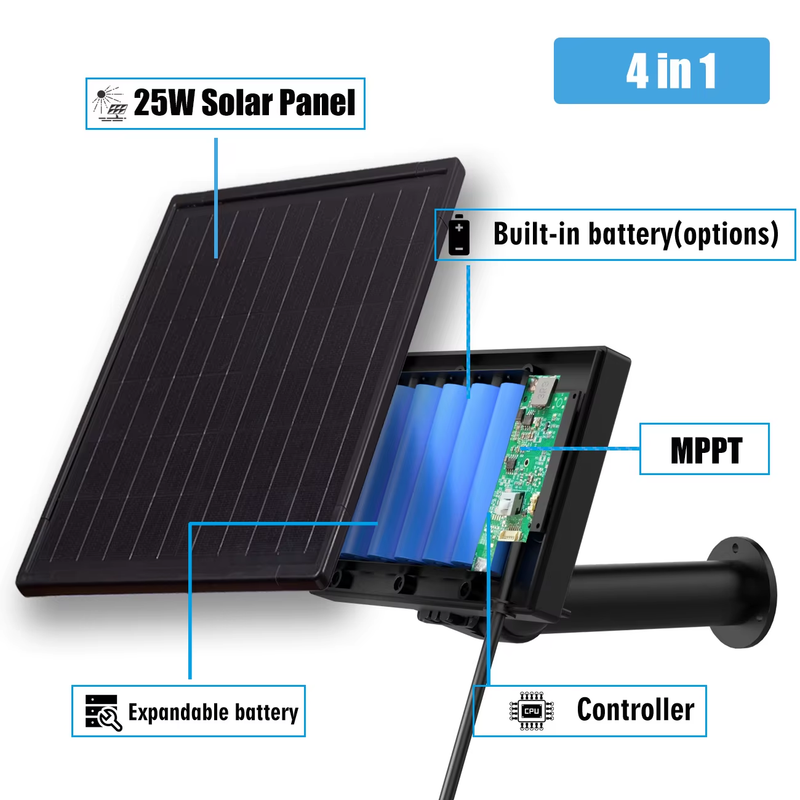

3in1,Solar Panel&Battery&Charge Controller

Unscrew the rear cover screws to install the battery. The battery type is the 18650 type and is available at a timeout near you.

Output power supply: 12V 1A
DC socket type: 5.5X2.1mm

4 sizes of plugs for 5V and 9V outputs.

Output 5V and 9V, we included USB/TPYEC/3513mm plugs, you can use the plugs to switch.

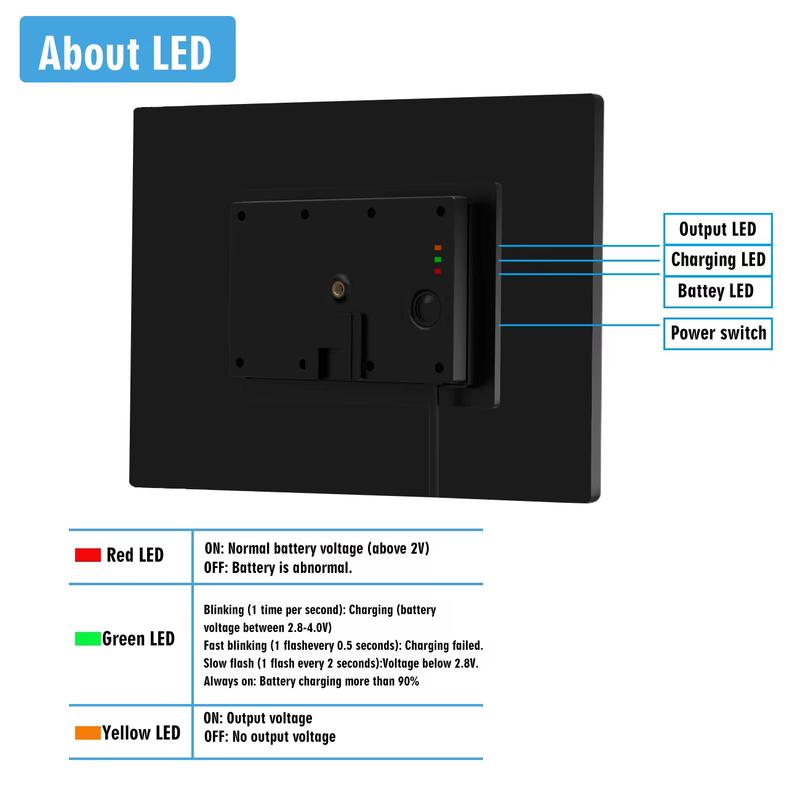

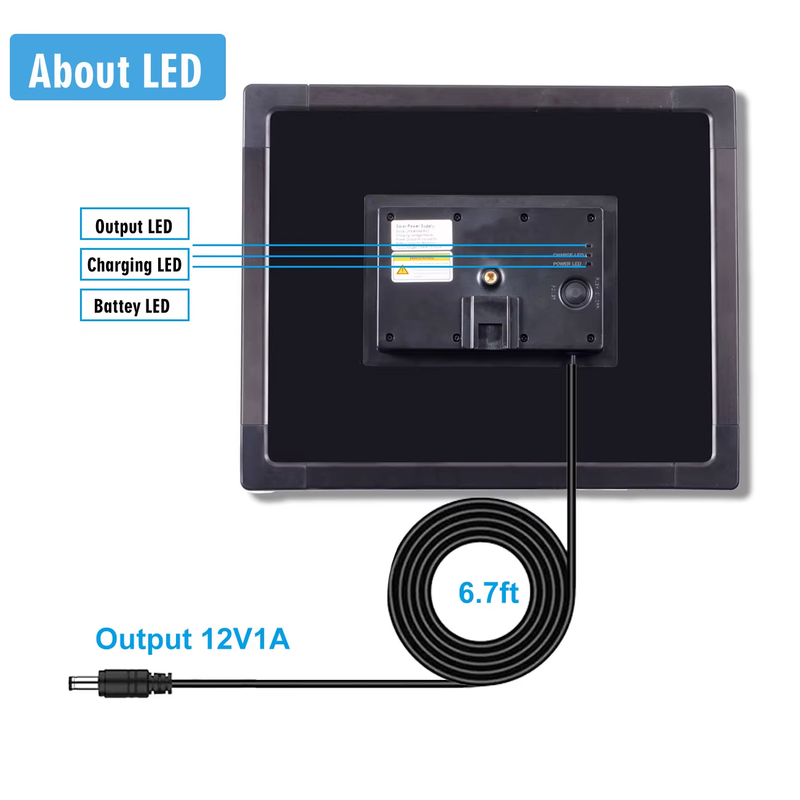

About Indicator Lights

red light
On: The battery voltage is normal (above 2V)
Off: The battery is abnormal.
green light
Flashing (1 flash per second): charging (battery voltage between 2.8-4.0V)
Flashing quickly (1 flash every 0.5 seconds): charging failure
Slow flash (1 flash in 2 seconds): The battery voltage is below 2.8V.
Always on: The battery voltage is above 4.0V.
orange light
On: there is output voltage
Off: No output voltage

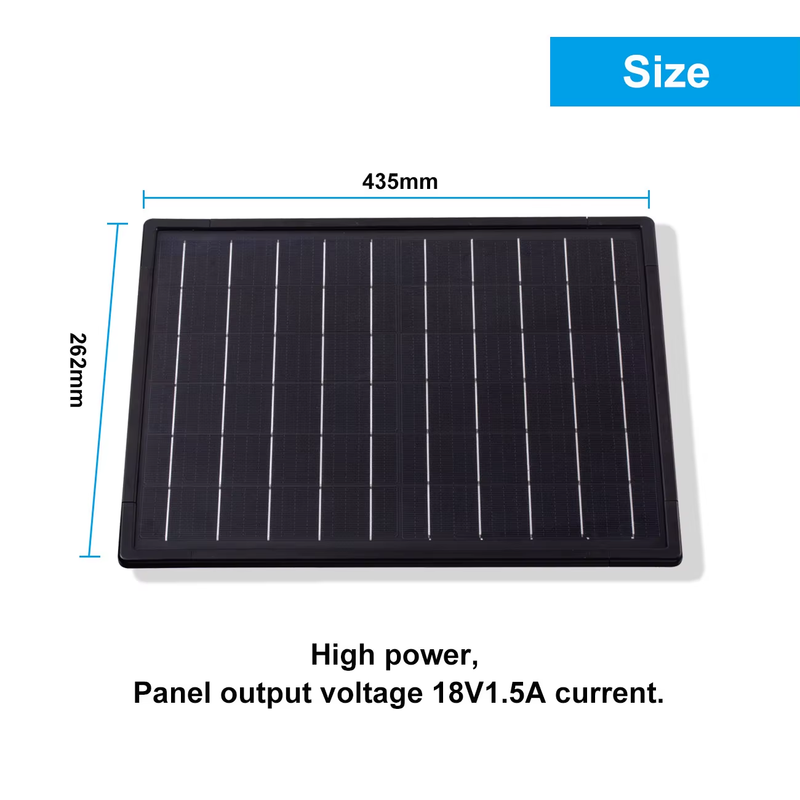

SIZE

Completely automatic, no need to operate.

1. When the power is lower than 10%, the solar panel stops outputting power.
2When the battery power is more than 90%, the solar panel will automatically turn on the output power.
Completely automatic, no need to operate.

Installation Precautions

1Choose a mounting location with greater than 5 hours of sunshine to ensure that he charges faster than the router's consumption rate to ensure that it works all the time.
2, Clean the solar panel every month to make him charge faster.

Automatic switching for greater efficiency

1Solar energy intelligently detects sunlight, when there is enough sunlight, the solar panel charges the battery while supplying power to the router.
2When it is cloudy or rainy, the solar energy charges the battery while the battery discharges to provide power for the router.

Ensure adequate sunlight hours.

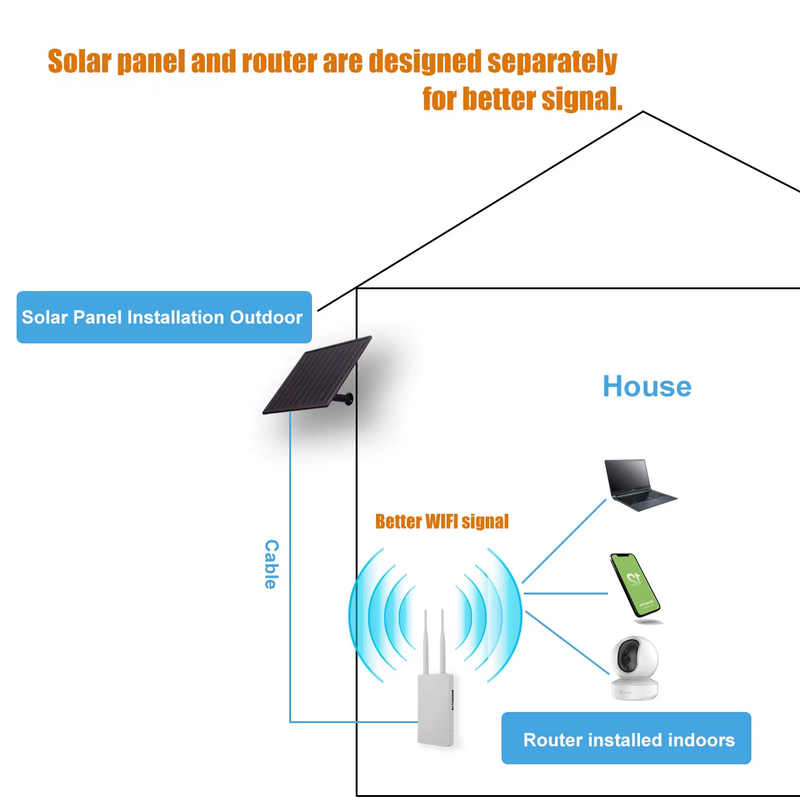

The solar panel cable length is 2M, you can install the panel outdoors and the router indoors.The solar panels are kept working 7X24 hours and must ensure sufficient sunlight hours, not less than 6 hours of sunlight per day. Please clean the dust on the solar panel regularly.
