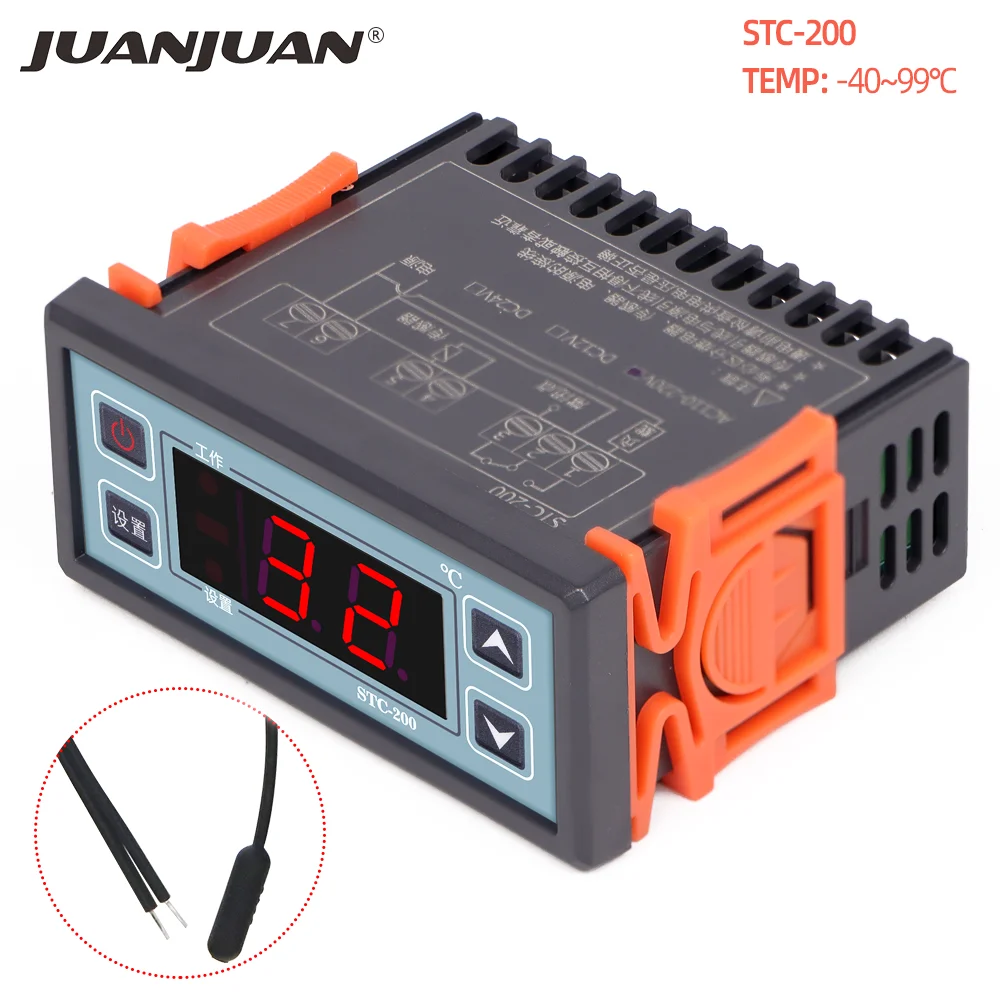

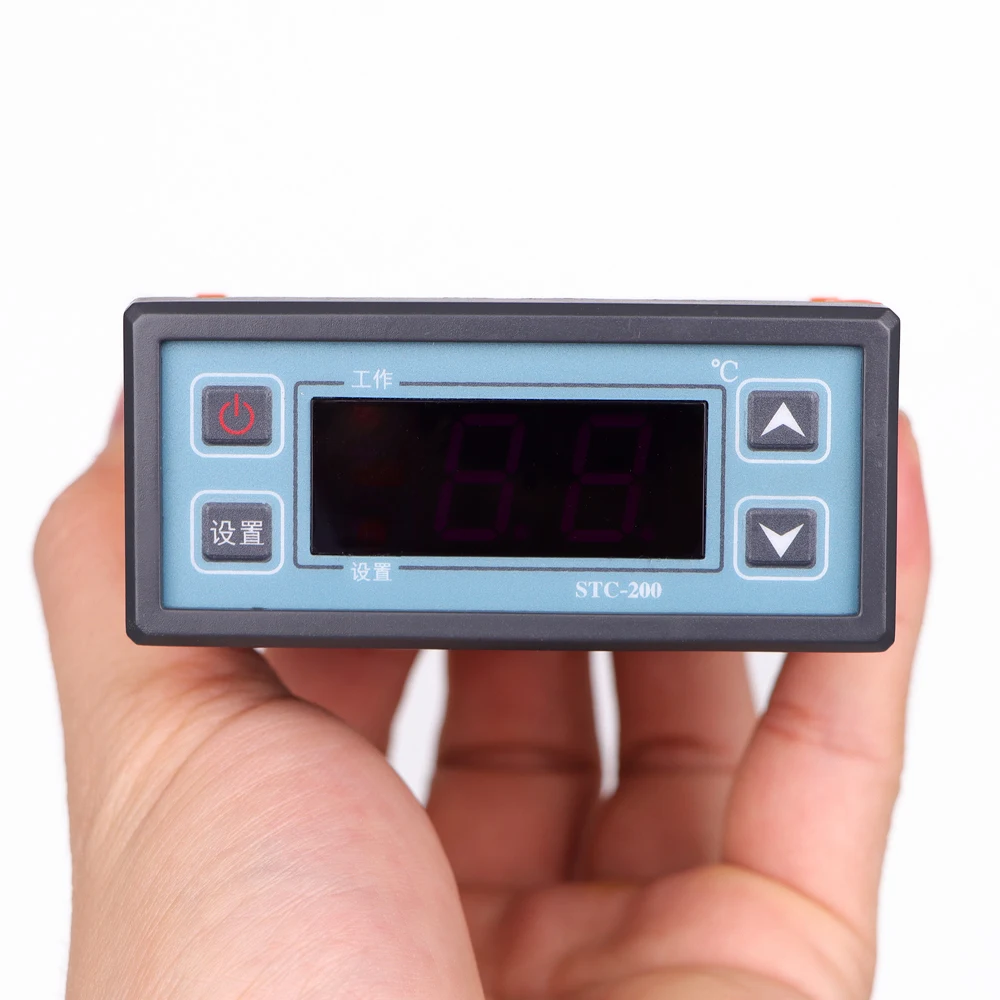

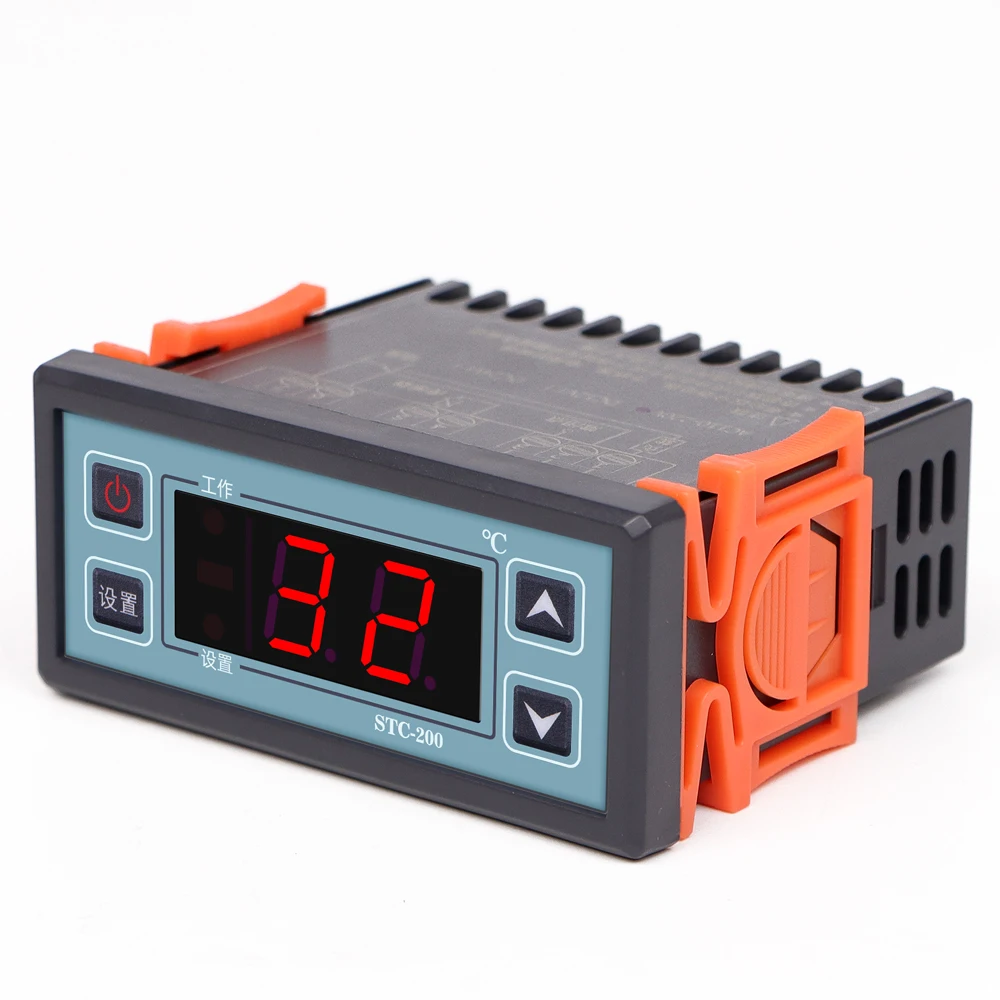

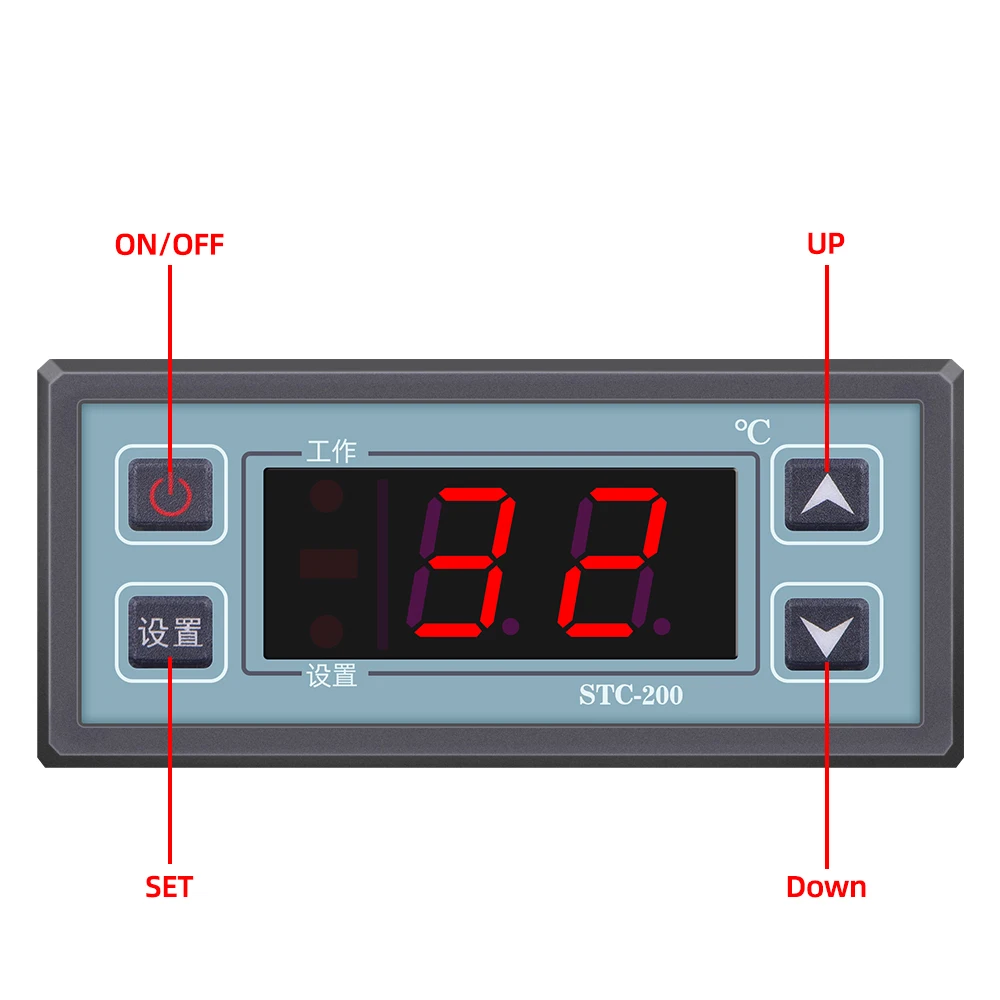

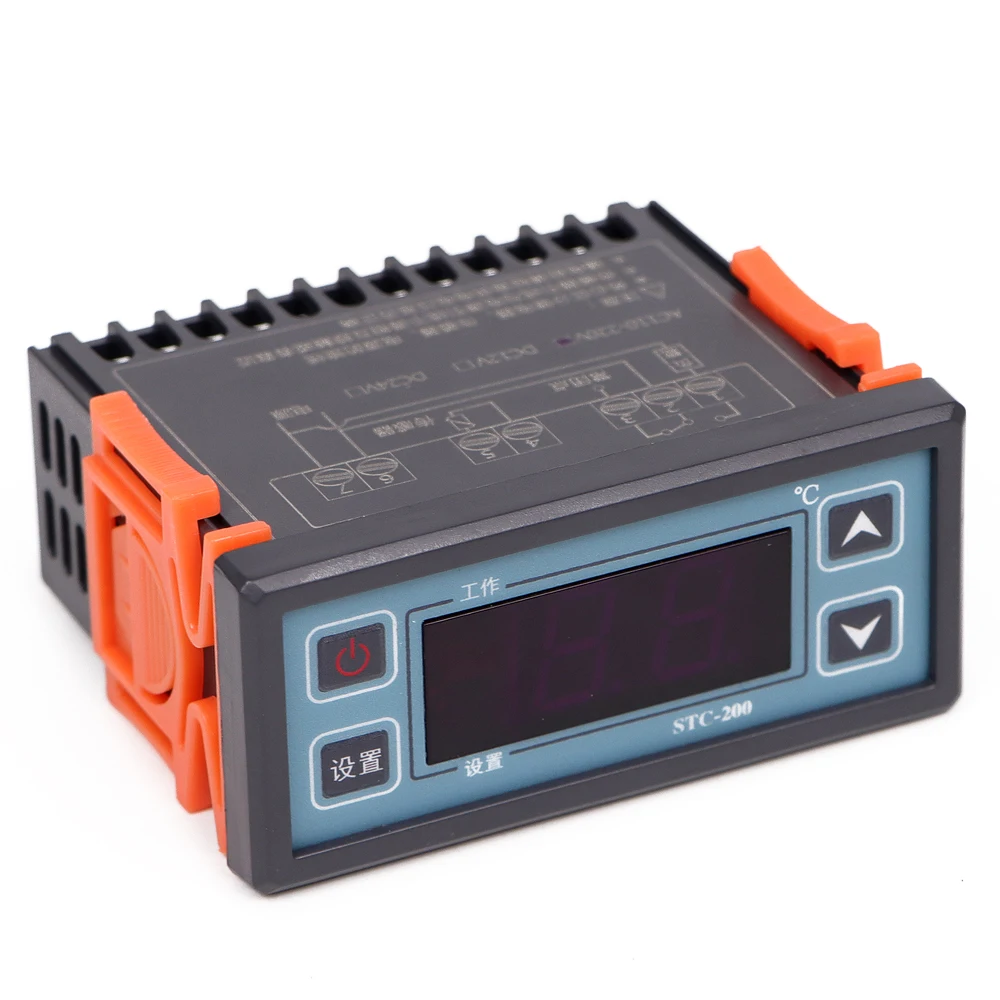

    STC-200 Digital Thermostat Microcomputer Temperature Controller with Refrigeration Heating with Data Reading AC220V

    STC-200 adopts manual switches among refrigeration, heating and alarm ,differential to control temperature ,user and administrator parameter setting separately,compressor delay time adjustable,temperature calibration,alarm when error ,compressor works as per the scheduled procedure when sensor error.
    STC-200 is an all-purpose model with high performance versus price ratio.It is suitable for refrigeration and deepfreeze,seafood machine,water heater and products which need simple temperature monitoring and alarm.
    1. Temperature measurement ,display and control
    2. Adopt differential to set temperature
    3. Compressor startup delay
    4. Alarm when error

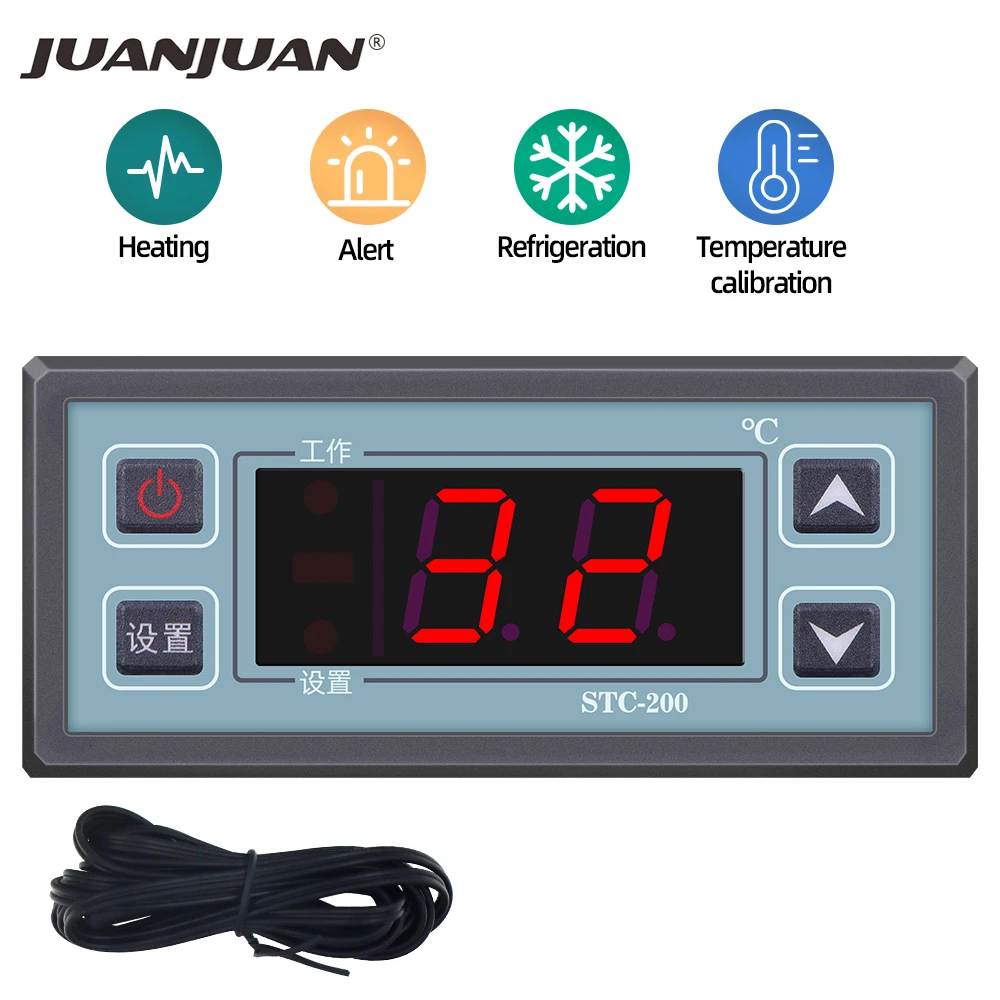

    5. Switches among refrigeration ,heating and alarm
    Model:STC-200
    Color:Gray

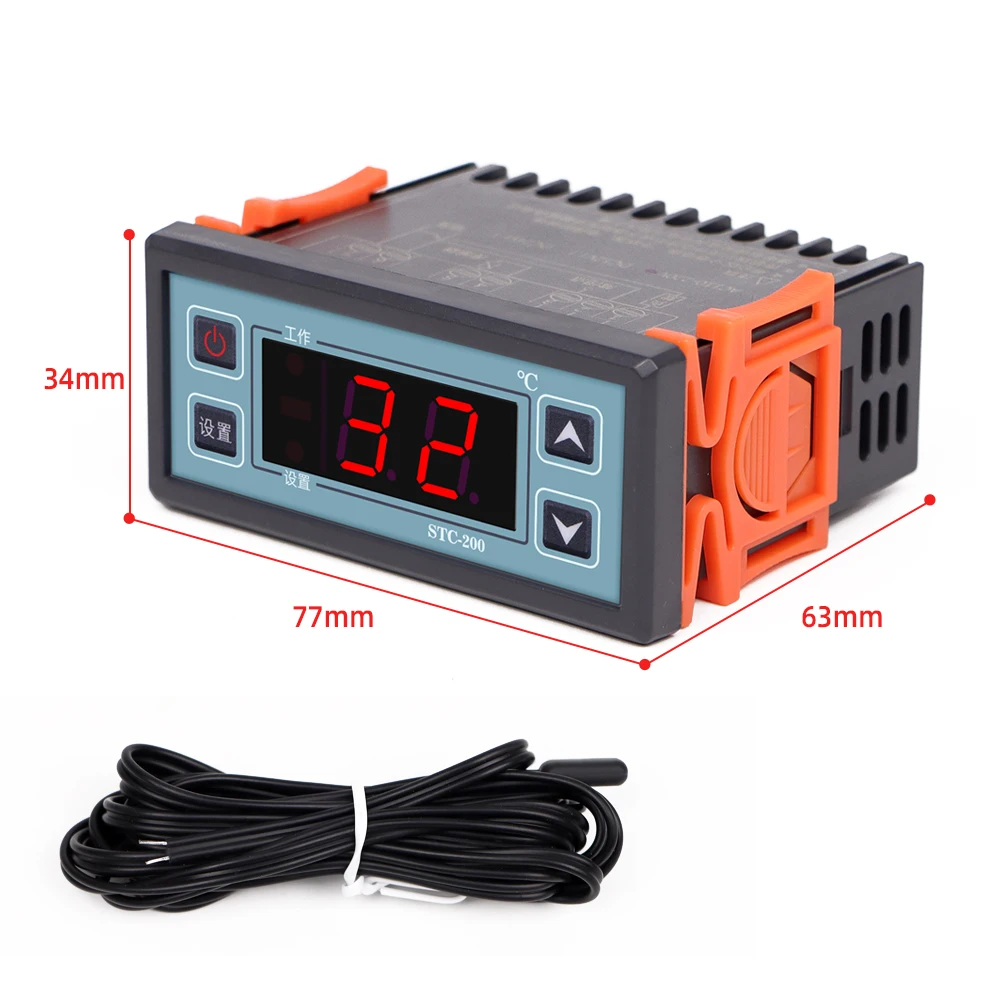

    Whole product Size: 77x34.5x65.5mm
    Installing hole Size:70.5x28.5mm
    Ambient requirements: temperature: -5C - +60C humidity: 20%-60%(No condensate)
    Stored temperature:-30C - 85C
    Power Supply Voltage: 220VAC 10%(12V10% Optional)
    Watt consumption:<5W
    Temperature measure range: -40~99C
    Temperature controlling range: -40~70C
    Resolution: 1C
    Accuracy: 1 C
    Input: 1 NTC sensor
    Sensor lenth:2M(include the probe)

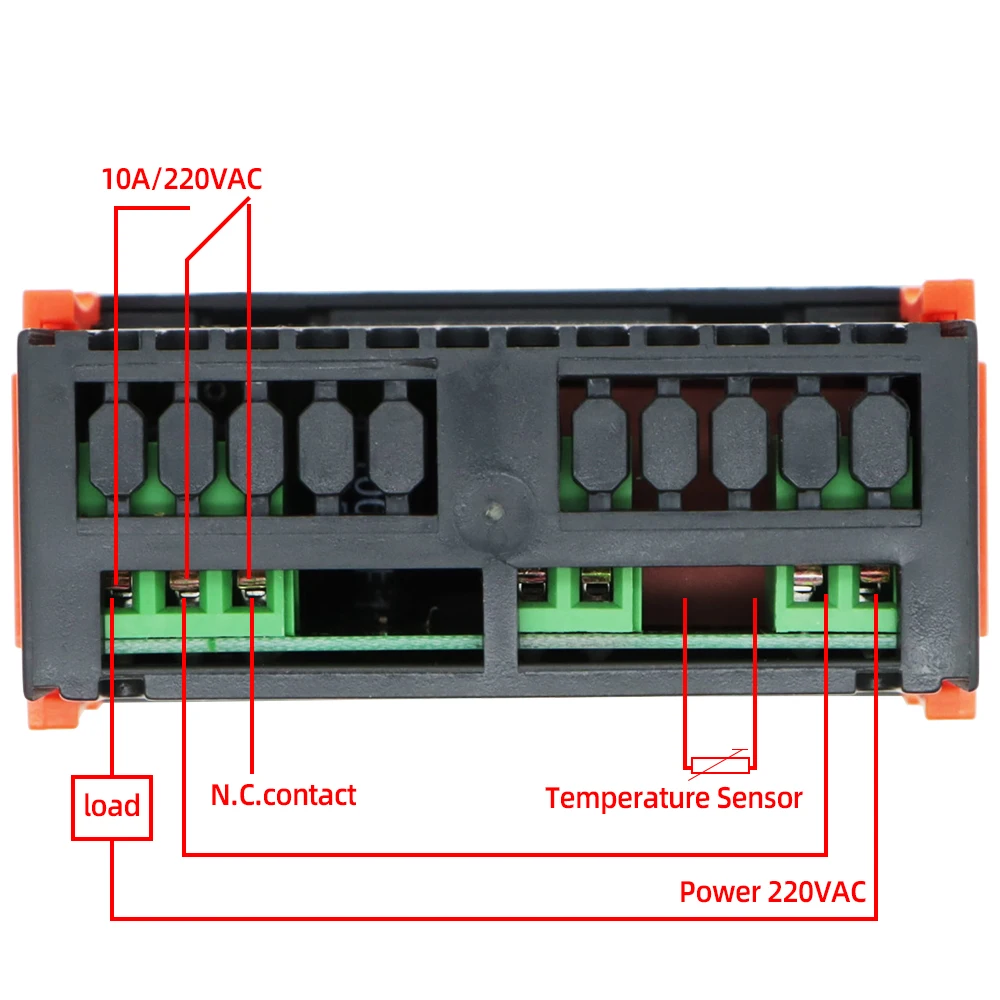

    Relay Contact Capacity: 10A/250VAC/30VDC
    1 x Temperature Controller
    1 x Instruction Manual
    1 x Thermostat Cable
