Thermostatic Bath Shower Mixer Taps, Mixer Valve Shower Bar Deck-Mounted with To

Size of inlet: G 3/4". Size of outlet: G 1/2". Centre to centre of 2 inlets: 150mm. Centre to Centre of 2 Deck Mounted Legs: 180cm. Min 0.5 Bar water pressure, 1 bar recommended.

Installation Methods: The thermostatic bath mixer comes with 2 legs for deck mounted. Without the legs, it can be wall mounted with S connectors (NOT included, but easy to purchase).

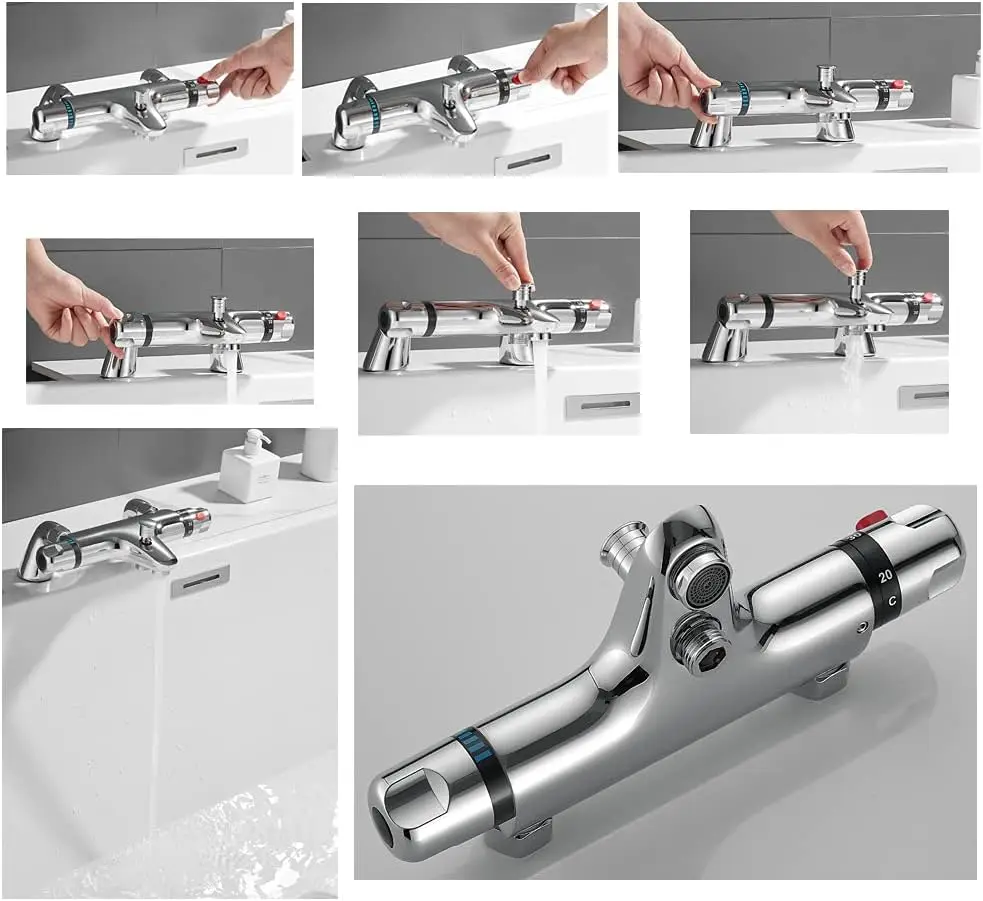

Flexible Control: Left Hand Knob controls water flow, and the right hand knob controls water temperature from 30-45C (with a safety lock at 38 C). The lift knob controls bath or shower.

Anti-corrosion Durable Material: Solid brass construction, durable chrome finish. Easy to Clean.

Product Specification:

Material: High polished chrome-plated solid brass

Installation: Deck Mounted with legs (included), or Wall Mounted with S connectors (NOT included)

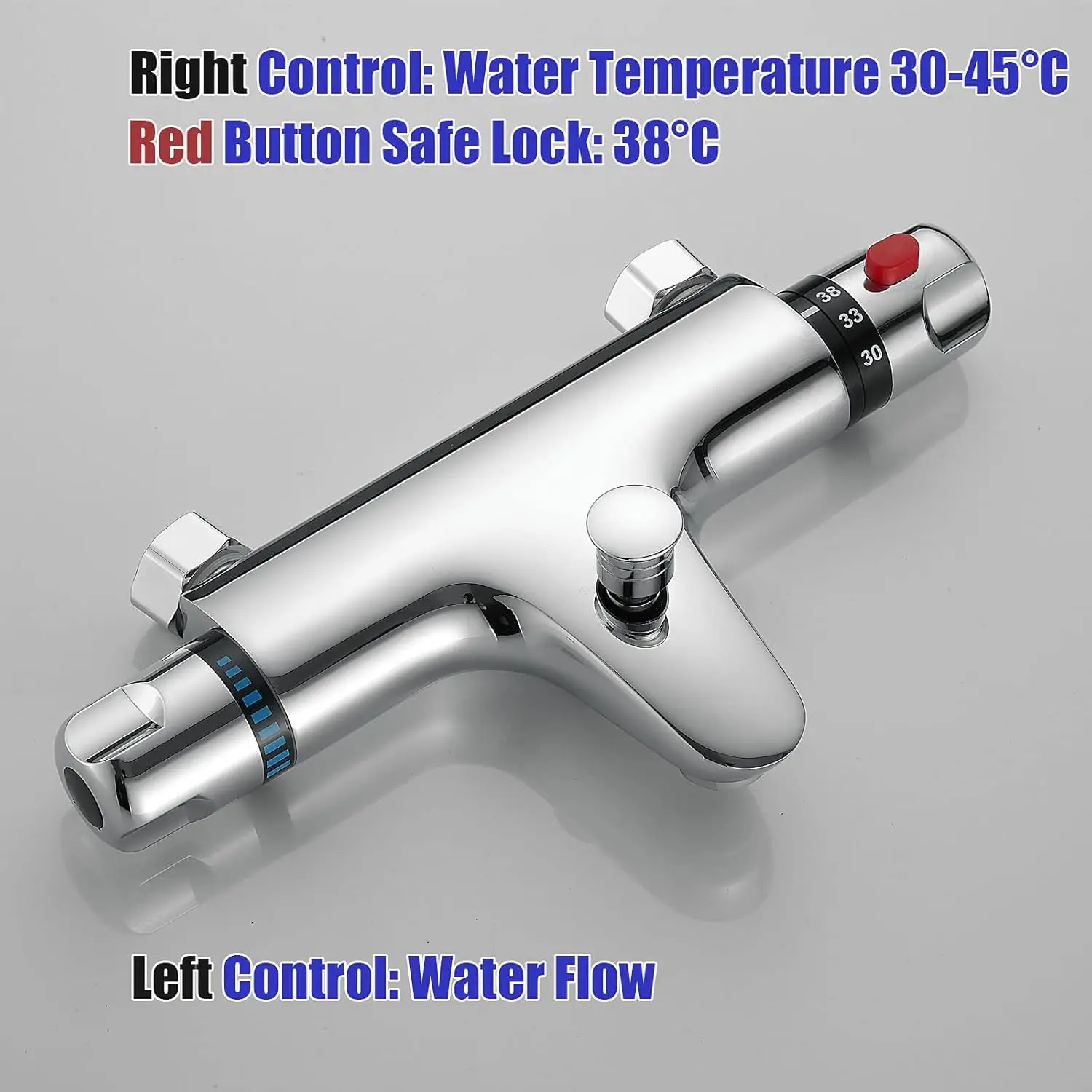

Left Control Knob: Controls the water flow using a 1/4 turn ceramic disc cartridge

Right Control Knob: Controls the water temperature

Lift Knob: Controls Bath or Shower Way

Outlet Water Temperature Range: 30-45C

Safety Button Temperature: 38C

Size of Inlet: G 3/4"

Size of Outlet: G 1/2"

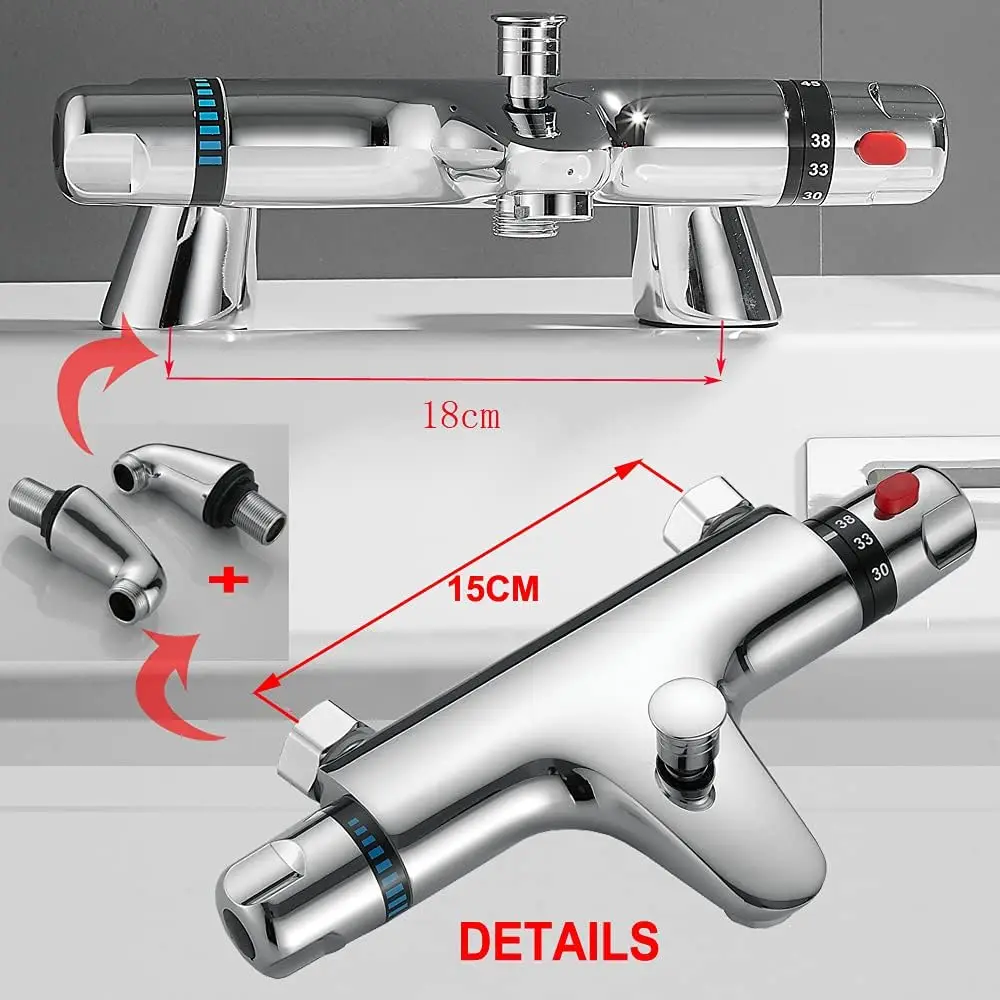

Distance between hot water inlet and cold water inlet: 150mm

Distance between 2 Deck Mounted Legs: 180mm

Suitable for most plumbing systems

Water Pressure: Minimum 0.5 bar, recommend 1 bar for best performance

Package Includes:

1x Thermostatic Bath Shower Mixer Valve

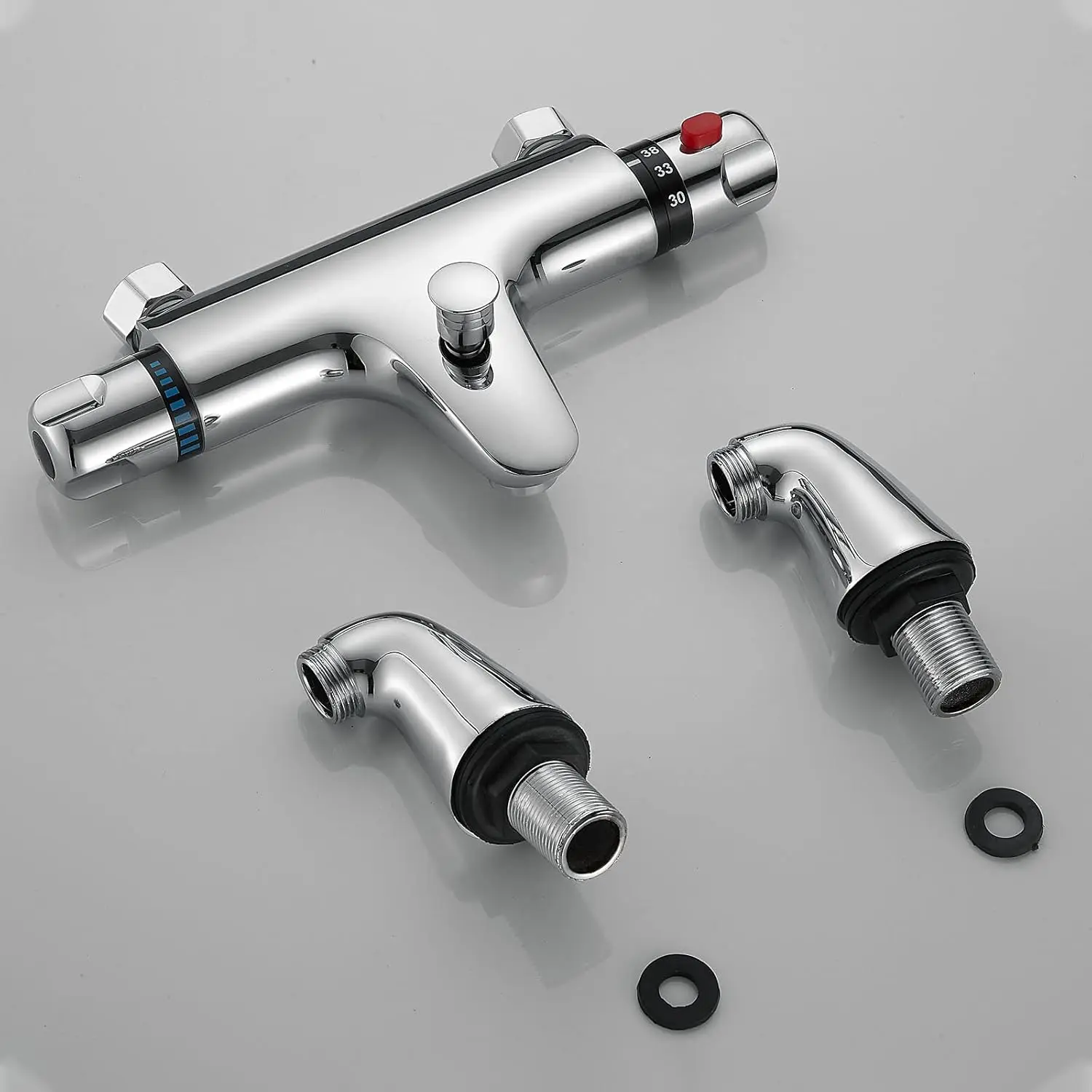

2x Deck Mounted Legs

Fitting Accessories
