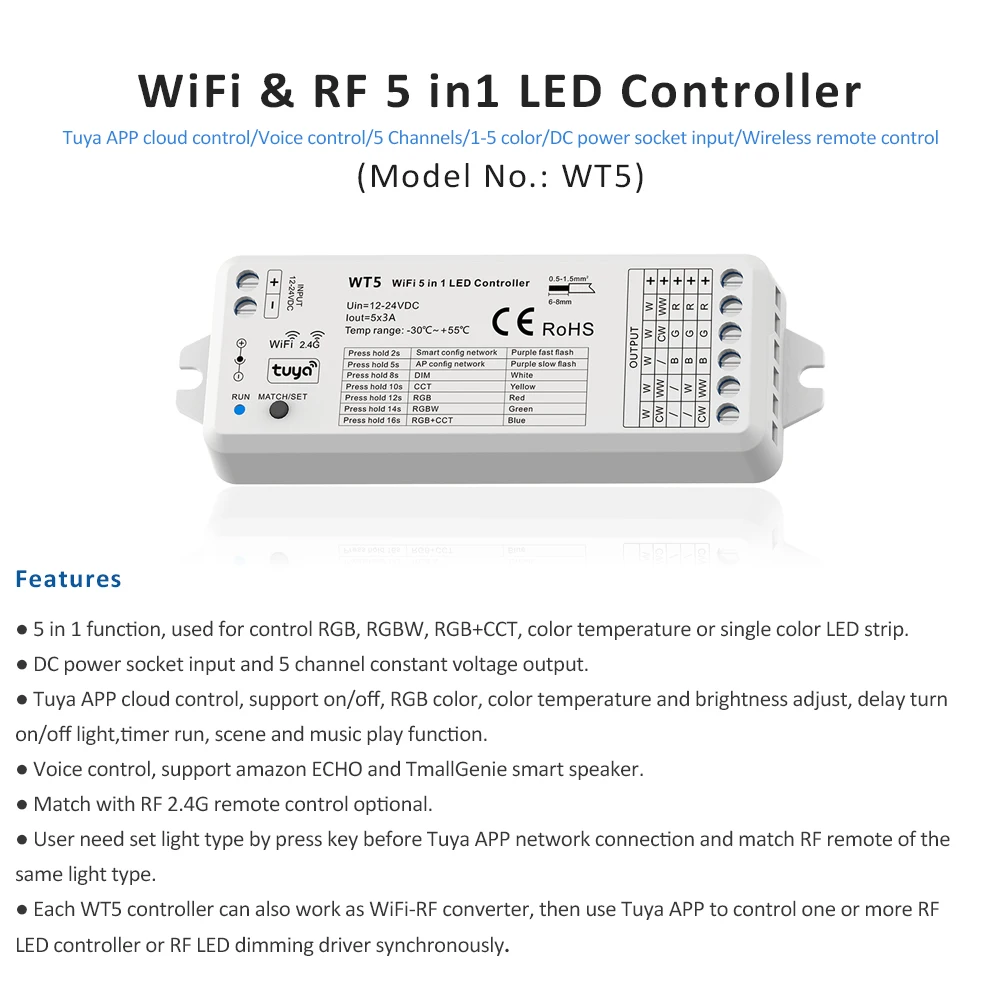

Tuya Wifi RGBCCT LED Controller DC12-24V WT5 5In1 LED Dimmer 2.4G RF 1-Zone 4-Zo

NOTE:
1. the 2.4G RF remote only work with Skydance Brand Switch.can't use alone,not support other brand.

Features:

5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
DC power socket input and 5 channel constant voltage output.
Tuya APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light,timer run, scene and music play function.
Voice control, support amazon ECHO and TmallGenie smart speaker.
Match with RF 2.4G remote control optional.
User need set light type by press key before Tuya APP network connection and match RF remote of the same light type.
Each WT5 controller can also work as WiFi-RF converter, then use Tuya APP to control one or more RF LED controller or RF LED dimming driver synchronously

Main Parameters:

• Input voltage: 12-24V DC

• Output voltage: 12-24V DC

• Output current: 5CH,3A/CH

• Input signal: Tuya APP + RF 2.4GHz

• Dimming range:0 -100%

• Dimming range scale: 4096 (2^12) levels

• PWM Frequency:500Hz (default)

• Protection:Reverse polarity Over-heat
