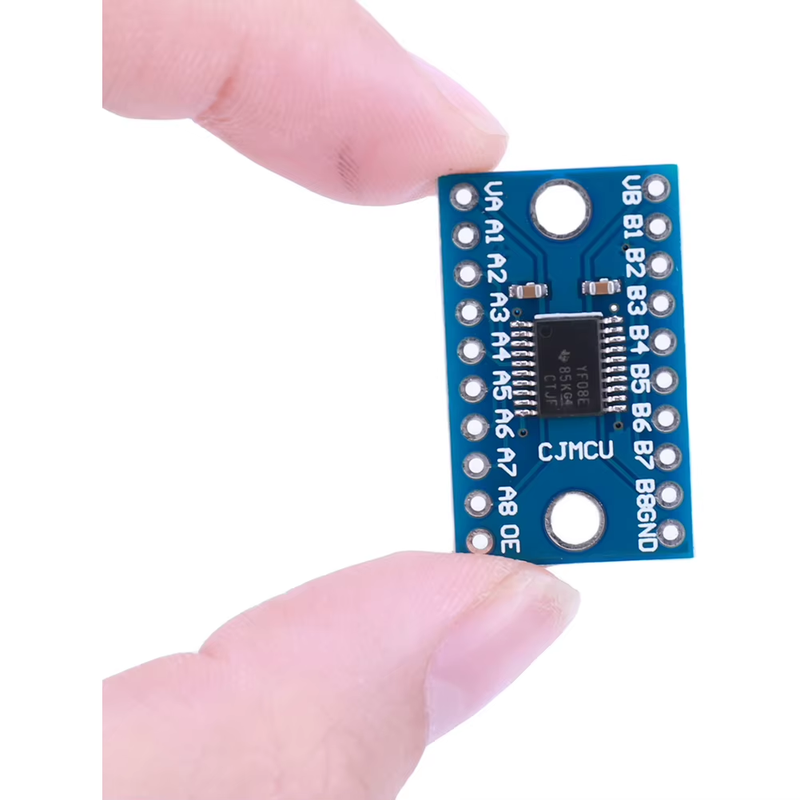

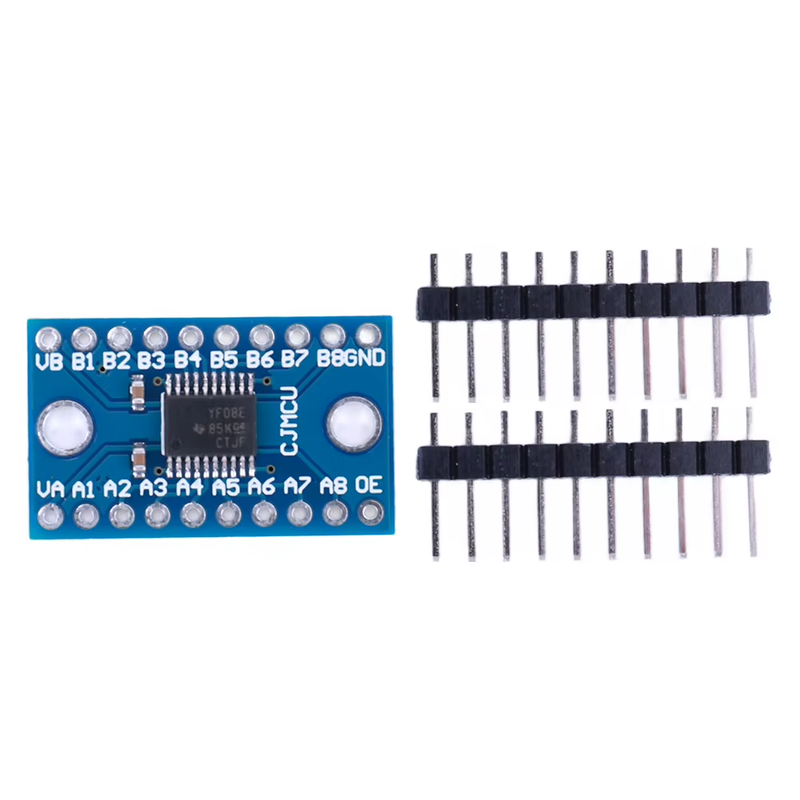

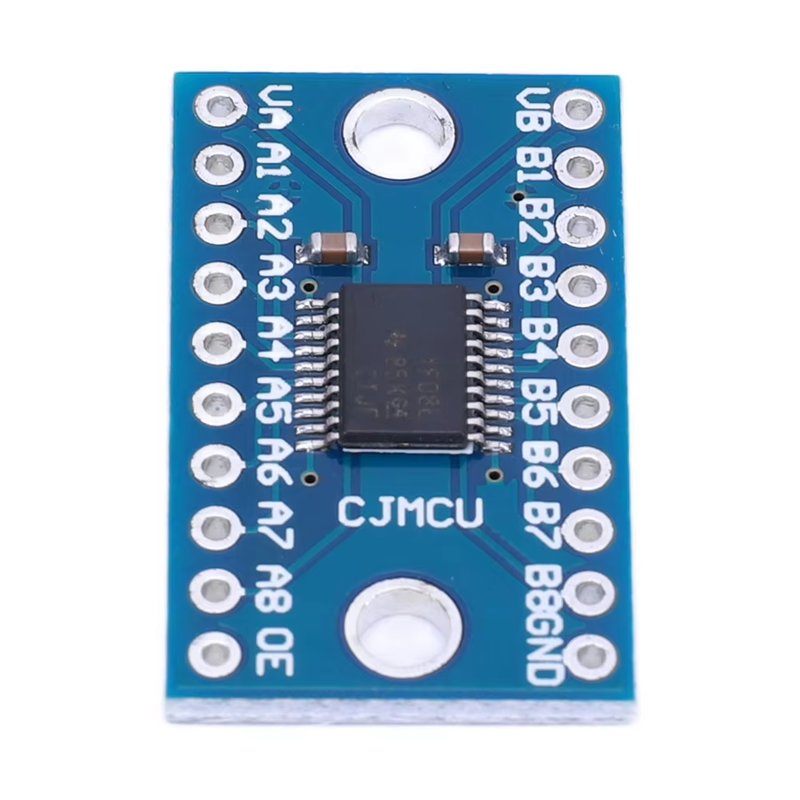

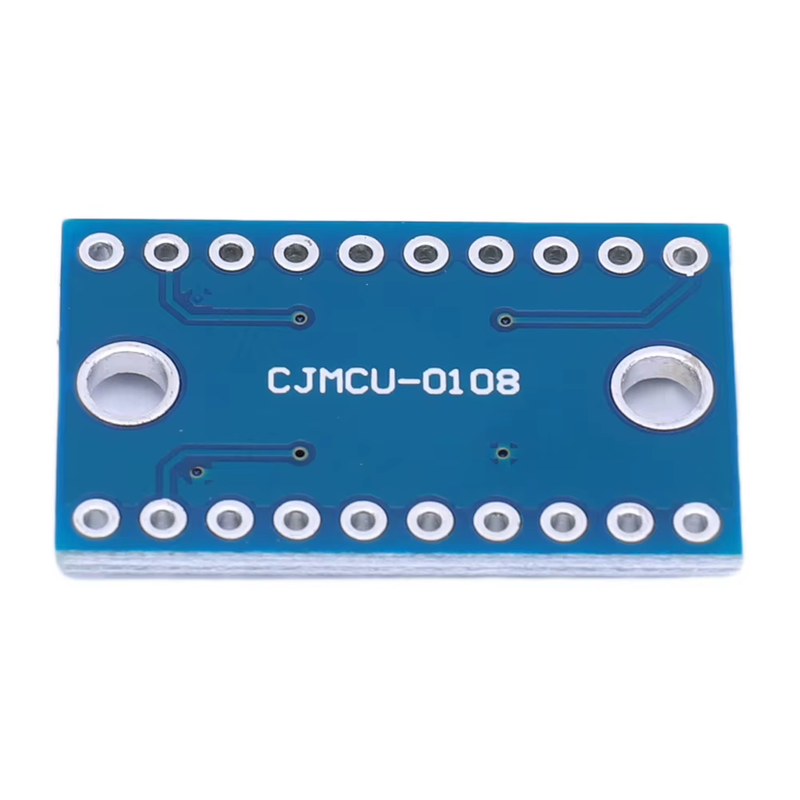

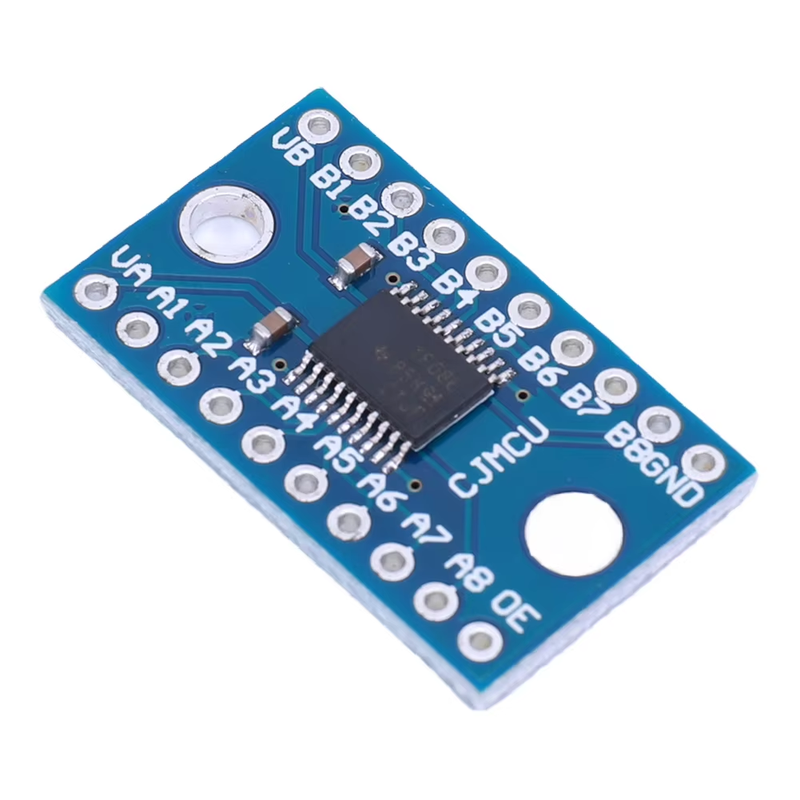

TXS0108E TTL Bi-Directional Mutual Converter 3.3V 5V 8 Channel Logic Level Shift

TXS0108E TTL Bi-directional Mutual Converter 3.3V 5V 8 Channel Logic Level Shifter Bi-Directional Module High Speed for Arduino
Features:
1. Universal Level Shifting: The TXS0108E logic level converter seamlessly facilitates the conversion between different voltage levels, such as from 5V to 3.3V, making it a versatile component for various electronic projects and applications that require level matching.
2. Eight Independent Channels: Boasting eight isolated channels, the TXS0108E TTL bi-directional mutual converter allows for individual configuration of each pathway as either input or output, offering flexibility and scalability for complex circuit designs.
3. Low Power Consumption: Designed for efficiency, the TXS0108E logic level conversion module operates with minimal power draw, reducing the overall energy footprint of your system without compromising performance.
4. High-Speed Operation: Engineered for rapid response and data transfer, the TXS0108E logic level shifter bi-directional module ensures high-speed level conversion, making it ideal for applications that demand quick data processing and throughput.
5. Integrated Protection: With built-in over-voltage and over-current protection circuits, the TXS0108E voltage level translation module safeguards connected devices and itself from potential electrical interference and surges, ensuring reliable and safe operation across all uses.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Features:
Module Using The Chip: TXS0108E
High-Speed Full-Duplex 8-Channel Level Shifter Module
Provides Bi-Directional Communication Function
Vcca Terminal Supports Voltage 1.2v-3.6v.
Vccb Terminal Supports Voltage 1.65v-5.5v.
Provide Common Level Conversion Functions, Such As 3.3-5v 1.8-3.3v
Main Applications:
1. 5v Mcu And 3.3v Module, 3.3v Mcu And 5v Module And Other Communication Compatible Support
2. Level Conversion For Mcu And Sd Card Communication
3. Mcu And Iic, Spi Serial Device Level Conversion
4. Oe Enable Io For High Level Active, It Is Recommended To Connect The Io Port On The Low Voltage Side

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

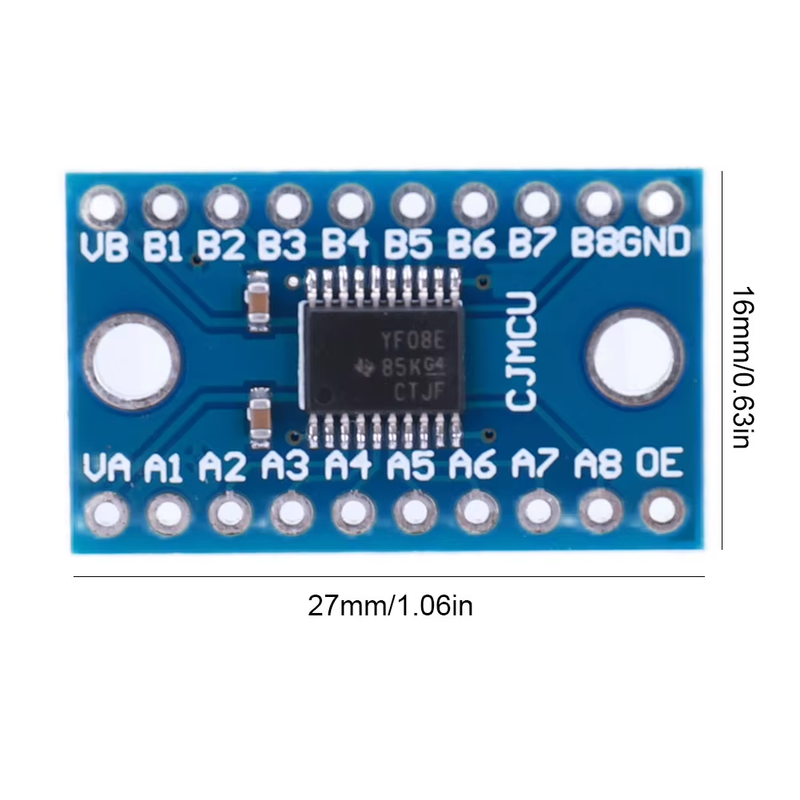

Please allow 1-2cm measuring deviation due to manual measurement.

1*Logic Level Converter
