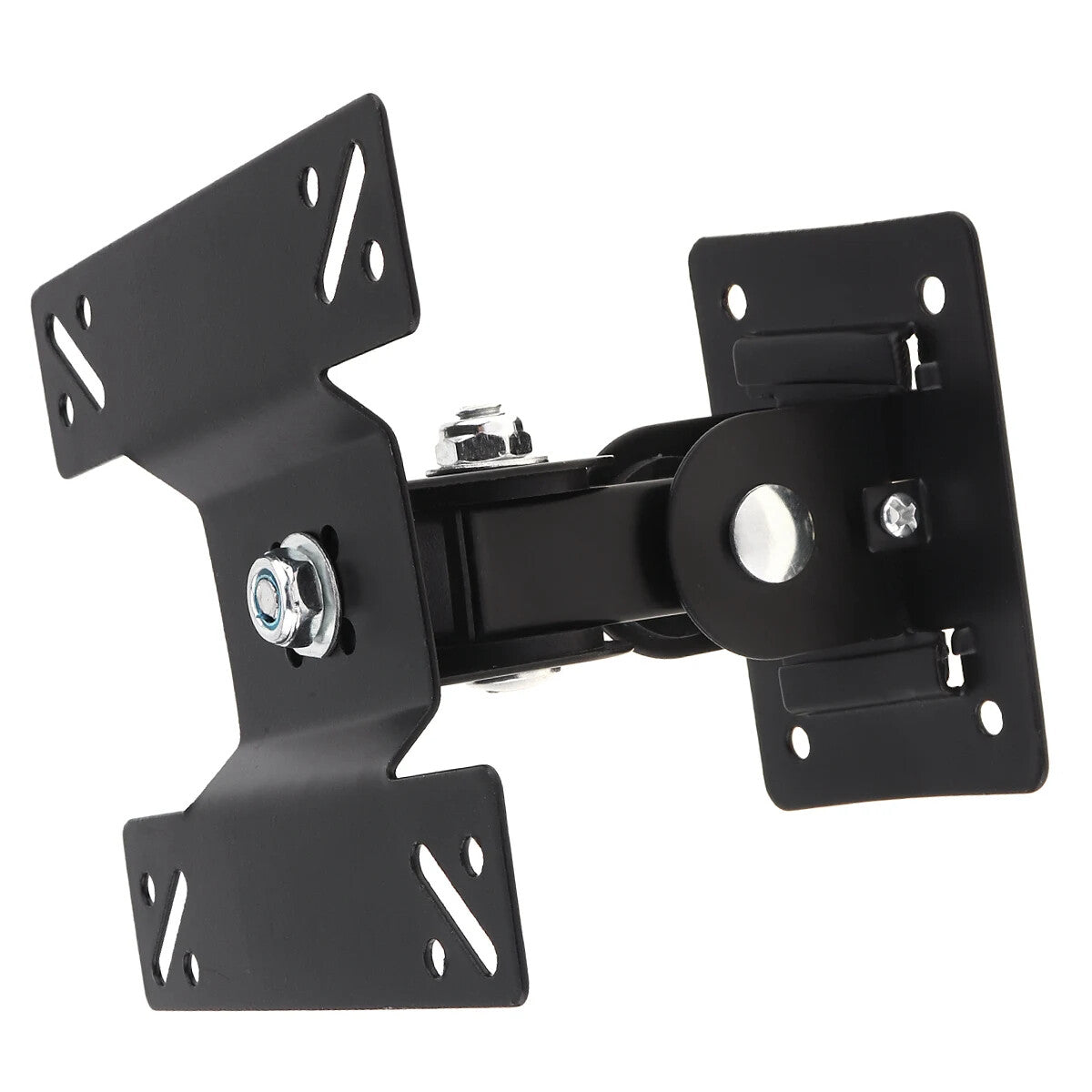

Universal Adjustable TV Wall Mount Bracket Flat Panel 180 Degree Rotation with

- The key parts are thickened, the structure is stable, and the ability to withstand weight is strong.
Applicable scope: Suitable for most HDTV flat screen TVs, LCD TVs, LED TVs, plasma TVs. Suitable for home, entertainment, public places and commercial establishments such as living room, KTV, bar, airport, train station, bus station, shopping mall, store waiting hall, lounge, large conference room, classroom, lobby and restaurant.
- Safety screw design ensures no offset under load.

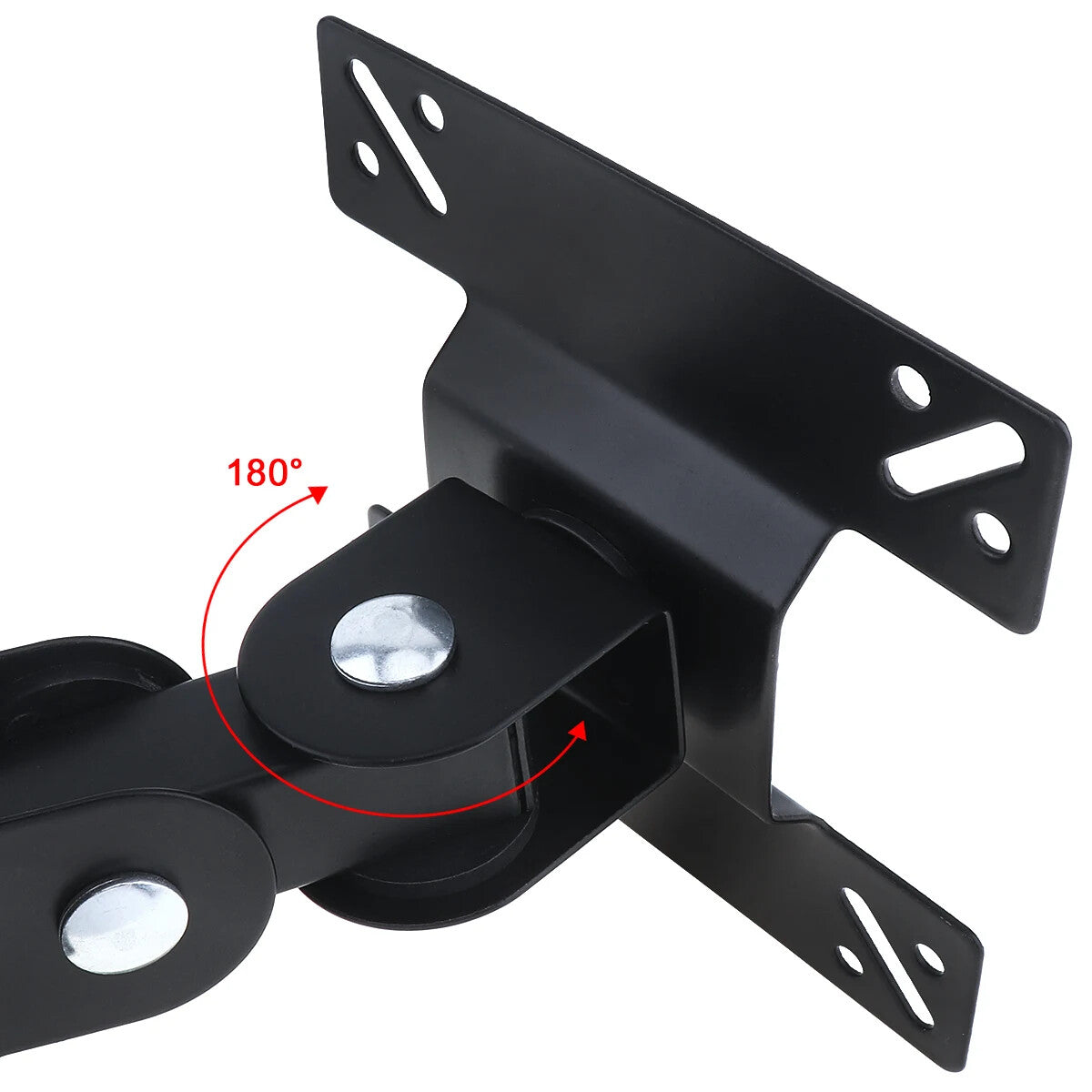

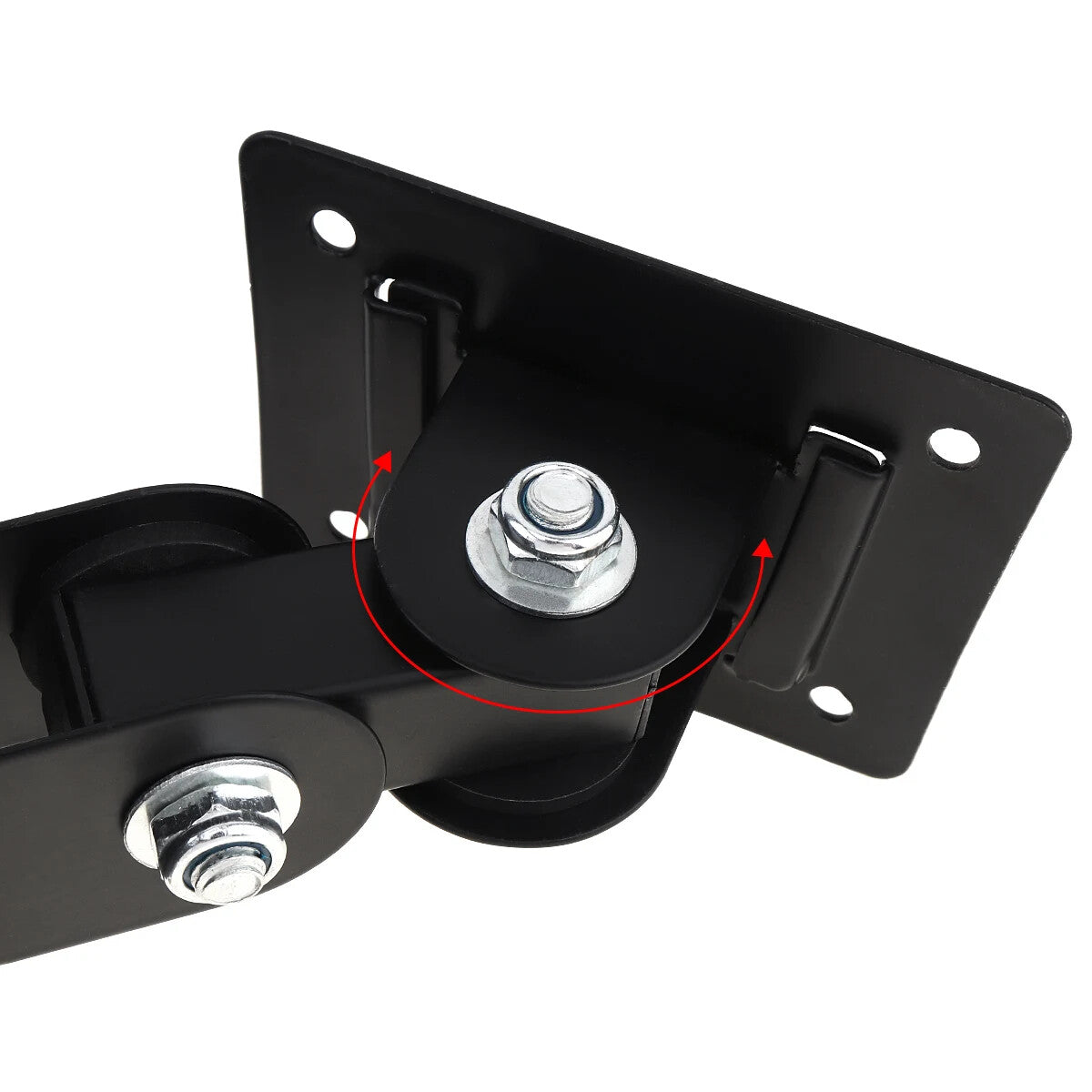

- The tilt angle of gradient can be adjusted up and down, right and left swivel angle: 180.Plane rotation: 360.
- High-intensity rotating shaft that can withstand multiple rotations without deformation.
- Automatic telescopic adjustment design, stretchable and rotatable.
- PC material design,with good flexibility, scratch resistance,beautiful appearance.
- The one piece panel is simple and easy to operate.

Installation and operation instructions:
1. Use the wall plate as a templet to drill four holes of 10mm diameter and 50mm depth in the concrete wall. Then wedge four plastic concrete anchors into the holes.
2. Install the wall plate, Put the wall plate on the wall,and then screw four lag bolts into each plastic concrete anchor through metal washer to four the lag bolt,the plastic concrete anchor and the wall.
3. Install the monitor brackets onto the back of the panel TV: screw four bolts into the holes in the back of the panel TV Make sure the distance from each bracket to the top of the panel TV is equal,and also as center as possible.The parts shall be selected according to the dimensions of the holes in the back of the panel TV.
4. Adjust the angel of the LCD between -3~+12 to a suitable position by hands.

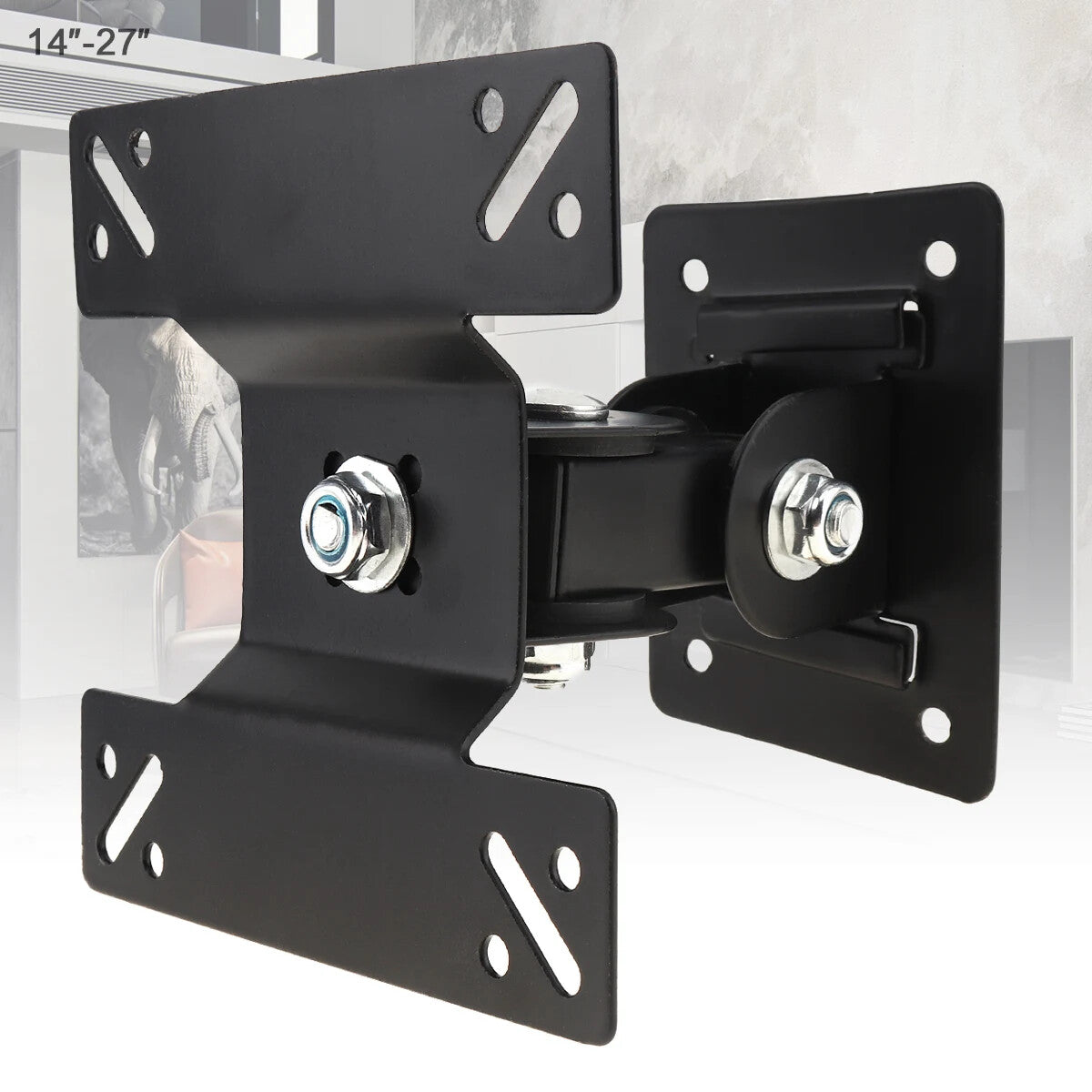

Place of Application: 14 - 27 Inch LCD LED Monitor Flat Pan

Note:

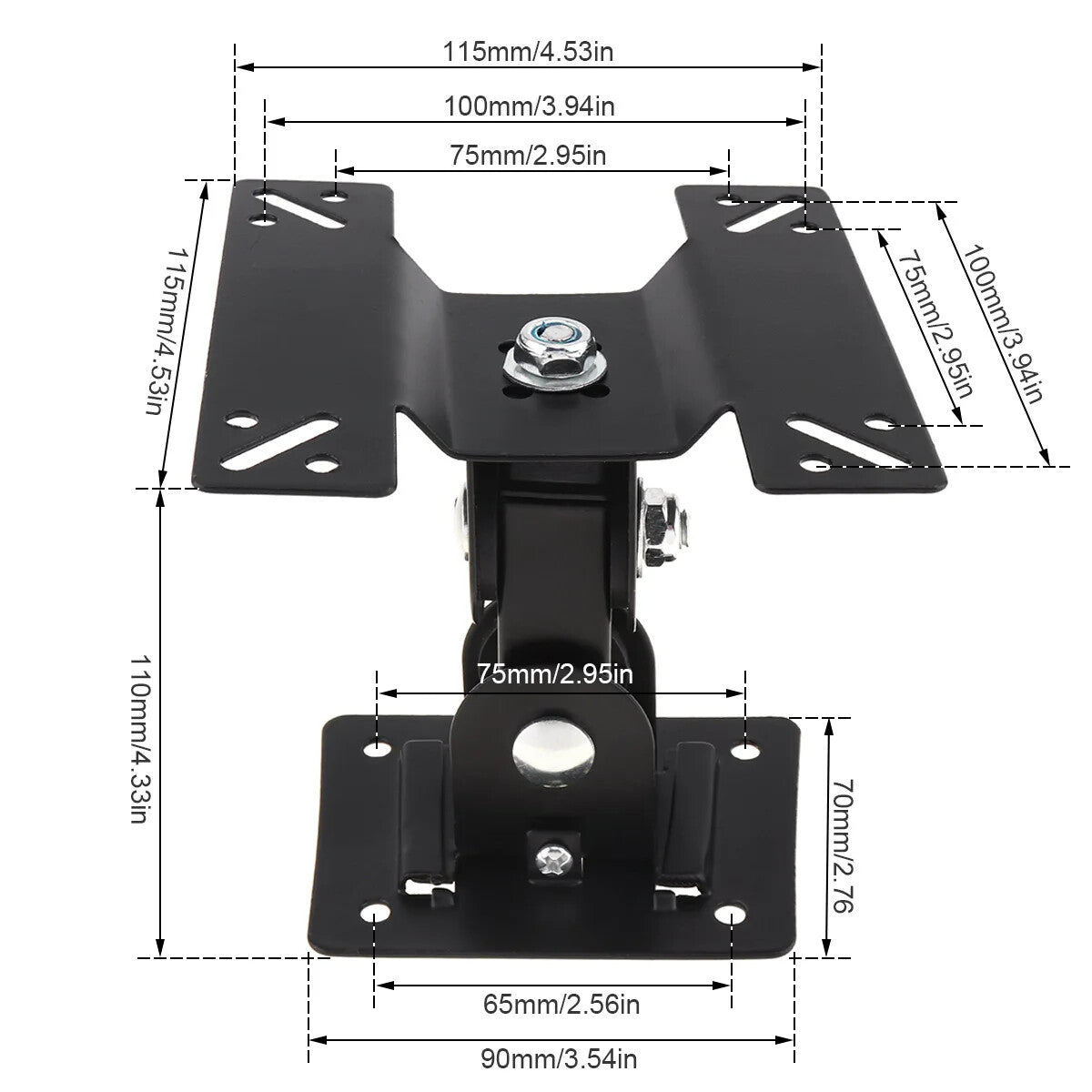

- When purchasing, check that the hole spacing of the TV is the same as the product and that the weight is within the tolerance of the product.

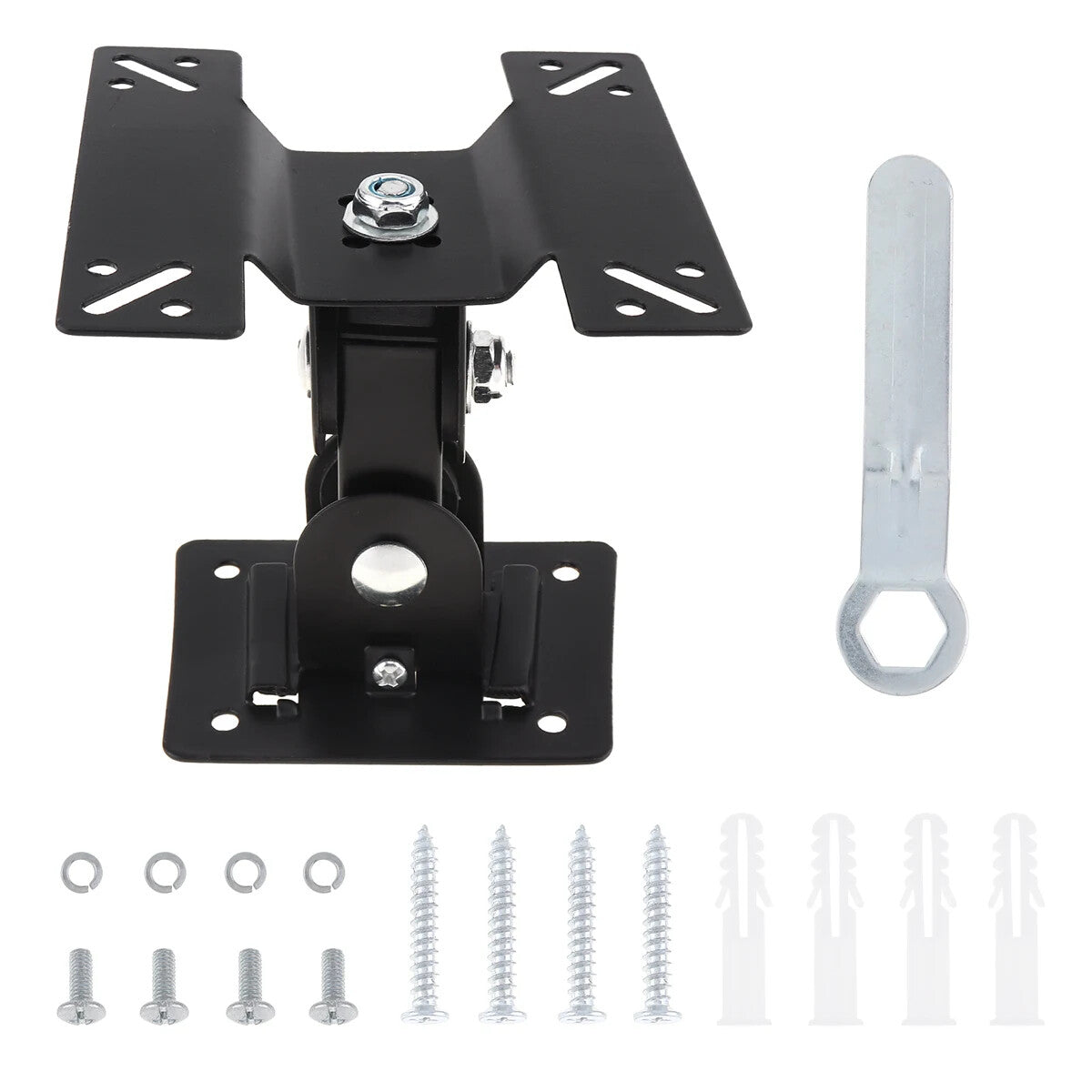

- The quantity of product accessories will be somewhat deviant, but it will not affect installation and usage.
