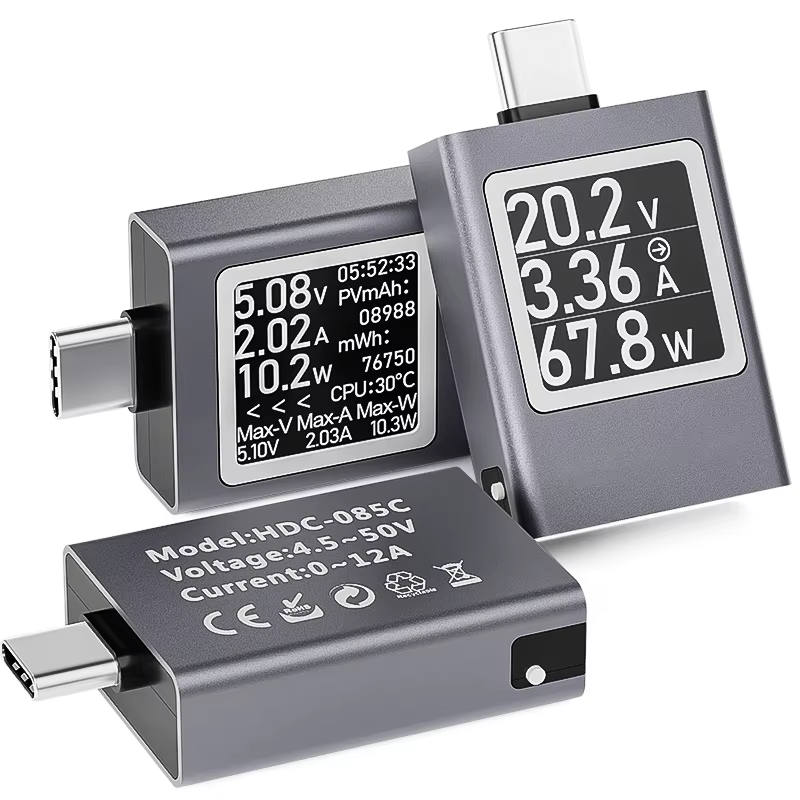

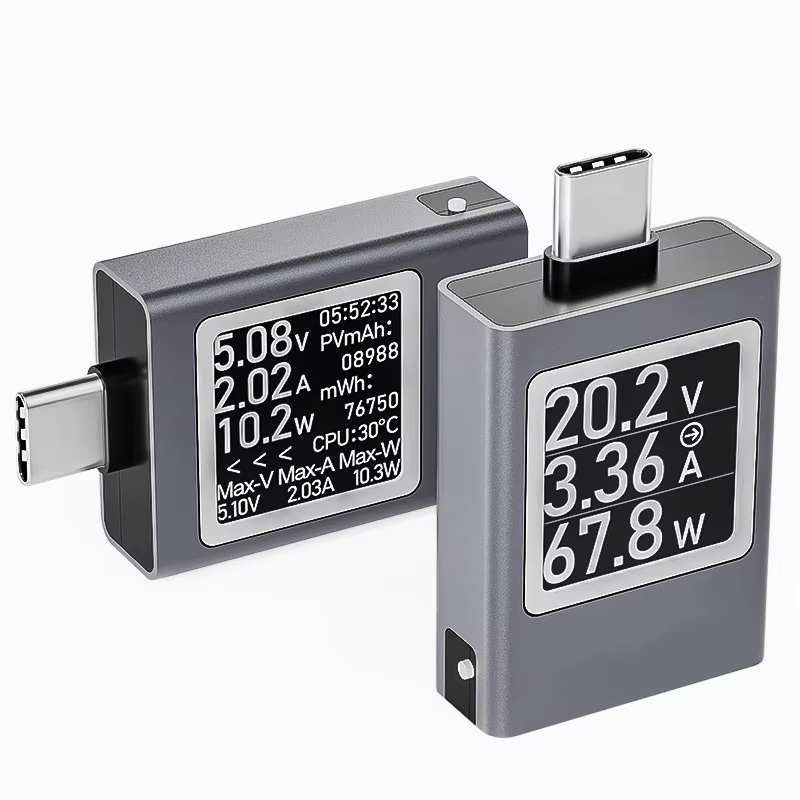

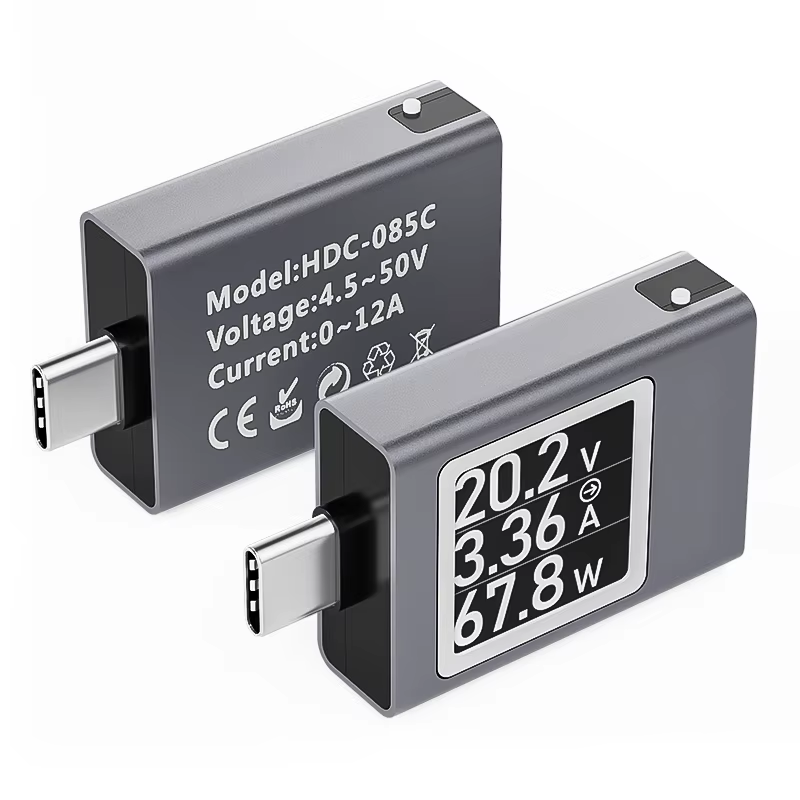

USB C Power Meter DC 4.5-50V 12A DC Voltage Ammeter Power Meter Digital Display

USB C Power Meter DC 4.5-50V 12A DC Voltage Ammeter Power Meter Digital Display Type C Voltage Current Tester Working Time Ammeter Voltmeter
Features:

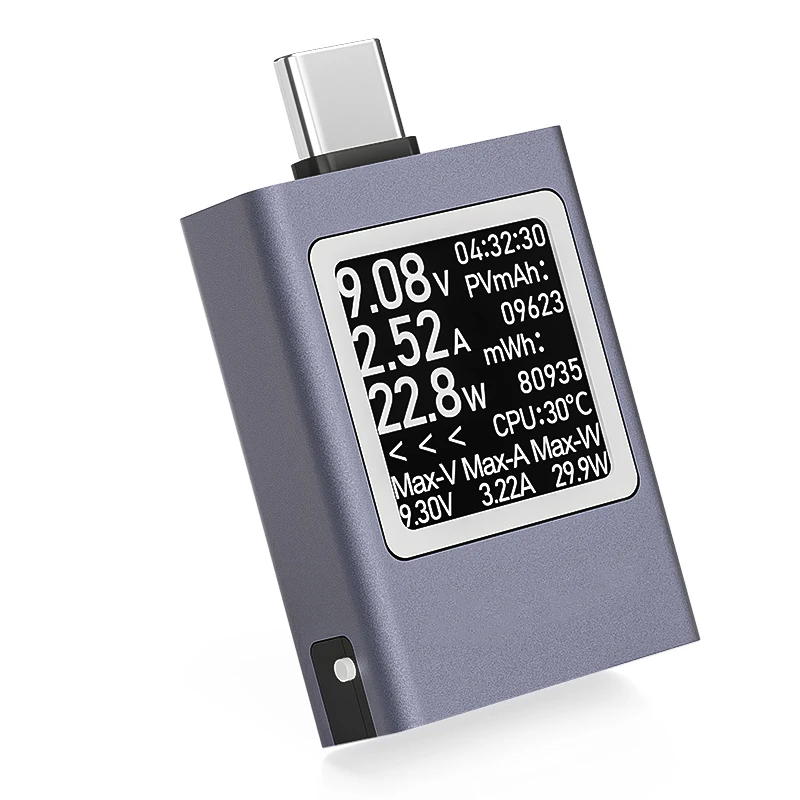

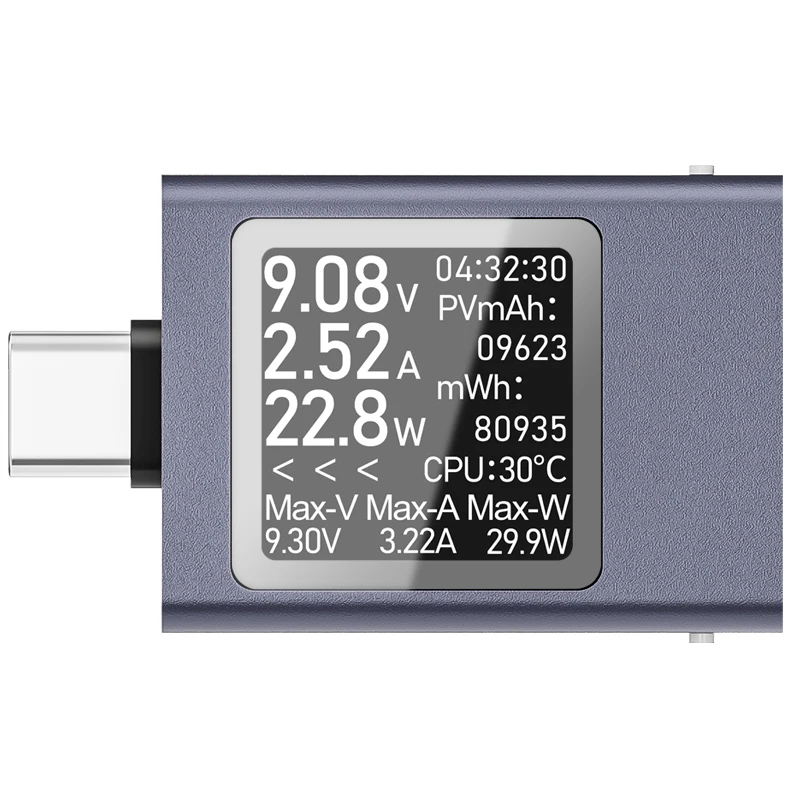

1.Real-Time Monitoring: Experience comprehensive monitoring with this USB C power meter displaying voltage, current, power, quantity, capacity, temperature, and duration in real-time.

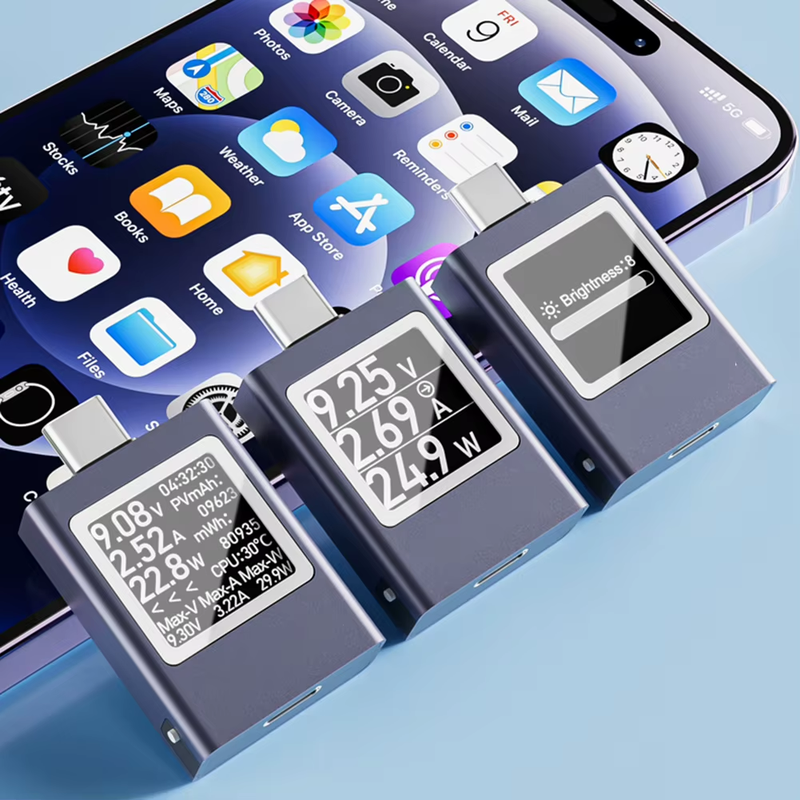

2.Simple Operation: Navigate through different interfaces by clicking a button; reset all data with a long press. The DC voltage ammeter power meter is designed for ease of use, making information immediately visible.

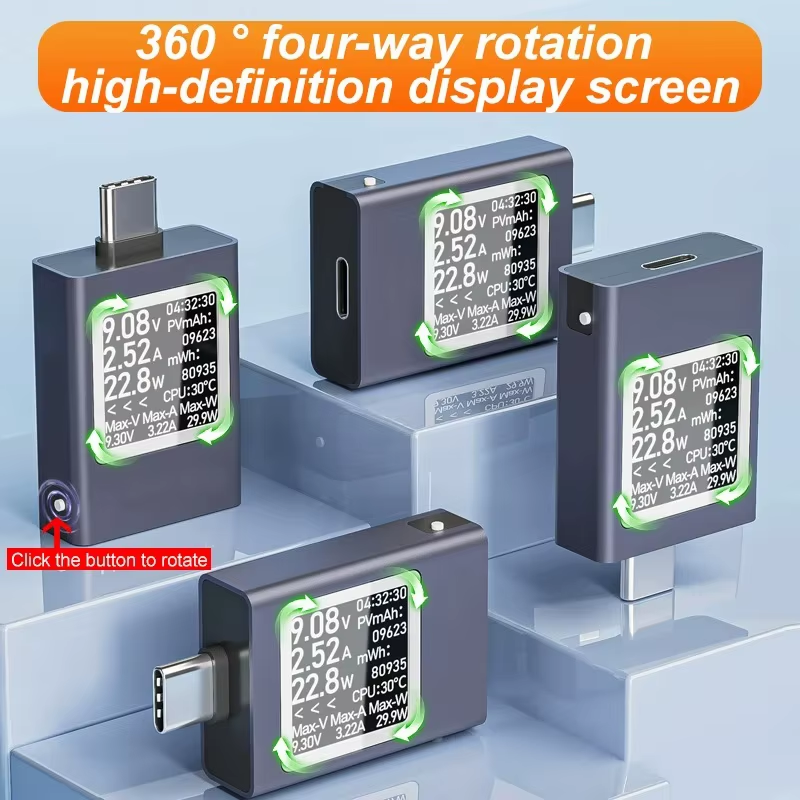

3.Sturdy Design: Built with an aluminum metal shell and a four-way rotatable screen, it combines high and low voltage, high current, and high power capabilities. This type c voltage current tester is sturdy and versatile.

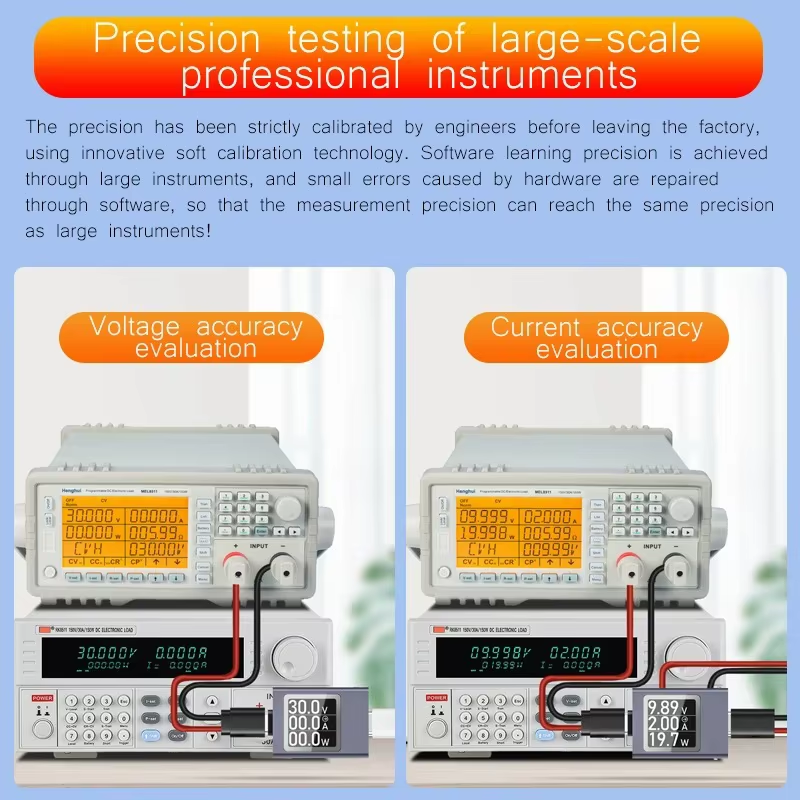

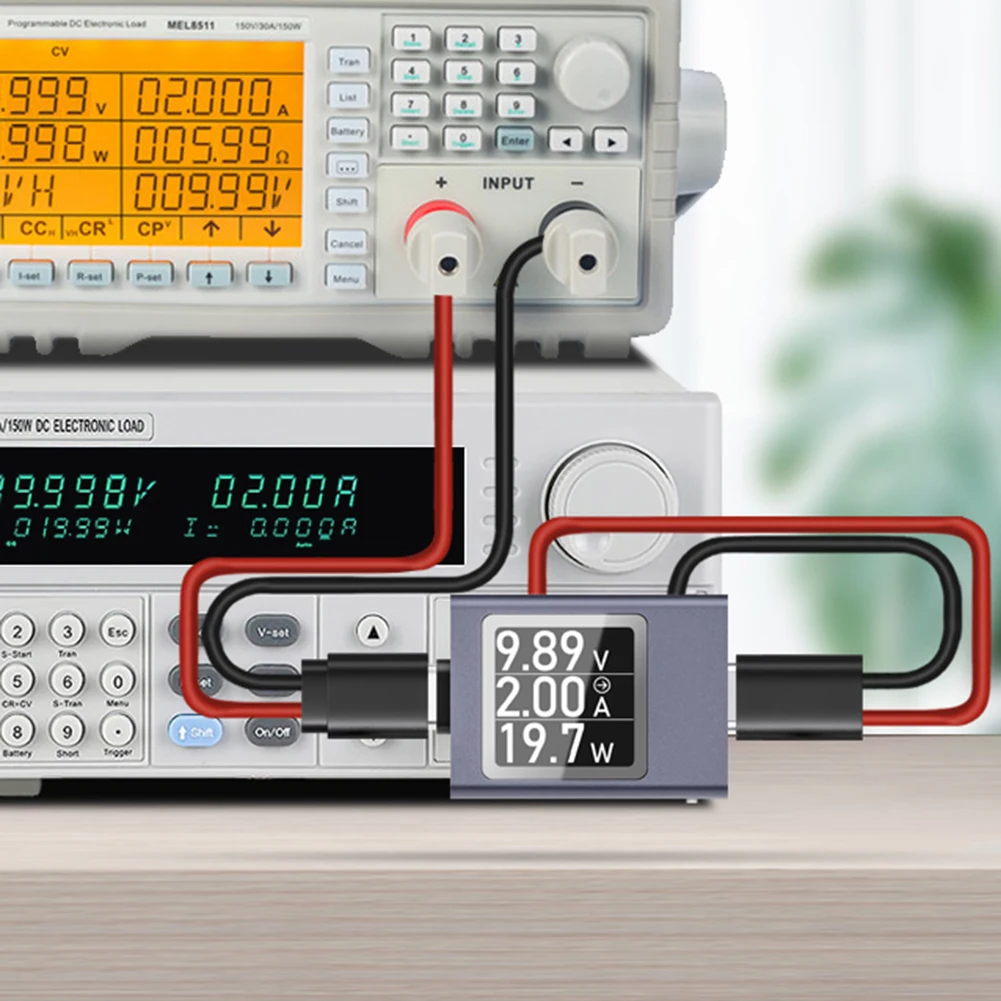

4.Enhanced Accuracy: Features bidirectional current measurement with an independent no-load current reset function, ensuring accurate readings of fine currents with the working time ammeter voltmeter.
5.Memory Functionality: Equipped with power-off memory and data preservation, this USB cable charger detector allows for easy follow-up checks and portable power capacity testing.


Specification:
Origin: Mainland China
Working voltage: DC 4.5~50V
Working current: 0~6A (short-time peak 12A)
Bidirectional current: 12A bidirectional
Power display: 0~600W
Power display: 0~9999Wh
Capacity display: 0~99999mAh
Working temperature: 0~45/32~113
Sampling resistance: 0.001R
Power consumption: <0.15W
Interface type: C male C female
Protocol communication: CC1 CC2 protocol transmission, D+D- data transmission
Temperature measurement: CPU temperature measurement
Power supply mode: 48V full voltage power supply
Capacity calculation: Calculate capacity according to power value
Power chip: DC-DC switching power supply
Control mode: Double-key page turning
Curve function: Not supported
Electrical parameter recording: Real-time recording of voltage, current, and power peak
Display: IPS high-definition color
Gravity sensor: Gravity rotation screen/supports locking direction
Size: 43*25*10mm/1.68*0.98*0.39in

Note:
Due to different monitor settings and lighting conditions, the actual color of the item may vary slightly from the pictures. Thanks for your understanding!
Please allow a 1-2 cm difference in measurements due to manual measuring.

1*USB C Power Meter
