    ZFX-2140A Digital Microcomputer Thermostat 2200W-3500W Temperature Controller Sw

    ZFX-2140A Digital Microcomputer Thermostat 2200W-3500W Temperature Controller Sw

    £18.99 GBP
    £18.99 GBP
    Sale Sold out
    Taxes included. Shipping calculated at checkout.
    ZFX-2140A Digital Microcomputer Thermostat 2200W-3500W Temperature Controller Switch Thermostat EU Plug

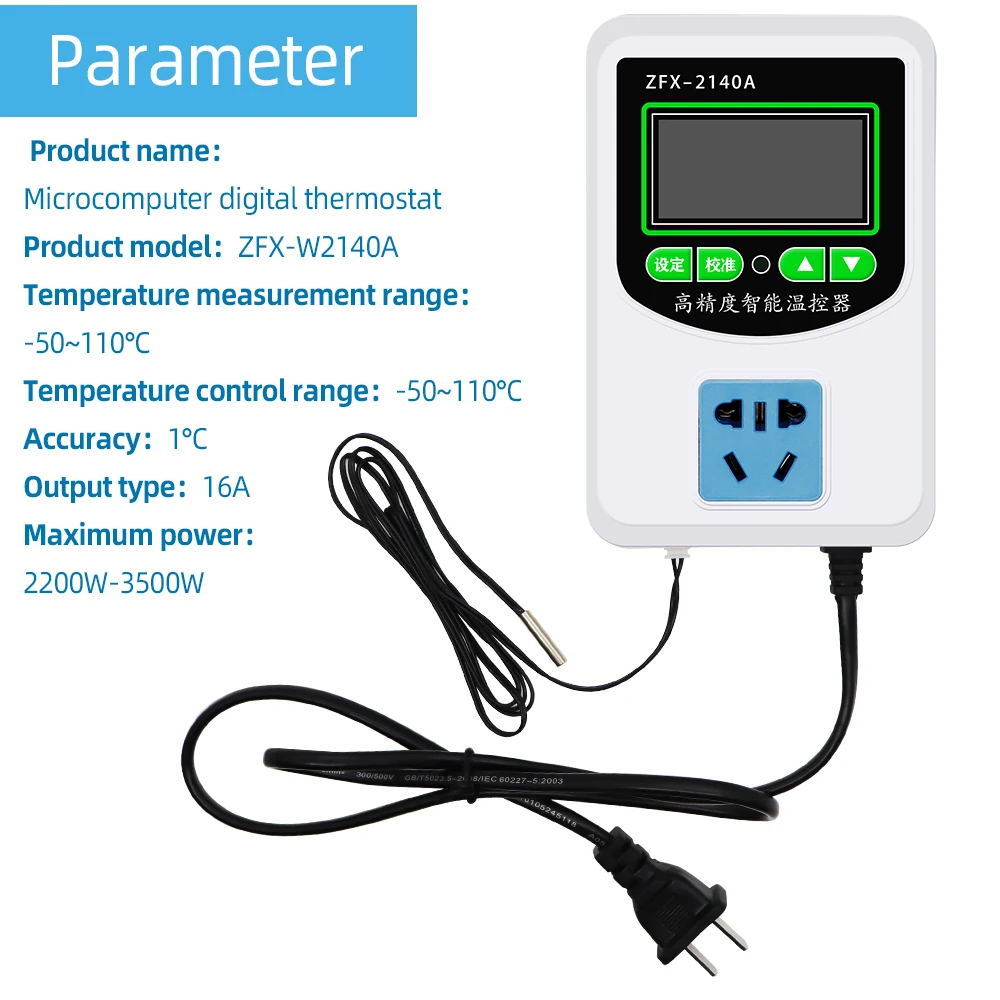

    The main parameters
    Product name: Microcomputer digital thermostat
    Product model: ZFX-2140A
    Measurement input: NTC thermistor L=1.2m
    Input plug: 2 plugs L=1 meter
    Temperature measurement range: -50~110
    Measurement accuracy: 0.1
    Temperature control range: -50~110
    Temperature control accuracy: 0.1
    Output capacity: 16A
    Maximum power: 2200W-3500W
    Appearance size: 148*97*37mm

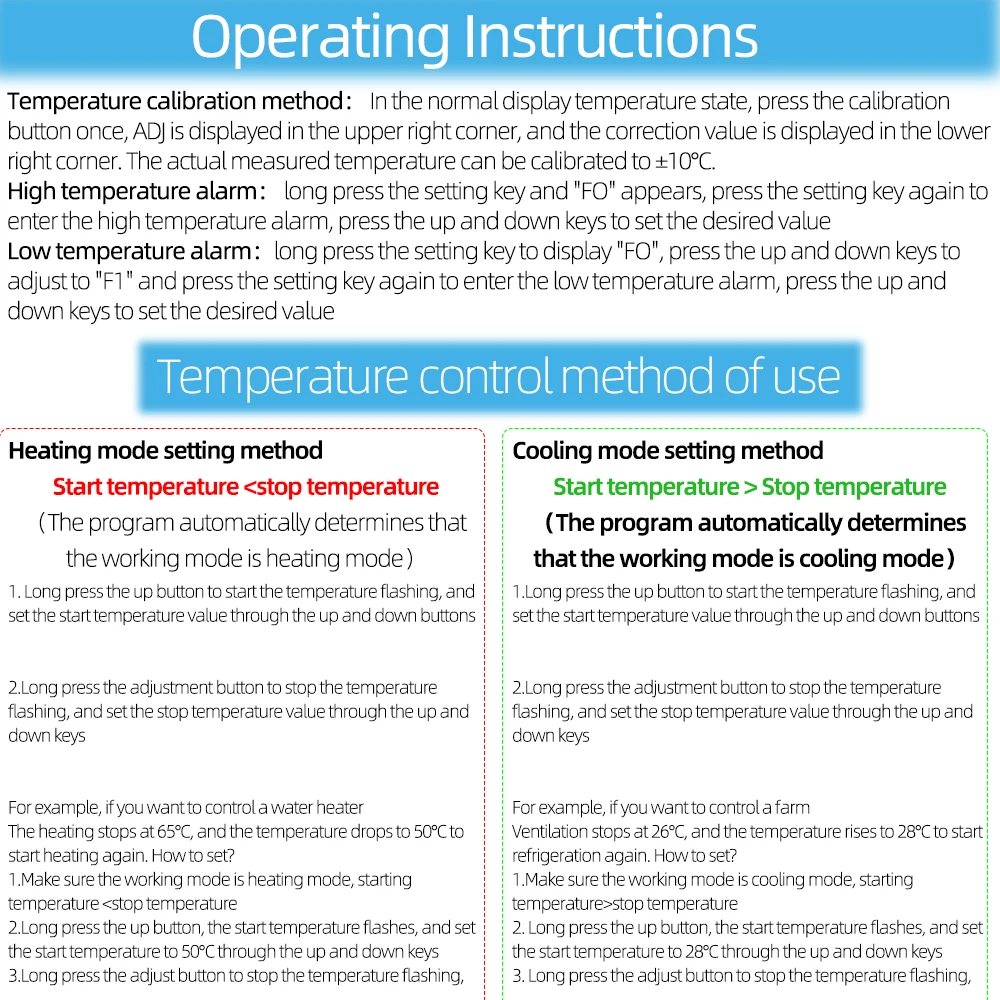

    1. How to use temperature control
    A. Choose the start temperature and stop temperature according to your needs, and the temperature control system will automatically determine the working mode according to the setting.
    B.start temperature> stop temperature, it is cooling mode
    For example, control the temperature of the chicken house to be higher than 30 degrees and start the fan to ventilate.Set the start temperature to 30 degrees and stop to 28 degrees.
    C.start temperature
    For example, control the heating temperature to be lower than 36 degrees to start heating, and stop heating to 37 degrees, set the start to 36 degrees, and the stop to 37 degrees.
    2. Temperature calibration method
    In the normal display temperature state, press the calibration button once, ADJ is displayed in the upper right corner, and the correction value is displayed in the lower right corner. The actual measured temperature can be calibrated to 10C.
    3. High temperature alarm
    Long press the setting key to display F0 and then press the-set key to enter the high temperature alarm, press the up and down keys to set the desired value
    4. Low temperature alarm
    Long press the setting key and "F0" appears, press the up and down keys to adjust to "F1" and press the set key again to enter the low temperature alarm, press the up and down keys to set the desired value
